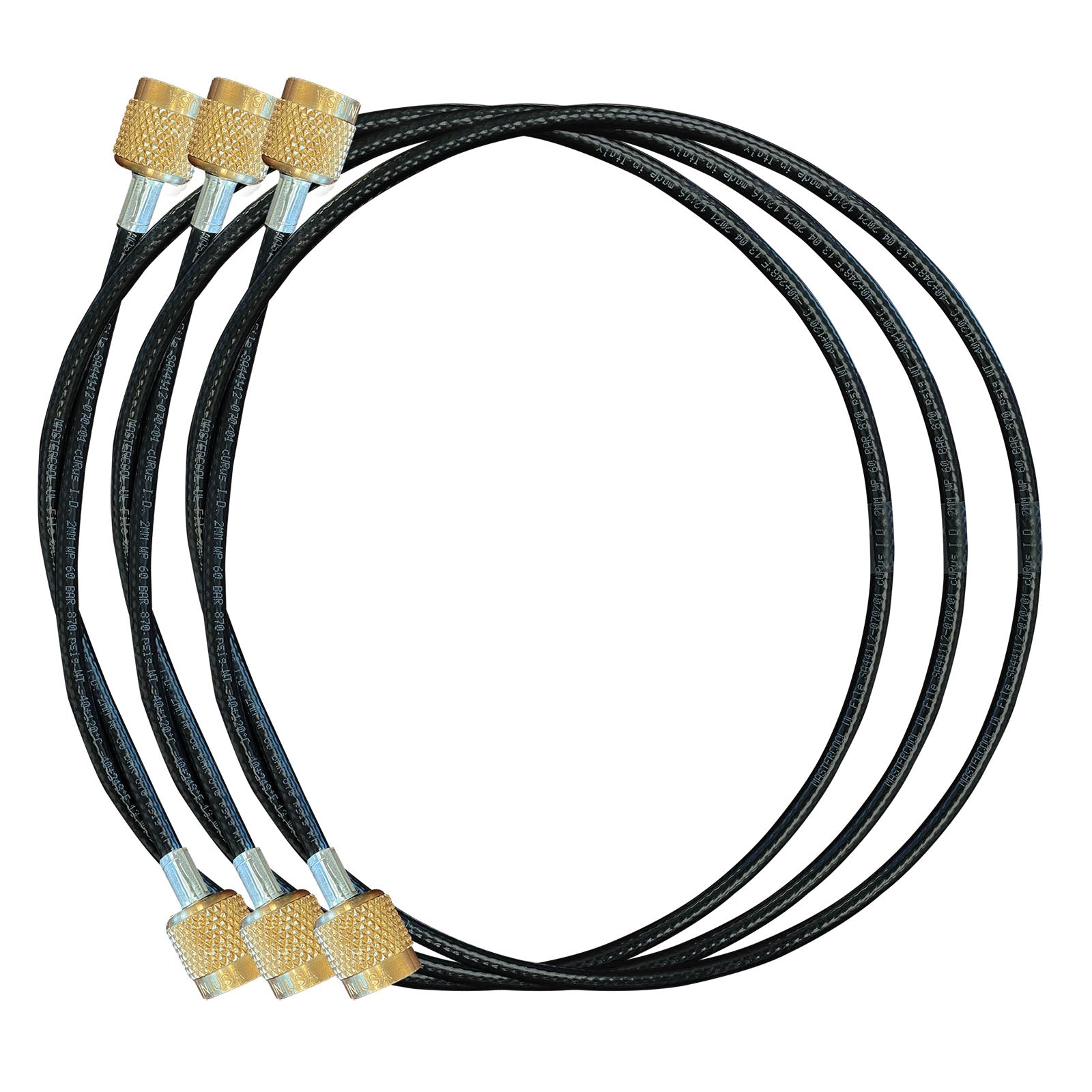

44240-TPC Thermoplastic Service Hose Set 3x24" (600mm) with 1/4" SAE Female Swivel Fittings

Professional set of 3 x 24" (600mm) thermoplastic service hoses with 1/4" SAE female swivel fittings. EN 1736 and ISO 13971 Class 2 certified. Inner diameter 2mm, outer diameter 5.9mm. Max allowable pressure 60 bar (870 psi). Working temperature 120°C. Flexible, chemical-resistant construction for professional HVAC/R service.

Key Features:

• Set of 3 x 24" (600mm) thermoplastic hoses
• 1/4" SAE female swivel fittings
• EN 1736 and ISO 13971 Class 2 certified
• Max pressure: 60 bar (870 psi)
• Working temperature: 120°C
• Temperature range: -40 to 130°C
• Flexible thermoplastic construction
• Chemical resistant
• Professional-grade quality

Specifications:

• Quantity: Set of 3 hoses
• Length: 24" (600mm) each
• Fittings: 1/4" SAE female swivel
• Inner Diameter: 2mm
• Outer Diameter: 5.9mm
• Tolerances: ±0.1mm
• Bending Radius: 10mm
• Max Allowable Pressure: 60 bar (870 psi)
• Working Temperature: 120°C
• Min/Max Temperature: -40 to 130°C
• Weight: 25 g/m
• Standards: EN 1736, ISO 13971 Class 2

Applications:

• Refrigerant service connections
• HVAC system service
• High-temperature applications
• Chemical-resistant applications
• Professional service work

Benefits:

EN 1736 and ISO 13971 Class 2 certification ensures professional-grade quality and safety. Thermoplastic construction provides excellent flexibility (10mm bending radius) and chemical resistance. Swivel fittings prevent hose twisting during use. 60 bar (870 psi) max pressure handles all common refrigerants safely. Wide temperature range (-40 to 130°C) with 120°C working temperature covers extreme conditions. Set of 3 x 24" (600mm) hoses provides complete manifold connection set. 2mm inner diameter with tight ±0.1mm tolerances ensures consistent flow. Essential for professional HVAC/R technicians who demand certified, high-performance service hoses.

Set of 3 x 24" (600mm) thermoplastic hoses. 1/4" SAE female swivel fittings. 60 bar, 120°C working temp. EN 1736, ISO 13971 Class 2 certified. Professional quality.
