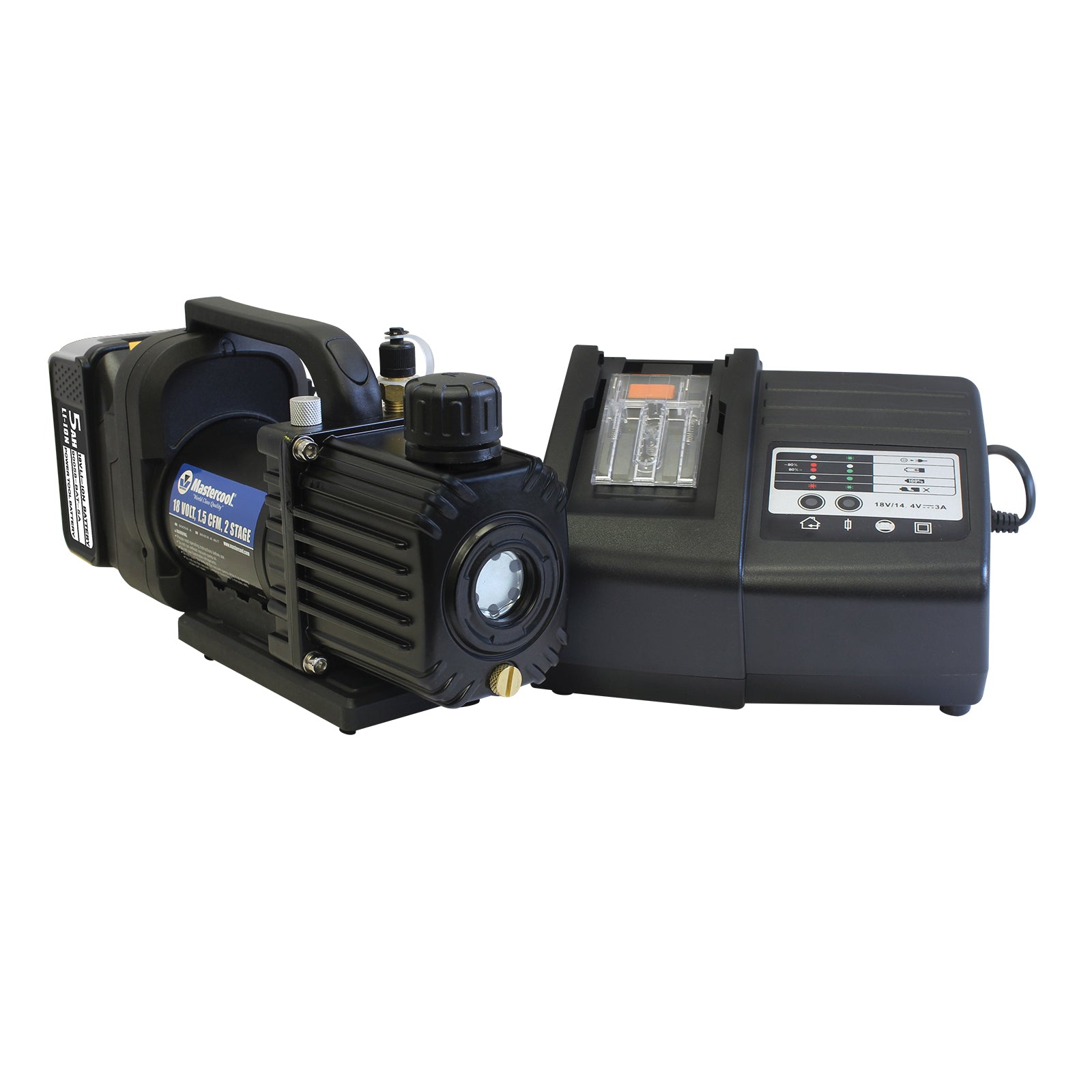

Mastercool 90058-5A-E Cordless 18V Vacuum Pump Complete Kit - 1.5 CFM, 2-Stage

Professional cordless vacuum pump complete kit delivering true portability without compromising performance. 18-volt Li-ion battery-powered operation with 1.5 CFM (42.5 litres/min) capacity and 2-stage design for deep vacuum capability down to 15 microns. Equipped with exclusive oil mist free exhaust port and advanced features for professional mobile HVAC/R service. Complete kit includes pump, Mastercool 5.0 Ah rechargeable battery, adapter sleeve, and 220V Schuko battery charger - everything you need to start working immediately. Work anywhere without the constraints of power cables.

Key Features:

• Cordless 18V Li-ion battery operation
• Free air displacement: 1.5 CFM (42.5 litres/min)
• 2-stage rotary vane design
• Ultimate vacuum: 15 microns / 3 Pa
• DC 18V, 90W motor
• Exclusive oil mist free exhaust port
• Sure-Grip handle, ergonomically designed for superior comfort and portability
• Reinforced base provides extreme shock resistance
• Air cooled motor design allows operation under high temperature conditions
• Runs with extremely high ultimate vacuum and low noise
• Accessible oil drain port and sight glass
• Built-in device eliminates oil mist
• Oil-gas separator at air exhaust outlet prevents oil contamination
• 1/4" SAE port
• Complete kit with battery, charger, and adapter

Specifications:

• Model: 90058-5A-E (Complete kit with 220V Schuko charger)
• Stages: 2-stage rotary vane
• Free Air Displacement: 1.5 CFM (42.5 litres/min)
• Ultimate Vacuum: 15 microns / 3 Pa
• Motor: DC 18V, 90W
• Oil Capacity: 3.5 oz
• Dimensions (without battery): 9.9 x 3.7 x 6.1 inches
• Net Weight: 7.9 lb (3.6 kg)
• Battery: Li-ion 18V 5.0 Ah (Mastercool designed)
• Battery Charger: Input 100-240V, 50-60Hz, 73W / Output: 18V/14.4V 3A
• Inlet Connection: 1/4" SAE port

Complete Kit Contents:

• 18V cordless vacuum pump
• 1/4" SAE port
• Mastercool designed rechargeable battery (18V 5.0 Ah)
• Mastercool adapter sleeve
• 220V Schuko battery charger (European plug)

Applications:

• Mobile HVAC/R service
• Automotive A/C service
• Field installations
• Remote locations without mains power
• Residential service calls
• Emergency repairs
• Rooftop installations
• Outdoor service work
• Marine and RV applications

Benefits:

Complete kit provides everything needed for professional cordless vacuum service - no additional purchases required. True cordless freedom transforms mobile service work. 18V Li-ion battery operation eliminates the need for mains power, extension leads, or generators - work anywhere with complete portability. 1.5 CFM (42.5 litres/min) capacity delivers professional performance despite cordless operation. 2-stage design provides deep vacuum capability down to 15 microns - matching mains-powered pumps. Exclusive oil mist free exhaust port keeps work areas clean and prevents oil contamination. Sure-Grip handle is ergonomically designed for superior comfort during transport and operation. Reinforced base provides extreme shock resistance - essential for mobile service work. Air cooled motor design allows operation under high temperature conditions without overheating. Pump runs with extremely high ultimate vacuum and low noise for professional results. Accessible oil drain port and sight glass make oil maintenance and accuracy easy. Built-in oil-gas separator at air exhaust outlet prevents oil contamination in the air exhaust. Lightweight at just 7.9 lb (3.6 kg) without battery. Compact dimensions (9.9 x 3.7 x 6.1 inches) fit easily in service vehicles and tool bags. Li-ion 18V 5.0 Ah battery provides long runtime and quick recharge. Universal input battery charger (100-240V) works worldwide. 220V Schuko plug for European markets. Professional-grade Mastercool quality in a truly portable package. Complete kit ready to use straight from the box.

Important: Mastercool does not recommend this pump be used with any other battery. Use only Mastercool designed batteries for optimal performance and safety.

Cordless 18V vacuum pump complete kit. 1.5 CFM (42.5 L/min). 2-stage. 15 microns. Includes battery, charger, and adapter. Oil mist free exhaust. Ready to use. European specification.
