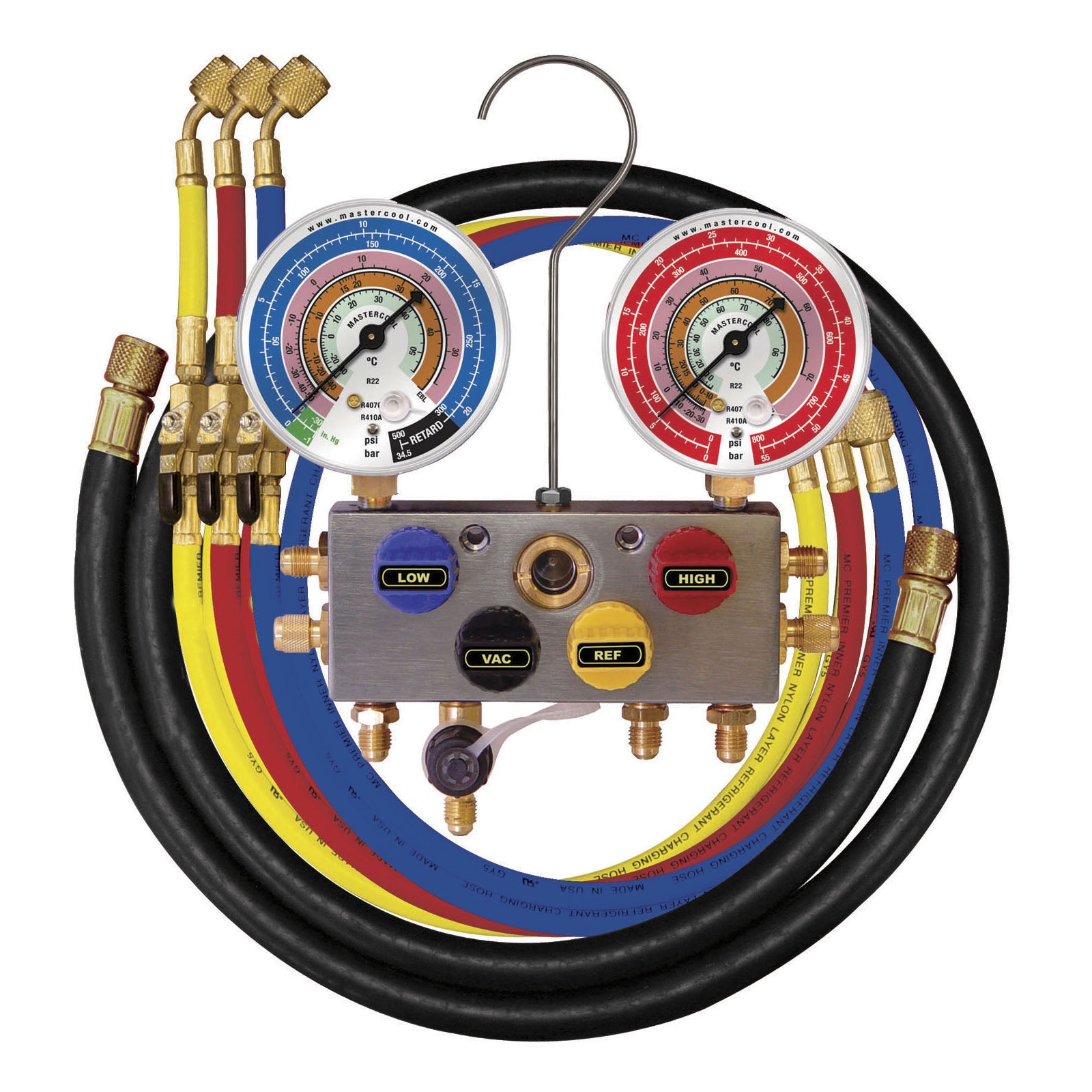

Mastercool 96272-EB - 4-Way Ball Valve Manifold Gauge Set for R410A, R404A, R22 with 180cm Hoses

Please note: Image may not reflect the actual item. Product specifications are as described below.

Mastercool is the leading manufacturer of professional quality A/C manifold gauge sets. Our manifold gauge sets are constructed of the finest materials and machined with precision to the highest quality standards. At Mastercool, every manifold we build is built to last. All Mastercool gauges are colour coordinated for easy refrigerant recognition. Complete kit includes manifold with 80mm gauges (EBH-EBL) with 1.6 gauge class for R410A, R404A, and R22, 3 x 180cm (72") ball valve hoses, and 1 x 180cm (72") black 3/8" vacuum hose, packaged in a blow moulded carrying case.

Key Features:

• Full 3/8" bore through the block increases flow considerably
• Faster charging and recovery
• Ball valve rotates 90° between two Teflon washers
• Opens and closes quickly with only a quarter turn
• Visual knob position quickly indicates if valves are open or closed
• 80mm (2½") gauges / 1.6 gauge class
• Specifically calibrated for R410A, R404A, R22
• Colour coordinated for easy refrigerant recognition
• Includes 3 x 1/4" SAE blue, red, and yellow nylon barrier ball valve hoses with manual shut-off valves
• Includes 1 x 3/8" SAE black vacuum hose
• Blow moulded carrying case included
• Professional-grade quality

Specifications:

• Model: 96272-EB
• Type: 4-way ball valve manifold gauge set
• Refrigerants: R410A, R404A, R22
• Gauges: 80mm (2½") EBH-EBL / 1.6 gauge class (PSI, °F)
• Bore: Full 3/8"
• Valve Type: Ball valve (90° rotation)
• Hoses: 3 x 180cm (72") 1/4" SAE nylon barrier ball valve hoses with manual shut-off valves
• Vacuum Hose: 1 x 180cm (72") 3/8" SAE black vacuum hose
• Case: Blow moulded carrying case

Applications:

• R410A, R404A, R22 system service
• Refrigerant charging and recovery
• HVAC system diagnostics
• Pressure monitoring
• Professional HVAC/R work

Benefits:

Full 3/8" bore through the block increases flow considerably, enabling faster charging and recovery operations. Ball valve rotates 90° between two Teflon washers requiring little effort to turn, even under pressure. Opens and closes quickly with only a quarter turn for efficient operation. Visual knob position quickly indicates whether valves are open or closed for safe operation. 80mm (2½") gauges with 1.6 gauge class provide accurate, easy-to-read measurements for R410A, R404A, and R22 systems. Colour coordinated gauges ensure easy refrigerant recognition. Includes three 1/4" SAE blue, red, and yellow nylon barrier ball valve hoses with manual shut-off valves and one 3/8" SAE black vacuum hose for complete system service. Blow moulded carrying case keeps equipment organised and protected. Essential tool for professional HVAC/R technicians servicing R410A, R404A, and R22 systems. Built to last with Mastercool's commitment to quality.

Optional Accessories:

• To order manifolds with shock resistant gauge protectors, add "-G" after the part number
• Manifolds assembled with Teflon gaskets, add "-T"
• Manifolds assembled with ball valves at the end of hoses, add "-E"

Replacement Parts:

• 95102-R-KIT: O-Ring repair kit for 4-Way Ball Valve Manifold
• 58211: Blue knob
• 58212: Red knob
• 58213: Yellow knob
• 58214: Black knob

4-way ball valve manifold for R410A, R404A, R22. 80mm (2½") gauges. 3/8" bore. 3 x 180cm (72") hoses. Blow moulded case. Professional quality.
