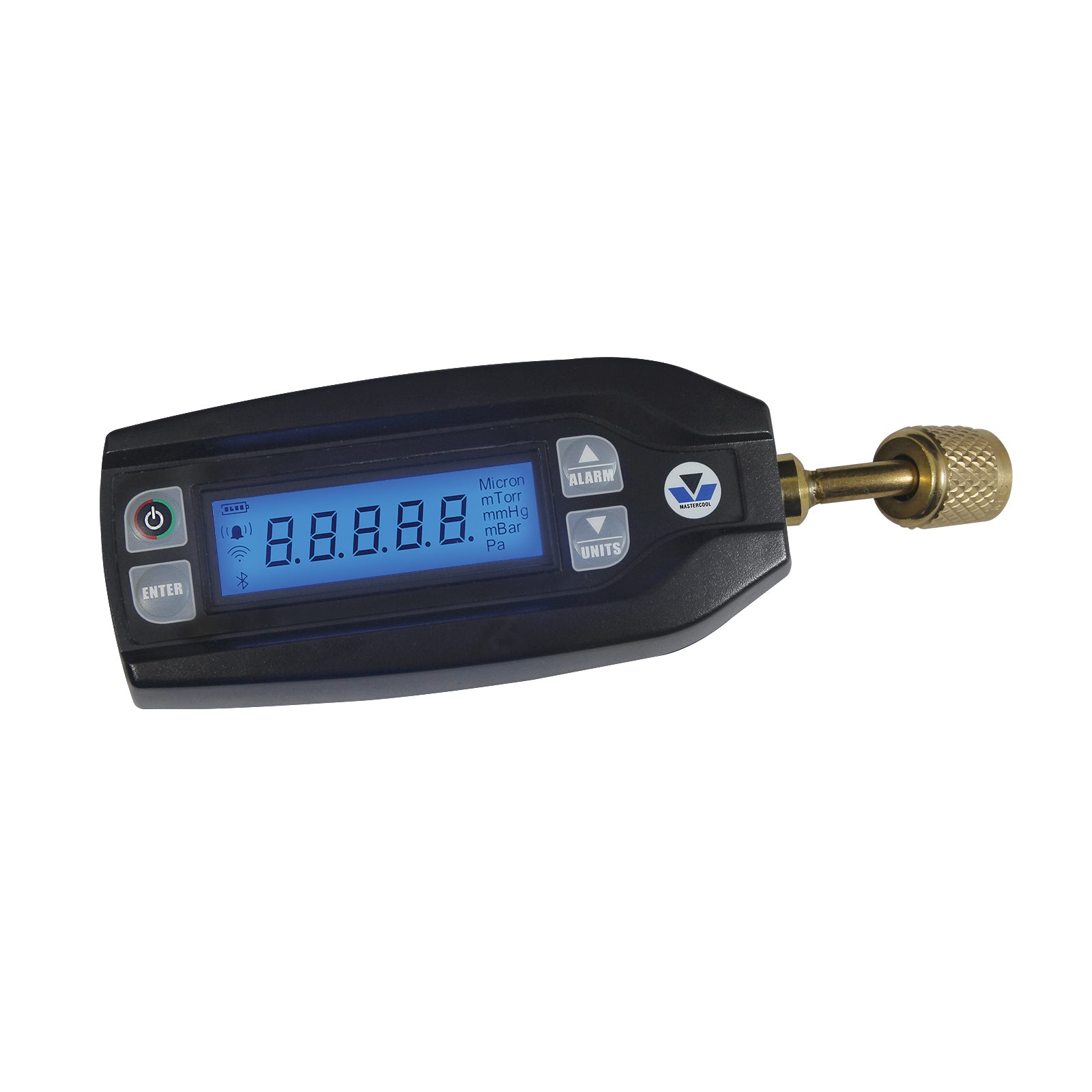

Mastercool 98063-BT - Digital Vacuum Gauge with Bluetooth® Wireless Technology

Mastercool introduces its new compact handheld digital vacuum gauge with Bluetooth wireless technology, combining the most advanced features to provide quick and accurate responses every time. Utilising a state-of-the-art glass-beaded thermistor and temperature compensation, Mastercool offers the latest technology to the HVAC/R technician. Included in this package is the capability to download our free Mastercool Connect app, allowing for full mobility as activity can be easily viewed on all compatible hand-held smart devices.

Key Features:

• Bluetooth® wireless technology for smart device connectivity
• 5-digit LCD screen with ultra-vibrant blue backlight
• Glass bead thermistor sensor with temperature compensation
• Sintered bronze inlet filter protects the sensor
• Chemical resistant sensor for ease of cleaning
• Audio and visual alarm with user adjustable set point
• Field calibration capability
• Range: 20,000 to 1 micron
• 260' (80m) maximum line-of-sight Bluetooth® range
• 100+ hours battery life
• Free Mastercool Connect app

Specifications:

• Model: 98063-BT
• Sensor: Glass bead thermistor with temperature compensation
• Connection Fitting: 1/4" SAE F-FL with stem depressor
• Operating Temperature: 0 to 45°C (32 to 120°F)
• Vacuum Units: Micron, Torr, mTorr, mmHg, mBar, Pa
• Range: 20,000 to 1 micron
• Accuracy: ±10% of reading (from 10,000 to 100 microns)
• Proof Pressure: 450 psi
• Auto-Off: Automatic after 10 minutes, blue backlight after 3 minutes
• Power: 2 AA batteries (included)
• Battery Life: 100+ continuous hours (depending on backlight use)
• Weight: 0.13 kg without batteries / 0.23 kg with batteries
• Dimensions: 50mm x 160mm x 36mm (1.9" x 6.3" x 1.4")
• Bluetooth®: 4.2 and 5, 80m (260') maximum line-of-sight range

Applications:

• System evacuation monitoring
• Vacuum pump performance testing
• Leak detection
• HVAC/R system service
• Professional refrigeration work
• Remote monitoring via smart devices

Benefits:

Bluetooth® wireless technology provides communication to hand-held smart devices through the free Mastercool Connect app, allowing full mobility and easy viewing of vacuum levels from anywhere within 80m range. 5-digit LCD screen features an ultra-vibrant blue backlight allowing for easy readability in dark environments. Glass bead thermistor with temperature compensation ensures accurate readings. Sintered bronze inlet filter protects the sensor from contamination. Chemical resistant sensor allows for ease of cleaning. Audio and visual alarm alerts when vacuum goes below a user adjustable set point. Field calibration capability ensures continued accuracy. Low battery icon displayed on the LCD indicates when batteries need replacement. 100+ hours battery life ensures extended operation. Essential tool for professional HVAC/R technicians who demand accuracy and convenience.

Optional Accessories:

99333: 1/4" FL-M x 1/4" FL-M x 1/4" FL-F Tee

Digital vacuum gauge with Bluetooth®. 20,000 to 1 micron range. Free Mastercool Connect app. 80m wireless range. 100+ hours battery life. Professional quality.
