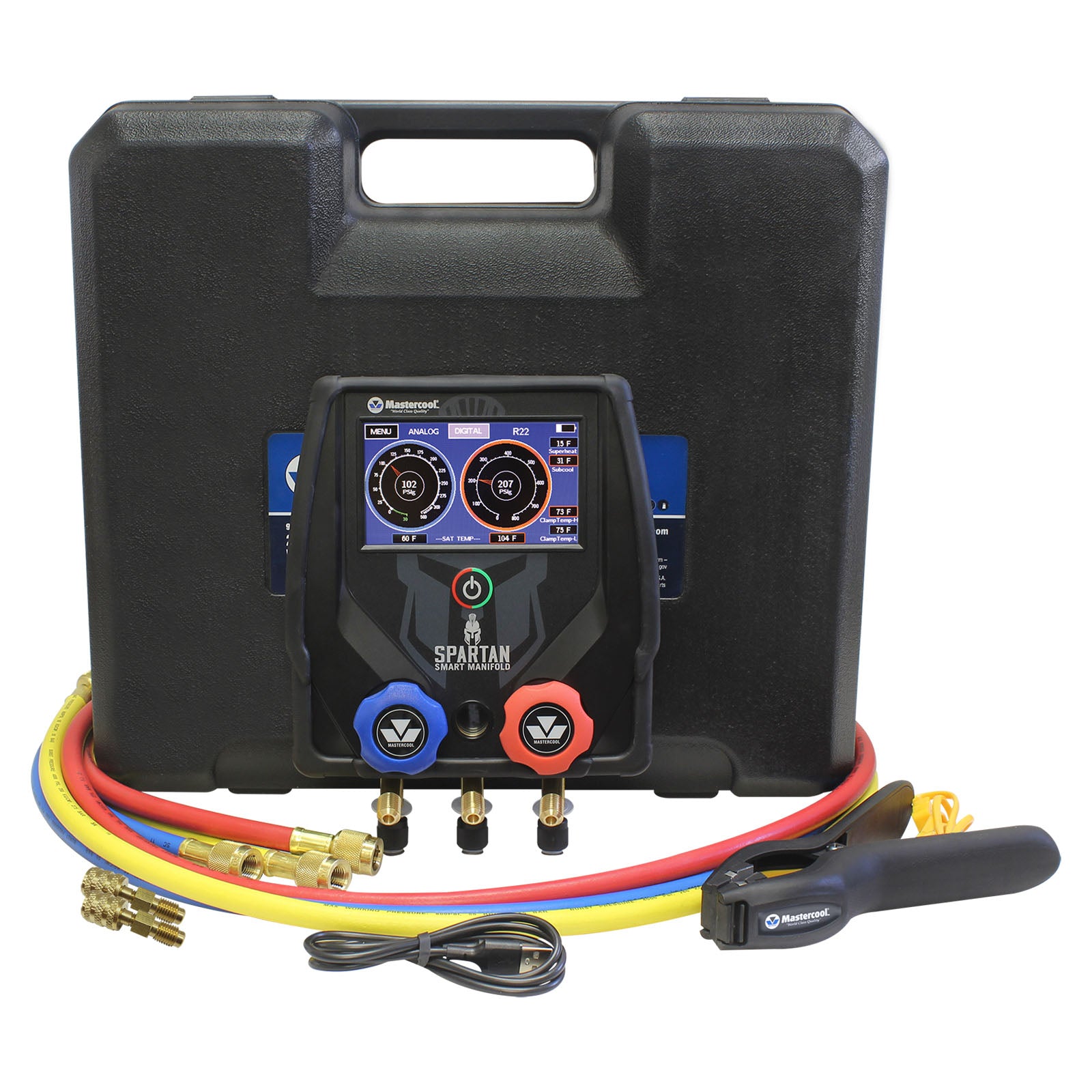

Mastercool 99926-BT SPARTAN Digital 2-Way Manifold with 150cm Hoses and Temperature Clamp

Join the SPARTAN revolution. Mastercool's SPARTAN series innovative manifold with Bluetooth® wireless technology is equipped with a 4.3" colour touchscreen LCD, allowing you to navigate through all screens and options with a quick slide of your finger. Premium built-in vacuum sensor with accuracy down to 1 micron - no need for additional equipment to properly diagnose and service A/C systems. Displays pressure, vacuum, temperature, and automatically calculates superheat and subcool. Includes data logging and features, leak test timers, and alarms. Compatible with the Mastercool Connect app for complete mobility. Over 60 pre-programmed refrigerants, including R1234yf. Complete set includes 60" (150cm) high-pressure hoses with standard fittings and one premium temperature clamp.

Key Features:

• SPARTAN 2-way digital manifold
• 4.3" colour touchscreen LCD
• Navigate with a quick slide of the finger
• Premium built-in vacuum sensor (1 micron resolution)
• Bluetooth® wireless technology
• Displays pressure, vacuum, and temperature
• Automatically calculates superheat and subcool
• Over 60 pre-programmed refrigerants (including R1234yf)
• Data logging up to 36 hours
• Leak test timers and alarms
• Mastercool Connect app is compatible
• 30-36 hours of battery life
• Class 1.0 gauge accuracy
• Includes 60" (150cm) high-pressure hoses
• Standard fittings
• Contains one premium temperature clamp (K-type)

Included Refrigerants:

R12, R22, R23, R32, R113, R114, R115, R116, R123, R1234yf, R1234ez, R1270, R124, R134, R134a, R141b, R142b, R143, R143a, R152a, R170, R227ea, R290, R401A, R401B, R404A, R407A, R407B, R407C, R407D, R407F, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R417A, R422A, R422B, R422C, R422D, R427A, R434A, R437A, R438A, R441A, R443A, R448A, R449A, R452A, R452B, R454B, R455A, R456A, R501, R502, R503, R504, R507A, R508B, R509A, R513A, R514A, R600, R600a, R601a, R601A, R744

Specifications:

• Model: 99926-BT
• Type: 2-way digital manifold
• Display: 4.3" colour touchscreen LCD
• Gauge: Class 1.0
• Pressure Display: psi, bar, MPa, kg/cm2, kPa
• Temperature Display: °F or °C
• Deep Vacuum Display: micron, mBar, kPa, Pa, Torr
• Sensing Resolution: 1 psi (.07 bar, .007 MPa, .07 kg/cm2)
• Sensing Accuracy: ±1 psi or 1% of reading
• Working Pressure: 0 to 725 psi (50 bar, 5 MPa, 52 kg/cm2)
• Proof Pressure: 1000 psi (70 bar, 7 MPa, 70 kg/cm2)
• Vacuum Sensor Range: 20,000 to 1 micron
• Refrigerant Temperature Range: -40 to 200°F (-40 to 93°C)
• Operating Temperature: 32 to 122°F (0 to 45°C)
• Temperature Accuracy: ±1°F (±0.5°C) between 32 to 160°F
• Connections: 1/4" m-flare
• Battery: Li-Ion rechargeable (USB Type C charging)
• Battery Life: 30-36 hours (25-30 hours with Bluetooth)
• Auto-Off: 30 minutes, sleep mode 4 minutes
• Data Logging: Up to 36 hours
• Bluetooth: 260' (80m) range, Bluetooth 4.2 and 5
• Hoses: 60" (150cm) high-pressure with standard fittings
• Includes: 1 premium temperature clamp (K-type connector)

Applications:

• Professional automotive A/C diagnostics
• HVAC system service
• Refrigerant charging and recovery
• Vacuum leak testing
• Superheat and subcool calculations

Benefits:

Join the SPARTAN revolution and move into the future of A/C diagnostics. Class 1.0 gauge provides accurate, high-quality readings. 4.3" colour touchscreen allows navigation with a quick slide of your finger. Premium built-in vacuum sensor with 1-micron resolution eliminates the need for additional equipment. Displays pressure, vacuum, temperature, and automatically calculates superheat and subcool—over 60 pre-programmed refrigerants including R1234yf. Bluetooth wireless technology enables communication with the Mastercool Connect app, providing full mobility and allowing you to view activity on all compatible handheld devices. Record and store up to 36 hours of data. The pressure leak test function displays the delta for both vacuum and positive pressure. Easily switch between digital and analogue depictions. 30-36 hours of battery life. Complete set includes 60" (150cm) high-pressure hoses with standard fittings and one premium temperature clamp with K-type connector. Ready to use straight out of the box.

SPARTAN 2-way digital manifold with 150cm hoses and temperature clamp. 4.3" touchscreen. Built-in vacuum sensor (1 micron). Bluetooth app compatible. 60+ refrigerants including R1234yf. Complete set.
