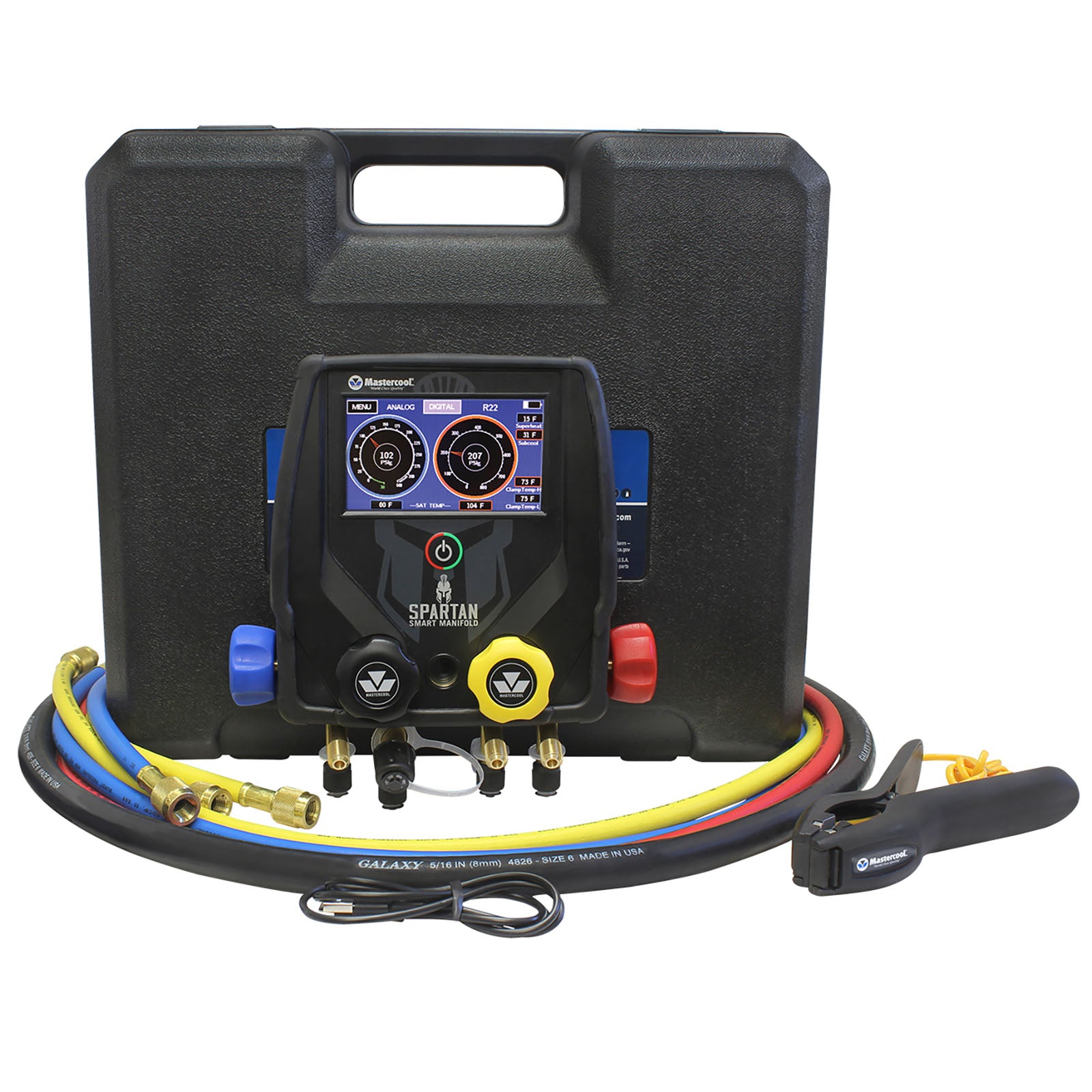

Mastercool 99946-BT - SPARTAN 4-Way Smart Manifold with 60" Hoses, Vacuum Hose, and Temperature Clamp

Mastercool's Spartan series smart manifold features Bluetooth wireless technology. This smart manifold is equipped with a 4.3" colour touchscreen LCD, allowing the user to navigate through all of the screens and options with a quick slide of their finger. Now with a built-in premium vacuum sensor and an accuracy down to 1 micron, there is no need for additional equipment to properly diagnose and service your A/C system. Join the Spartan revolution and move with us into the future of A/C diagnostics and service.

Key Features:

• 4.3" colour touchscreen LCD
• Class 1.0 gauge for accurate, high-quality readings
• Premium built-in vacuum sensor (resolution down to 1 micron)
• Displays pressure, vacuum, temperature
• Automatically calculates superheat and subcool
• Over 60 pre-programmed refrigerants
• Bluetooth® wireless technology with Mastercool Connect app
• Record and store up to 36 hours of data
• Pressure leak test function
• Li-Ion rechargeable battery (30-36 hours battery life)
• Includes: 60" (150cm) high-pressure hoses, black vacuum hose, temperature clamp, plastic case

Included Refrigerants (60+):

R12, R22, R23, R32, R113, R114, R115, R116, R123, R1234yf, R1234ez, R1270, R124, R134, R134a, R141b, R142b, R143, R143a, R152a, R170, R227ea, R290, R401A, R401B, R404A, R407A, R407B, R407C, R407D, R407F, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R417A, R422A, R422B, R422C, R422D, R427A, R434A, R437A, R438A, R441A, R443A, R448A, R449A, R452A, R452B, R454B, R455A, R456A, R501, R502, R503, R504, R507A, R508B, R509A, R513A, R514A, R600, R600a, R601a, R601A, R744

Specifications:

• Model: 99946-BT
• Gauge: Class 1.0
• Pressure Display: psi, bar, MPa, kg/cm², kPa
• Temperature Display: °F or °C
• Deep Vacuum Display: micron, mBar, kPa, Pa, Torr
• Sensing Resolution: 1 psi (0.07 bar, 0.007 MPa, 0.07 kg/cm²)
• Sensing Accuracy: ±1 psi or 1% of reading (whichever is greater)
• Working Pressure: 0 to 725 psi (50 bar, 5 MPa, 52 kg/cm²)
• Proof Pressure: 1000 psi (70 bar, 7 MPa, 70 kg/cm²)
• Refrigerant Temperature Range: -40 to 93°C (-40 to 200°F)
• Operating Temperature: 0 to 45°C (32 to 122°F)
• Temperature Accuracy: ±0.5°C (±1°F) between 0 to 71°C (32 to 160°F)
• Storage Temperature: -12 to 49°C (10 to 120°F)
• Vacuum Sensor Range: 20,000 to 1 micron
• Connections: 1/4" m-flare and 3/8" m-fl (vacuum hose connection)
• Power: Li-Ion rechargeable battery (USB Type-C charging)
• Battery Life: 30-36 hours normal use (25-30 hours with Bluetooth enabled)
• Auto-Off: After 30 minutes, sleep mode after 4 minutes
• Data Logging: Up to 36 hours
• Bluetooth®: 4.2 and 5, 80m (260') maximum line-of-sight range
• Hose Length: 60" (150cm) high-pressure hoses with standard fittings
• Includes: Black vacuum hose, temperature clamp, plastic case

Applications:

• HVAC/R system diagnostics and service
• Refrigerant charging and recovery
• Superheat and subcool calculations
• Vacuum testing and leak detection
• Multi-refrigerant service work
• Professional A/C service

Benefits:

4.3" colour touchscreen LCD allows easy navigation with a quick slide of your finger. Premium built-in vacuum sensor with resolution down to 1 micron eliminates the need for additional equipment. Automatically calculates superheat and subcool temperatures for faster diagnostics. Over 60 pre-programmed refrigerants ensure compatibility with virtually any system. Bluetooth® wireless technology provides communication with the free Mastercool Connect app, allowing full mobility as activity can be easily viewed on all compatible hand-held devices within 80m range. Record and store up to 36 hours of data to manifold memory for comprehensive diagnostics. Pressure leak test function displays delta for both vacuum and positive pressure measurements. Easily switch between digital and analogue depictions of pressure and temperature. Li-Ion rechargeable battery provides 30-36 hours of operation. Complete kit includes 60" (150cm) high-pressure hoses with standard fittings, black vacuum hose, temperature clamp, and protective plastic case. Essential tool for professional HVAC/R technicians who demand accuracy, versatility, and convenience.

SPARTAN 4-way smart manifold with Bluetooth®. 4.3" touchscreen. Built-in vacuum sensor (1 micron). 60+ refrigerants. 36 hours data logging. 60" hoses, vacuum hose, clamp, case included.
