Mastercool 52255 Air Conditioning System Analyser.

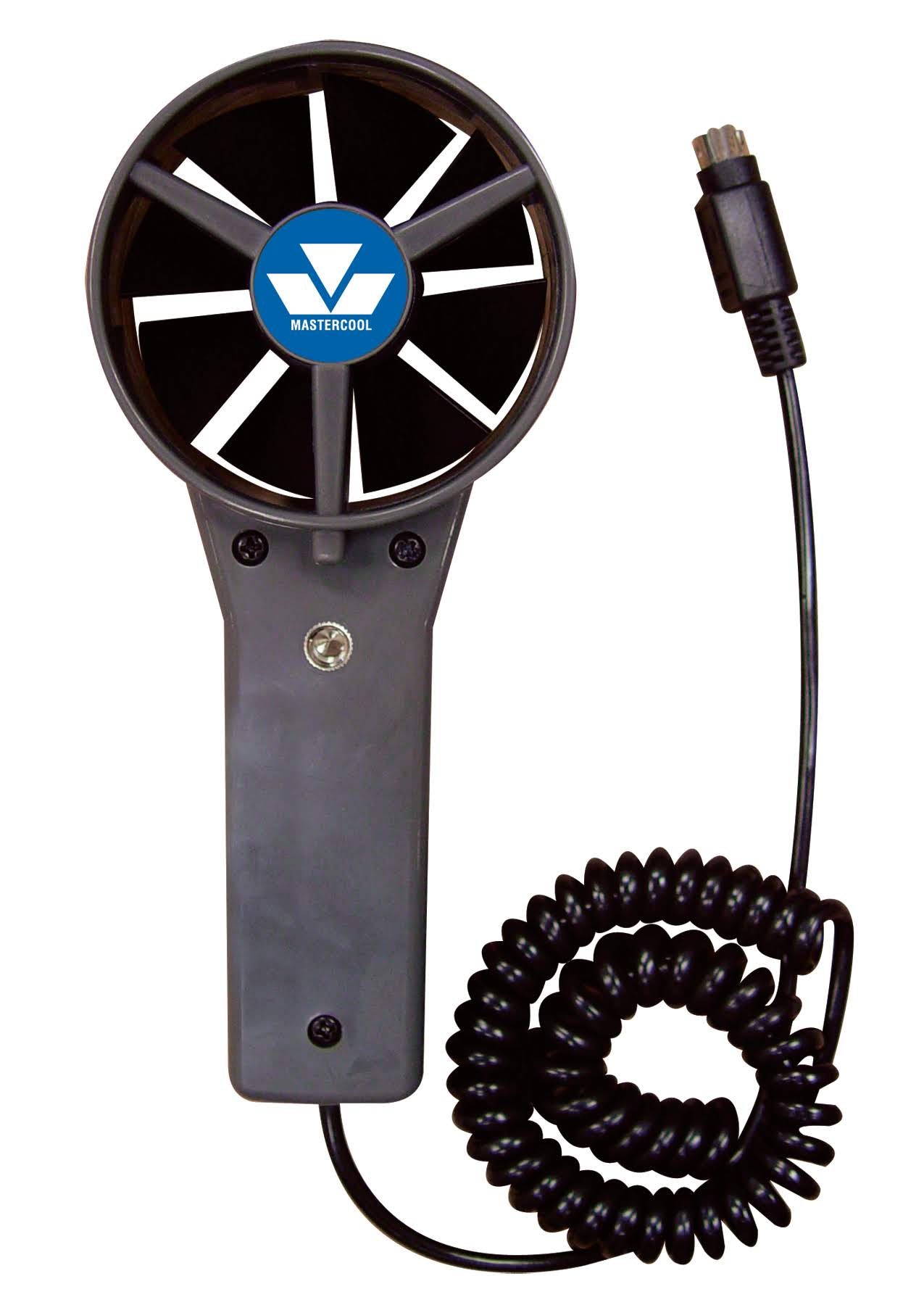

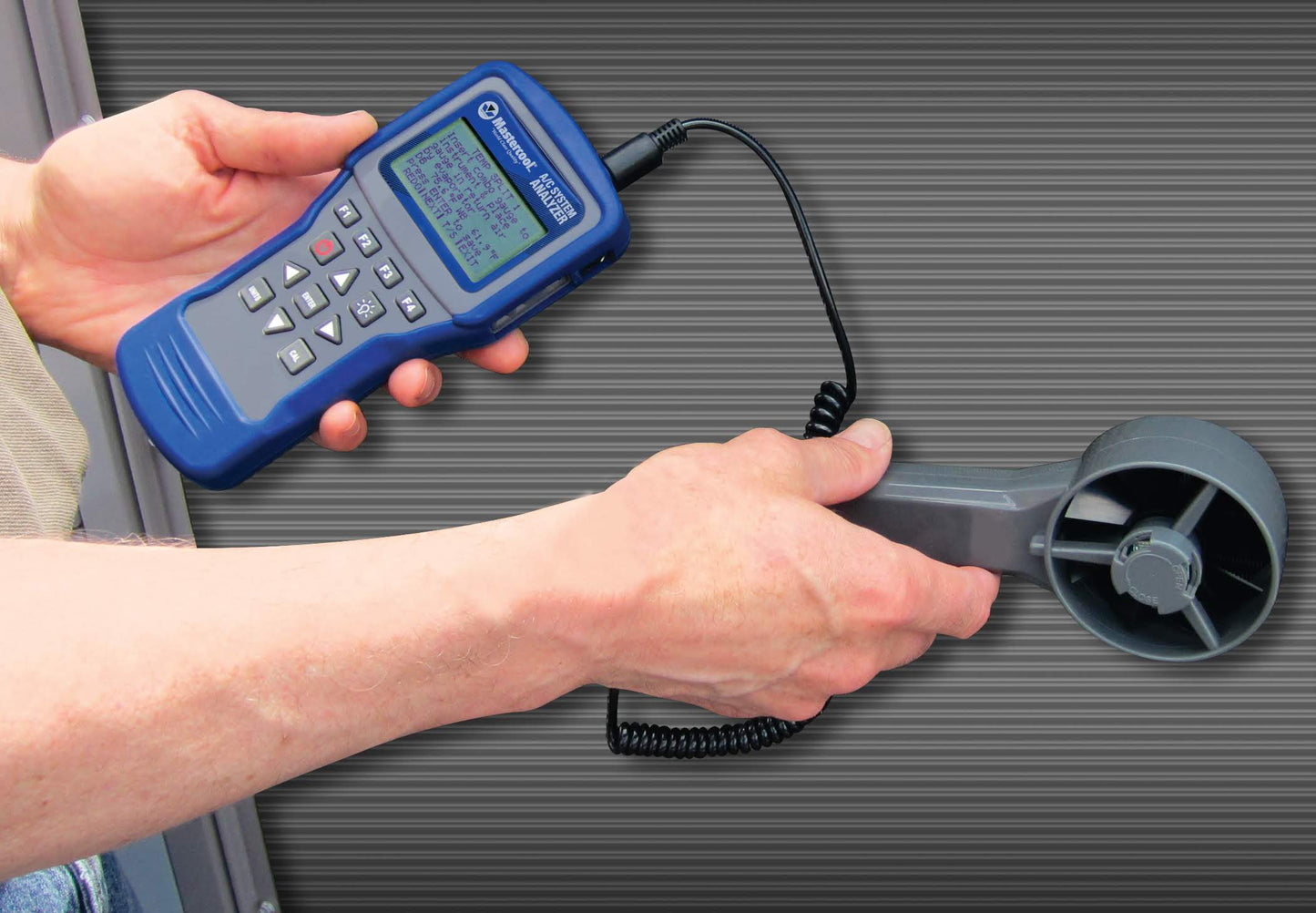

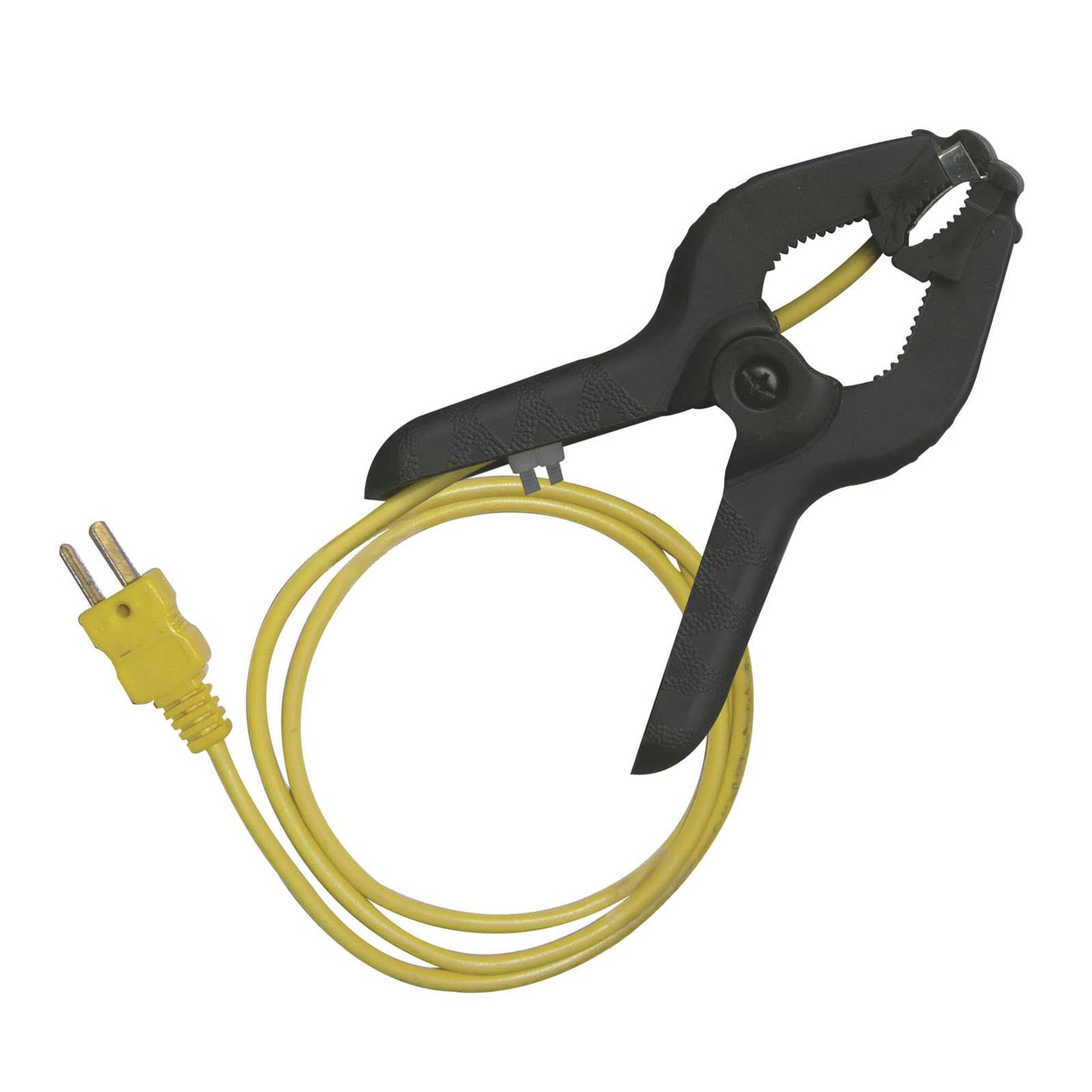

Includes A/C System Analyzer (52251), Round Vane (52253), 3 ft. Clamp-on Thermocouple (52336). A/C System Analyzer Kits are packaged in a blow-moldedhttps://youtu.be/4VIzy3L0I5Q?si=9h0R-FUb2Jj0WZii box.

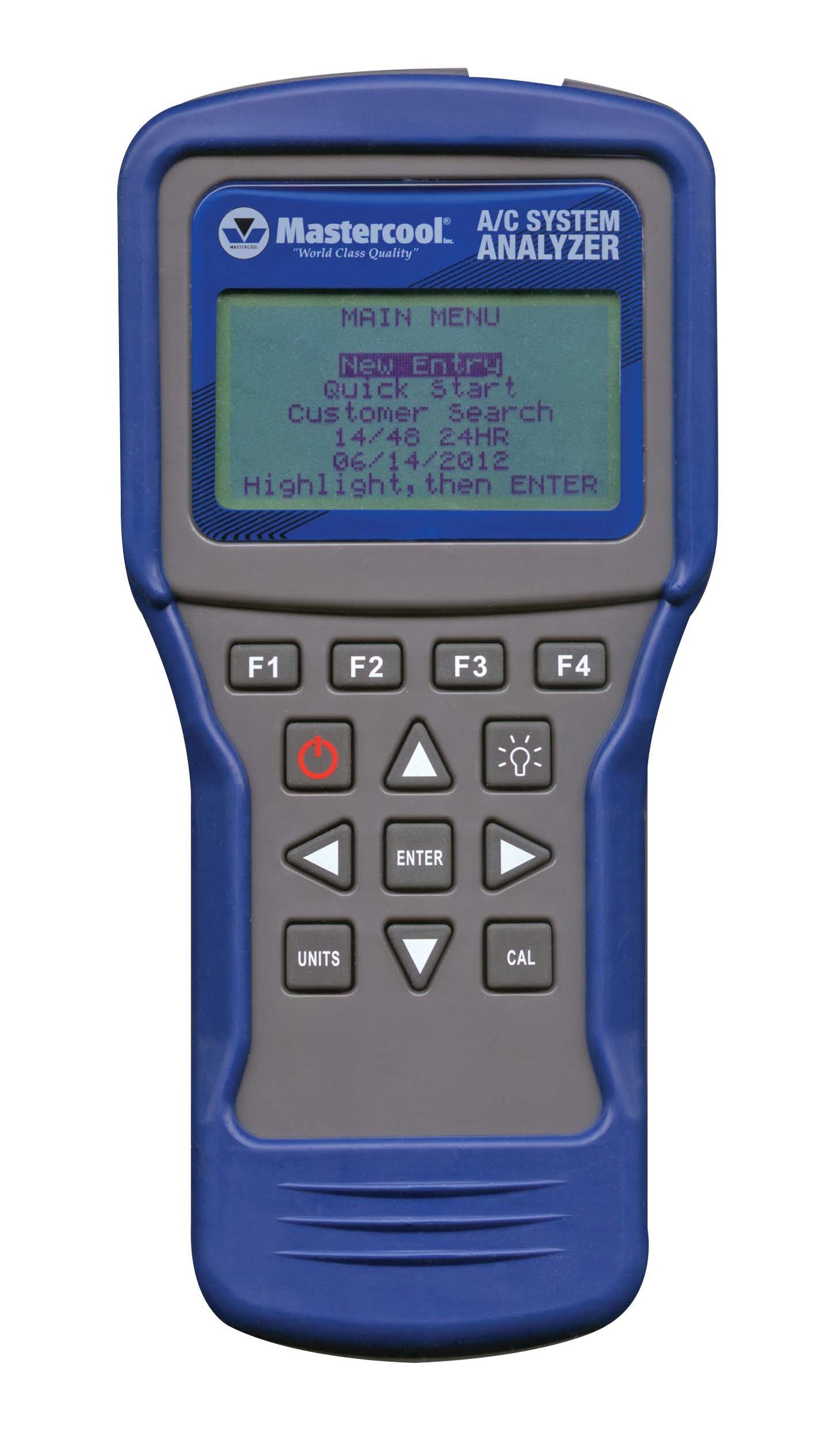

Mastercool’s new A/C System Analyzer is an all-in-one tool that calculates critical information for the air conditioning system and diagnoses basic system problems. The LCD leads the technician through basic tests, making service quicker and less complicated. The A/C System Analyzer can calculate Actual Superheat, Subcool, Target Superheat, Temperature Split, Dry Bulb, Wet Bulb, Relative Humidity, Dew Point, Air Velocity and Air Flow Volume.

The A/C System Analyzer easily guides the technician in determining if the refrigerant charge is correct. No calculations or charts are needed. Test results can be easily saved under a customer and technician name and even downloaded for future reference.

Calculates actual superheat and subcool temperatures for the following refrigerants: R22, R114, R123, R124, R134a, R141, R142, R401A, R401B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R411A, R411B, R414A, R414B, R417A, R507A
It provides all the functions of a high-end anemometer: airflow volume, air velocity, dry bulb temperature, wet bulb temperature, relative humidity and dew point
Save results and download them in Excel format for future use
Optional Pressure Transducer for direct system readings

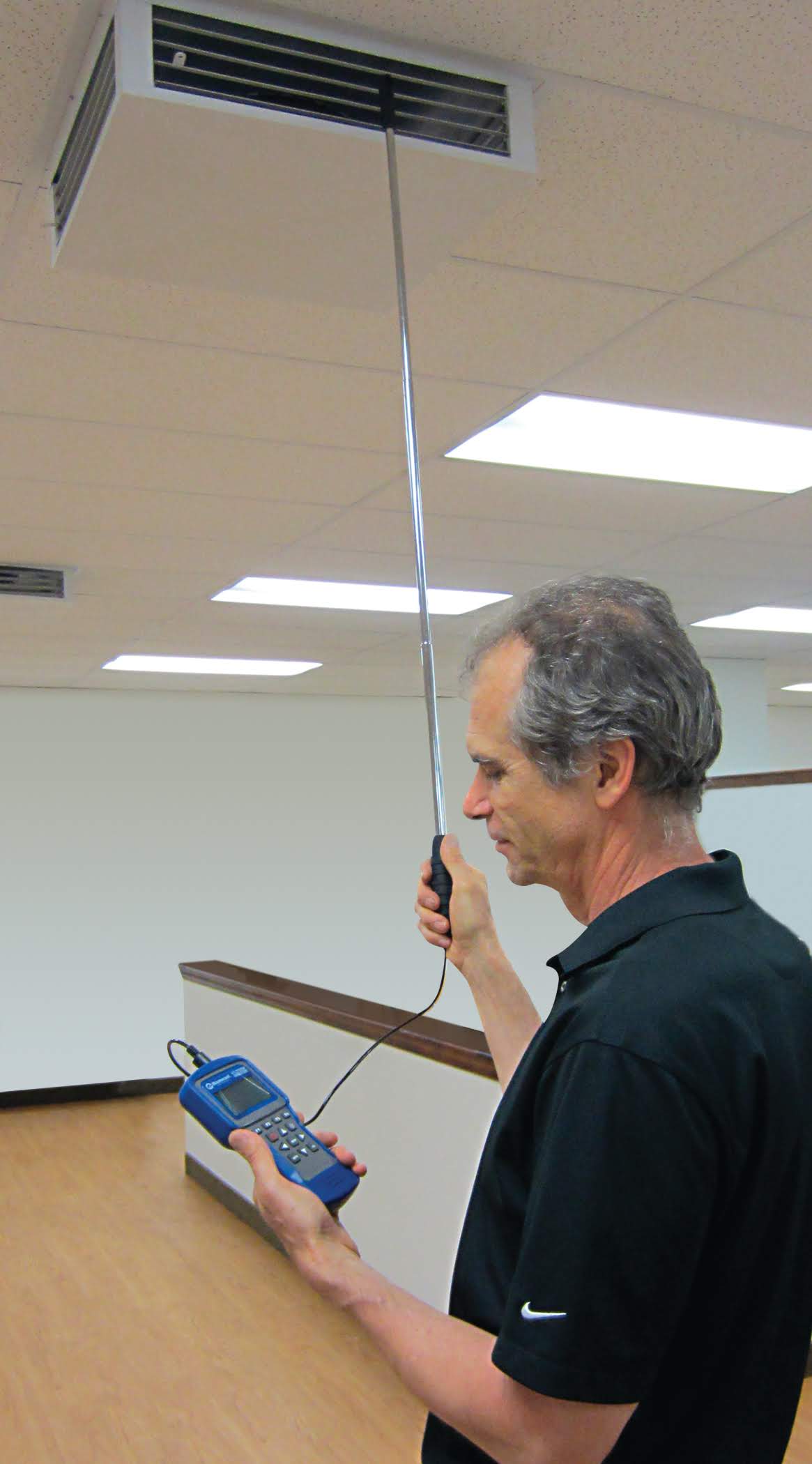

Optional Antenna Type Meter for any hard-to-reach locations

SPECIFICATIONS:

• Operating Temperature: 0 to 50˚C (32 to 122˚F), humidity <80%
• Storage Temperature: -20 to 50˚C (-4 to 122˚F), humidity <90%
• Dimensions with boot: 191mm x 93mm x 41mm
• Weight: (meter w/ batteries & round vane) 500g
• Temperature Display: ˚F and ˚C
• Pressure Display: PSI and Bar
• Backlit LCD Display
• Low battery indicator
• K-type thermocouple connection
• USB connection
• 6 AA batteries
