Vacuum Pumps
Professional HVAC/R Vacuum Pumps
High-performance vacuum pumps for HVAC/R system evacuation and deep vacuum applications. Our comprehensive range includes single-stage and two-stage models, from compact portable units to heavy-duty professional pumps for commercial refrigeration service, all engineered to achieve deep vacuum levels essential for proper system installation and maintenance.
Shop by Type
Vacuum Pumps
Complete range of single and two-stage vacuum pumps with accessories
Vacuum Pump Parts
Replacement oil, cartridges, valves, and maintenance components
Vacuum Pump Types

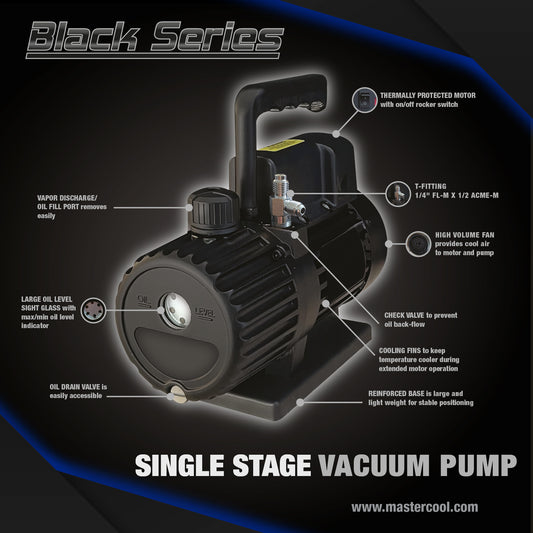

Single-Stage Vacuum Pumps
Reliable single-stage pumps for general HVAC/R evacuation:
- CFM ratings: 1.5 to 7 CFM for various system sizes
- Vacuum depth: Achieves 50-100 microns (sufficient for most applications)
- Compact design: Portable and lightweight for mobile service work
- Cost-effective: Lower initial cost than two-stage models
- Applications: Residential A/C, small commercial systems, automotive A/C
- Oil-sealed rotary vane: Proven technology for reliable performance

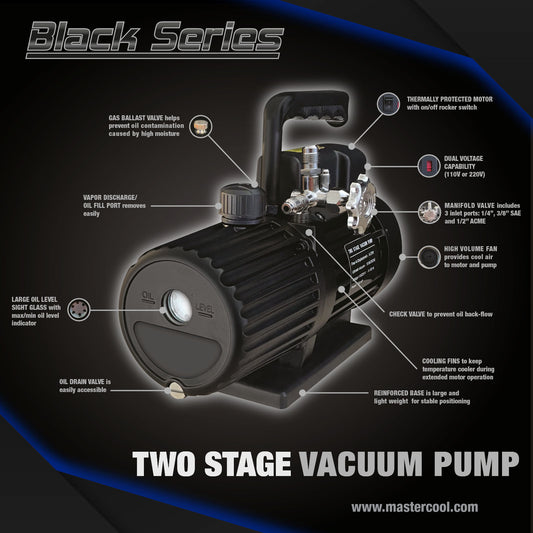

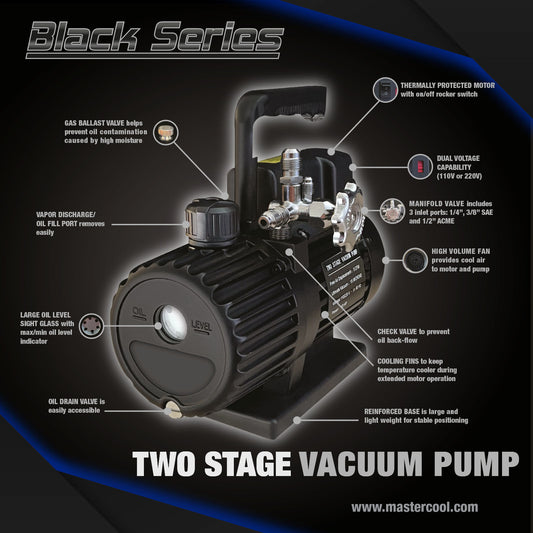

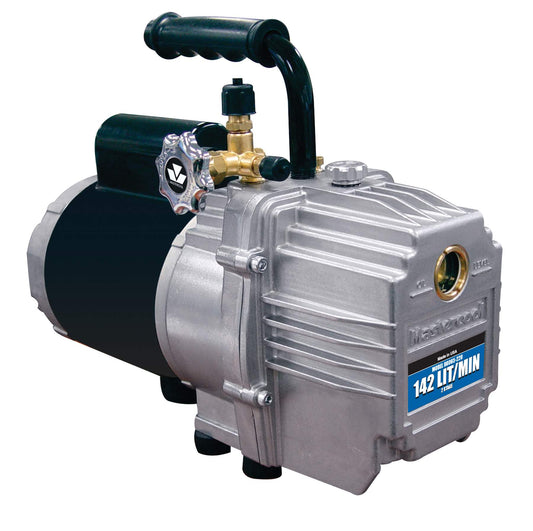

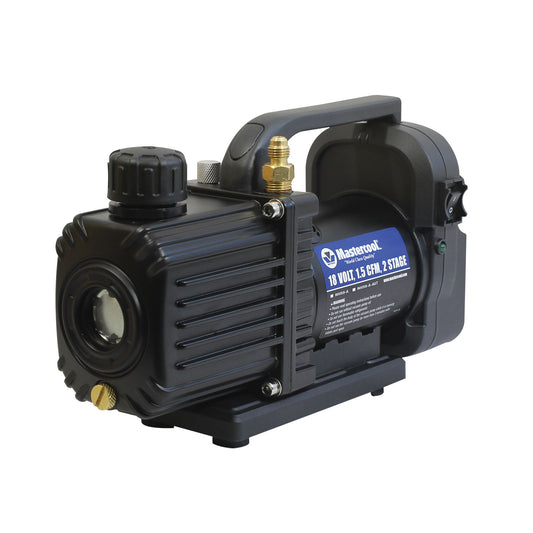

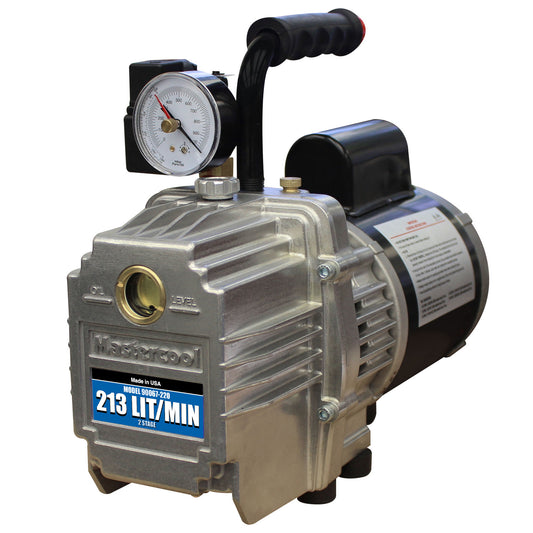

Two-Stage Vacuum Pumps
Professional two-stage pumps for deep vacuum applications:
- CFM ratings: 3 to 10+ CFM for faster evacuation
- Deep vacuum: Achieves 15-25 microns (ultimate vacuum)
- Faster evacuation: Higher CFM ratings reduce evacuation time
- Professional grade: Built for intensive daily use
- Applications: Commercial refrigeration, R410A systems, critical installations
- Superior moisture removal: Deep vacuum ensures complete moisture elimination
Key Features
- Oil-sealed rotary vane design: Proven technology for deep vacuum capability
- Dual voltage options: 110V/220V models for international use (selected models)
- Gas ballast valve: Helps remove moisture during evacuation
- Oil sight glass: Monitor oil condition without opening pump
- Intake port options: 1/4" and 3/8" SAE fittings for various hose sizes

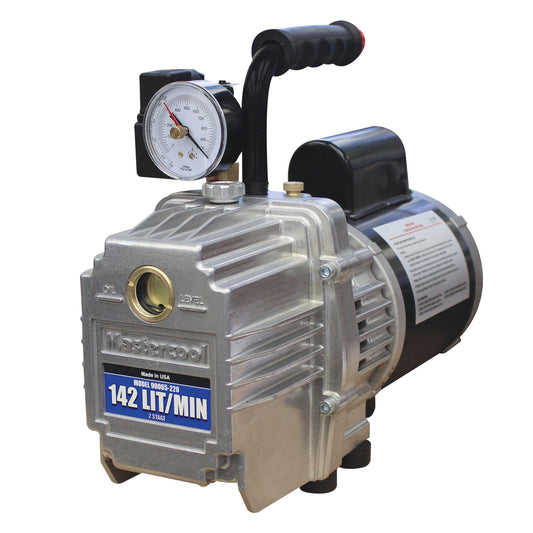

- Solenoid valve: Automatic oil backflow prevention (selected models)
- Carrying handle: Portable design for mobile service work
Why Proper Evacuation Matters
Moisture Removal
Deep vacuum removes moisture that can damage refrigeration systems:
- Prevents ice formation: Moisture freezes at expansion devices, blocking refrigerant flow
- Eliminates acid: Moisture combines with refrigerant to form acids that corrode components
- Protects compressor: Moisture causes compressor damage and premature failure
- Ensures efficiency: Moisture reduces system performance and capacity
Air Removal
Vacuum evacuation removes non-condensable gases:
- Air in system increases head pressure
- Reduces cooling capacity and efficiency
- Causes compressor overheating
- Proper evacuation ensures optimal system performance
Vacuum Depth Requirements
| Application | Required Vacuum | Pump Type |
|---|---|---|
| Automotive A/C | 500-1000 microns | Single-stage sufficient |
| Residential A/C | 500 microns or lower | Single or two-stage |
| R410A systems | 500 microns or lower | Two-stage recommended |
| Commercial refrigeration | 250-500 microns | Two-stage recommended |
| Critical installations | 100 microns or lower | Two-stage required |
CFM Rating Guide
Choosing the Right CFM
CFM (Cubic Feet per Minute) determines evacuation speed:
- 1.5-3 CFM: Automotive A/C, small residential systems, portable service
- 3-5 CFM: Residential A/C, light commercial systems, general HVAC service
- 5-7 CFM: Commercial refrigeration, multiple system evacuation, workshop use
- 7-10+ CFM: Large commercial systems, industrial refrigeration, high-volume service
Evacuation Time
Higher CFM ratings reduce evacuation time:
- Larger systems require higher CFM for reasonable evacuation times
- Two-stage pumps typically offer higher CFM than single-stage
- Consider system size and typical applications when selecting CFM rating
Vacuum Pump Maintenance
Oil Changes
Regular oil changes are critical for vacuum pump performance:
- Heavy use (daily): Change oil every 10-15 operating hours
- Moderate use: Change oil every 25-30 operating hours
- Light use: Change oil every 50 operating hours or annually
- After contamination: Change immediately if oil appears milky or contaminated
Oil Condition Indicators
- Clear/amber: Normal condition, pump operating correctly
- Dark/dirty: Time for oil change
- Milky/cloudy: Moisture contamination, change immediately
- Very dark/black: Severe contamination, may need pump service
Preventive Maintenance
- Check oil level before each use
- Inspect intake port for debris
- Clean or replace intake screen regularly
- Store in clean, dry location
- Run pump briefly before and after use to circulate oil
Vacuum Pump Accessories
- Vacuum pump oil: Premium oil for optimal performance (10oz, 16oz, 18oz, 24oz bottles)
- Replacement cartridges: Service components for specific pump models
- Solenoid valves: Automatic oil backflow prevention

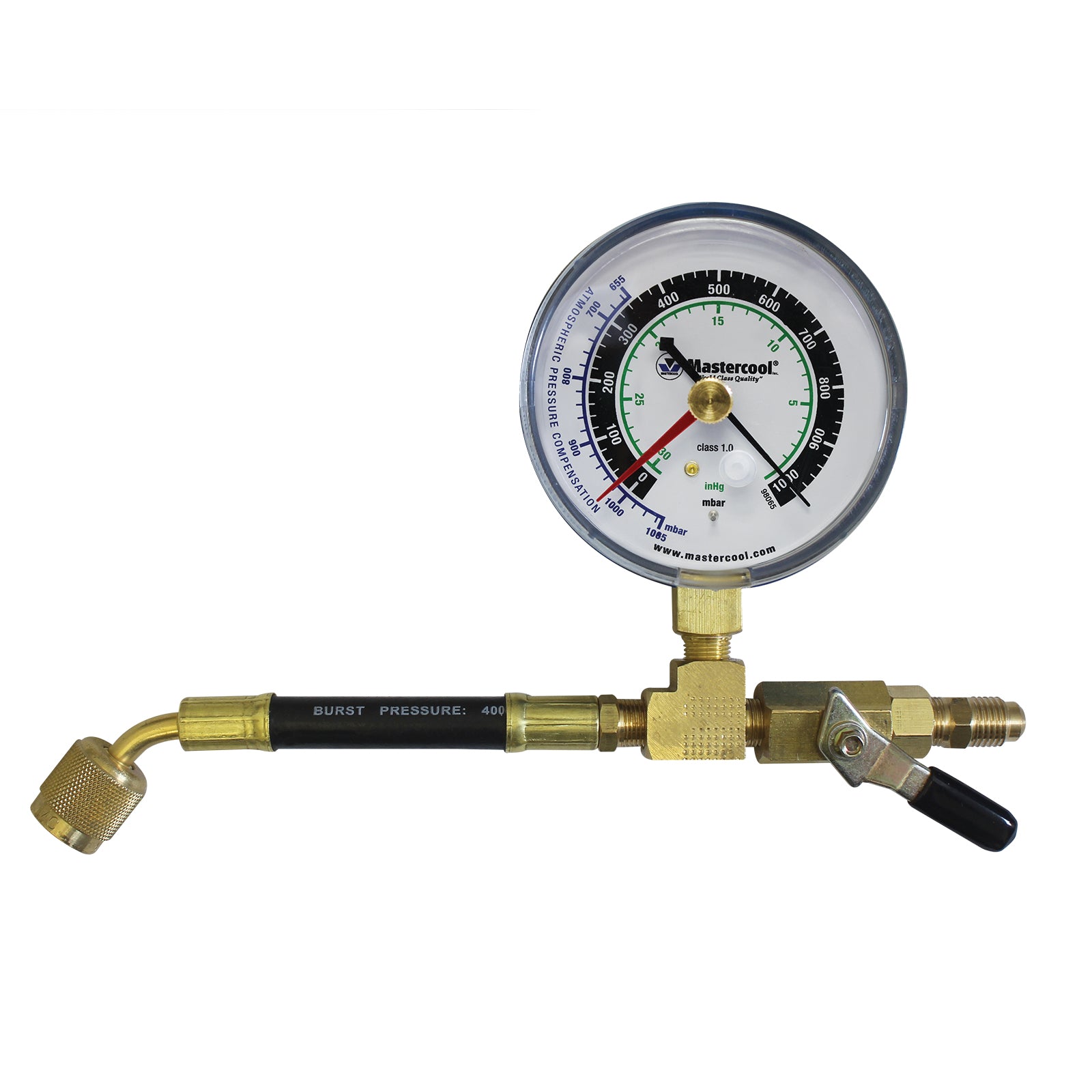

- Vacuum gauges: Monitor vacuum levels during evacuation
- Exhaust hoses: Direct oil mist away from work area
- Carrying cases: Protect pump during transport and storage
Evacuation Best Practices
- Check oil level: Ensure adequate clean oil before starting

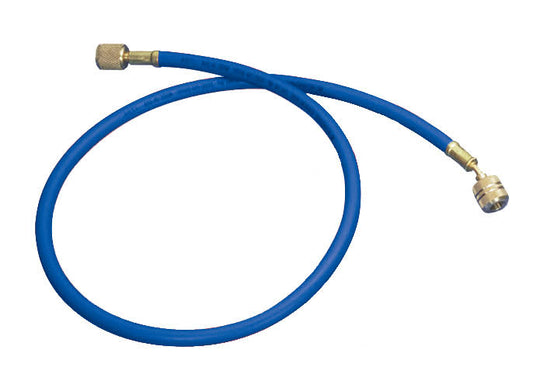

- Connect hoses: Use large-diameter hoses (3/8" recommended) for faster evacuation
- Open valves: Ensure all system valves are open
- Start pump: Begin evacuation and monitor vacuum gauge
- Target vacuum: Evacuate to 500 microns or lower (250 microns for critical applications)
- Decay test: Close valves, stop pump, monitor for pressure rise (should hold vacuum)
- Complete evacuation: If vacuum holds, system is ready for charging
- Change oil: Change oil if contaminated after evacuation
Frequently Asked Questions
Single-stage vs two-stage: which do I need?
Single-stage pumps are sufficient for most residential A/C and automotive applications (achieving 50-100 microns). Two-stage pumps are recommended for R410A systems, commercial refrigeration, and critical installations requiring deep vacuum (15-25 microns).
What vacuum level should I achieve?
Minimum 500 microns for most HVAC/R applications. R410A systems and commercial refrigeration benefit from deeper vacuum (250-500 microns). Critical installations may require 100 microns or lower.
How long should evacuation take?
Depends on system size and pump CFM rating. Small residential A/C: 15-30 minutes. Large commercial systems: 1-2+ hours. If evacuation takes much longer, check for leaks or inadequate pump capacity.
Why is my vacuum pump oil milky?
Milky oil indicates moisture contamination from evacuating systems. This is normal after evacuating refrigeration systems. Change oil immediately as moisture reduces vacuum performance.
Can I use automotive oil in my vacuum pump?
No. Vacuum pumps require specially formulated oil with very low vapour pressure. Automotive oil will not achieve proper vacuum levels. Always use vacuum pump specific oil.
Need help choosing a vacuum pump? Contact our technical team for expert advice on the right pump for your applications.
