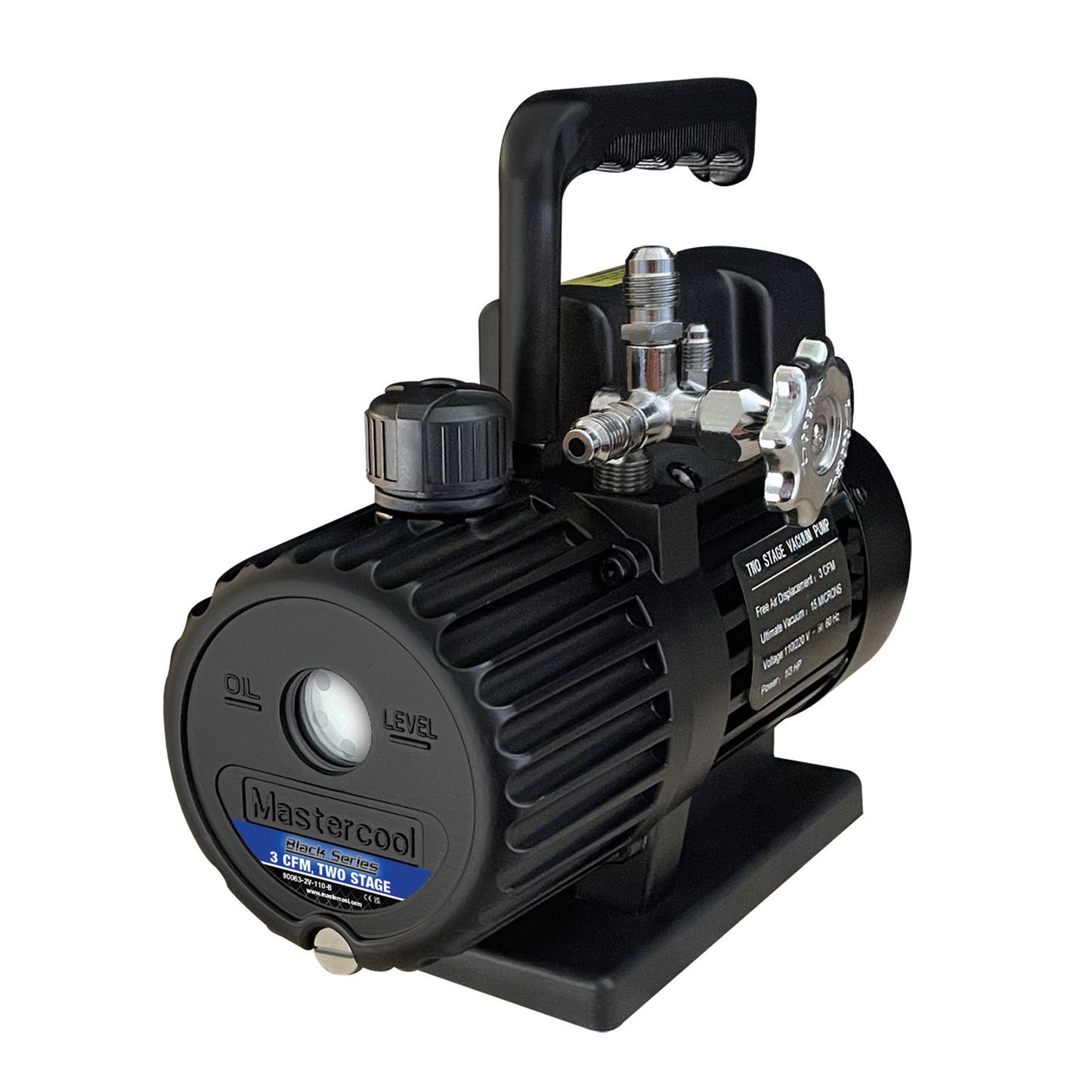

Mastercool 90063-2V-220BL Dual Voltage Vacuum Pump 2-Stage 3 CFM 90 L/min

Black Series™ 3 CFM Two-Stage Vacuum Pump — Stands Up to the Most Gruelling Conditions

Mastercool's Black Series vacuum pumps are durable and time-tested to stand up to the most gruelling conditions and will provide years of reliable service. The 90063-2V-220BL delivers professional-grade performance with 3 CFM capacity (90 lit/min at 60 Hz, 70 lit/min at 50 Hz), 1/3 HP motor, and deep vacuum capability to 15 microns. This two-stage vacuum pump provides the power and mobility necessary for a wide variety of HVAC/R and automotive A/C applications.

Black Series™ Premium Engineering

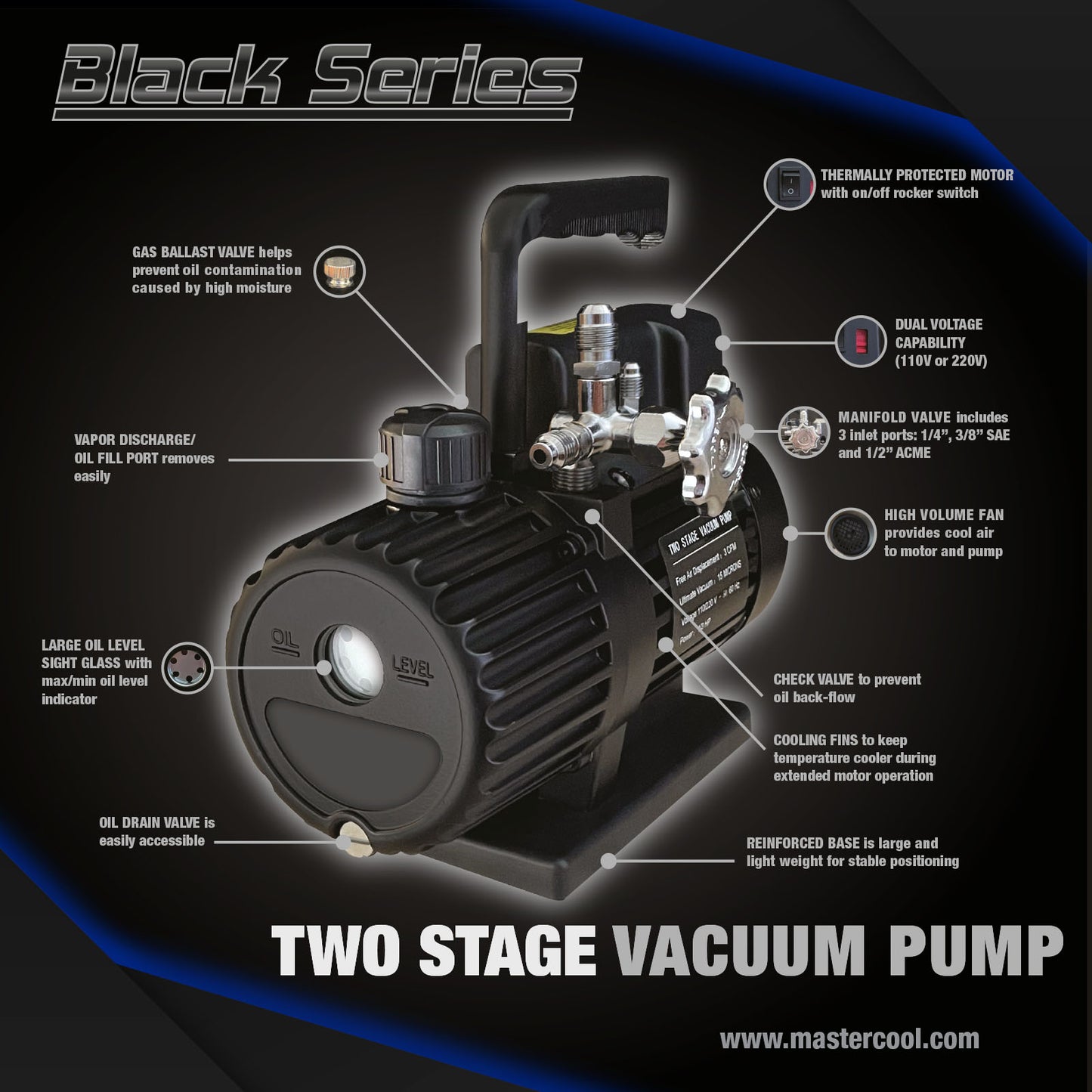

• Refined Cartridge Machining: Improved surface finish extends pump life
• Expanded Internal Oil Path: Creates less friction and ultimately less heat
• Upgraded Seals: Ensure maximum vacuum performance
• U.S. Designed and Tested: Engineered for professional reliability
• Premium Construction: Built for demanding workshop environments

Key Features

• Easy Grip Handle: Ergonomic design for comfortable positioning
• Gas Ballast Valve: Helps prevent oil contamination caused by high moisture
• Easily Removable Vapour Discharge/Oil Fill Port: Simplified maintenance
• Large Oil Level Sight Glass: Max/min level indicator for easy monitoring
• Easily Accessible Oil Drain Valve: Quick oil changes
• Thermally Protected Motor: On/off rocker switch with thermal protection
• Manifold Valve: Isolates pump from system when testing for leaks
• 3 Inlet Ports: 1/4" SAE, 3/8" SAE, and 1/2" ACME for maximum flexibility
• High Volume Fan: Provides cool air to motor and pump
• Check Valve: Prevents oil back-flow
• Cooling Fins: Keep temperature cooler during extended operation
• Large Lightweight Reinforced Base: Stable positioning during operation

Technical Specifications

• Model: 90063-2V-220BL
• Series: Black Series™
• Stages: 2 (Two-stage)
• Free Air Displacement: 3 CFM / 90 lit/min (60 Hz), 70 lit/min (50 Hz)
• Ultimate Vacuum: 15 microns*
• Motor: 1/3 HP, thermally protected
• Pump Speed: 1440 RPM (50 Hz)
• Electrical Specifications: 110/220V, 50/60 Hz (dual voltage)
• Power Cable: 220V Schuko cable included
• Inlet Ports: 1/4" SAE, 3/8" SAE, 1/2" ACME
• Oil Capacity: Approximately 15 oz / 440 ml
• Weight: 10 kg
• SKU: 90063-2V-220BL
• HS Code: 84148080

* Please note: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

Why Two-Stage Vacuum Pumps?

Two-stage vacuum pumps provide superior performance compared to single-stage designs:

• Deeper Vacuum: Achieves 15 microns vs 50-100 microns for single-stage pumps
• Faster Evacuation: Removes air and moisture more quickly
• Better Moisture Removal: Lower vacuum levels ensure thorough dehydration
• Professional Standard: Required for modern refrigerants and A/C systems
• System Protection: Thorough evacuation prevents compressor damage
• Warranty Compliance: Many manufacturers require deep vacuum for warranty validity

Applications

• HVAC/R system evacuation and dehydration

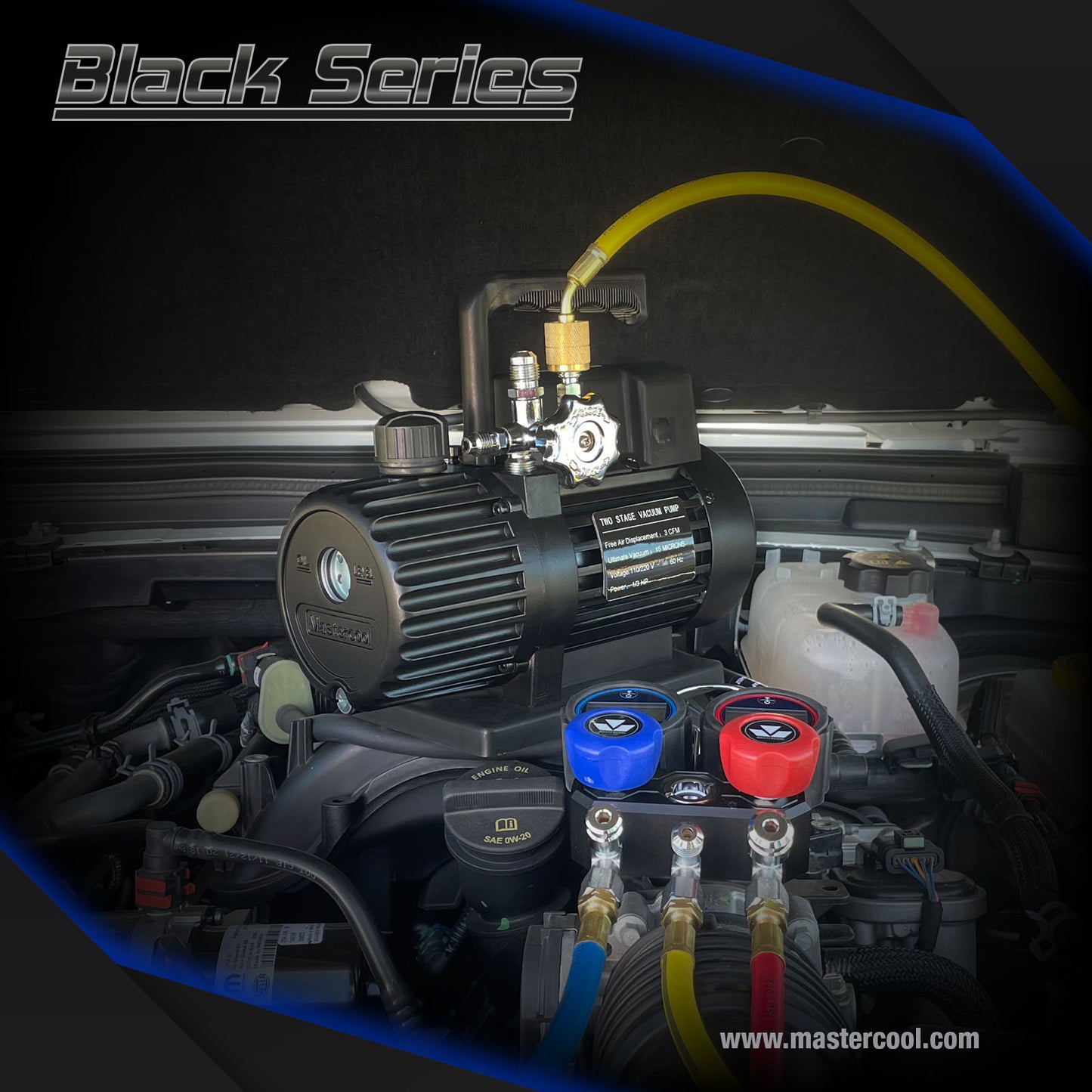

• Automotive A/C system service
• Commercial refrigeration installation and maintenance
• Heat pump installation
• Refrigerant recovery system evacuation
• Medium to large capacity A/C systems
• Workshop and mobile service operations
• Professional HVAC/R contractors

Related Black Series Models

Other Capacity Options:

• 90059-220-BL — 1.8 CFM Single-Stage Economy (basic evacuation)
• 90066-2V-220-BL — 6 CFM Two-Stage (mid-range performance)
• 90063-2V-220-BL — 3 CFM Two-Stage (this model - balanced performance)
• 90612-2V-220-BL — 12 CFM Two-Stage (high-volume operations)

With Solenoid Valve:

• 90063-2V-220SVB — With Solenoid Valve & Vacuum Sensor
• 90063-2V-220SVBL — Black Series with Solenoid Valve

Replacement Parts:

• 90066-2EB — Electrical Box for 90066/90063

Why Choose the Black Series 90063-2V-220BL?

• Balanced Performance: 3 CFM capacity ideal for most professional applications
• Deep Vacuum: 15 micron capability ensures thorough evacuation
• Two-Stage Design: Superior performance to single-stage pumps
• Dual Voltage: 110V/220V flexibility (220V Schuko cable included)
• Premium Quality: Black Series construction for workshop reliability
• Gas Ballast Valve: Protects oil when evacuating moist systems
• Multiple Inlet Ports: 1/4" SAE, 3/8" SAE, 1/2" ACME for versatility
• Manifold Valve: Isolates pump for leak testing
• Thermally Protected Motor: Prevents overheating damage
• Cooling Features: High-volume fan and cooling fins for extended operation
• Professional Grade: Built for daily workshop use
• Proven Reliability: Mastercool quality and performance

Perfect For

• Professional HVAC/R contractors
• Automotive A/C specialists
• Commercial refrigeration installers
• Workshop and service centres
• Mobile service operations
• Fleet maintenance facilities
• Technicians requiring deep vacuum capability
• Medium-volume service operations

Operation

1. Check oil level in sight glass before operation (max/min indicator)
2. Connect vacuum pump to system via appropriate inlet port (1/4", 3/8" SAE, or 1/2" ACME)
3. Ensure all system valves are open for evacuation
4. Start vacuum pump using on/off rocker switch
5. Open gas ballast valve if evacuating moist systems
6. Continue evacuation until system reaches target vacuum (typically 500 microns or lower)
7. Use manifold valve to isolate pump and monitor for vacuum decay (leak test)
8. If vacuum holds, system is ready for charging
9. Close gas ballast valve and shut down pump

Maintenance

• Oil Changes: Change oil regularly based on usage (every 10-20 hours for heavy use)
• Oil Level: Check sight glass before each use (max/min indicator)
• Oil Condition: Replace oil if it appears milky or contaminated
• Gas Ballast: Use when evacuating moist systems to protect oil
• Oil Drain: Use easily accessible drain valve for quick changes
• Storage: Store in clean, dry environment
• Connections: Keep inlet and exhaust ports clean and free from debris
• Thermal Protection: Allow motor to cool if thermal protection activates

Achieving Deep Vacuum

To achieve and maintain deep vacuum (15 microns):

• Use properly sized vacuum hoses (3/8" or larger recommended)
• Keep hose lengths as short as practical
• Ensure all connections are tight and leak-free
• Use a micron gauge to verify vacuum level
• Allow sufficient evacuation time for system size
• Maintain clean, fresh vacuum pump oil
• Use gas ballast valve when evacuating moist systems
• Monitor oil level in sight glass regularly

Why Deep Vacuum Matters

Achieving deep vacuum (below 500 microns) is essential for modern HVAC/R systems:

• Moisture Removal: Water boils at lower temperatures under vacuum, allowing thorough dehydration
• System Protection: Moisture causes acid formation, corrosion, and compressor damage
• Performance: Air and moisture reduce system efficiency and cooling capacity
• Refrigerant Purity: Non-condensables contaminate refrigerant and reduce performance
• Warranty Compliance: Many manufacturers require deep vacuum for warranty validity
• Professional Standard: Industry best practice for quality installations

Dual Voltage Capability

The 90063-2V-220BL features dual voltage capability (110V/220V), providing flexibility for:

• International use in different voltage regions
• Workshop environments with multiple power sources
• Mobile service operations with varying power availability
• Future-proofing for workshop changes

Supplied with 220V Schuko cable. Voltage selection typically via internal switch - consult user manual for switching procedure.

Manifold Valve System

The integrated manifold valve allows you to isolate the pump from the system during leak testing, enabling accurate vacuum decay monitoring without shutting down the pump. Three inlet ports (1/4" SAE, 3/8" SAE, 1/2" ACME) provide maximum connection flexibility for different hose sizes and applications.

3 CFM - The Balanced Choice

The 3 CFM capacity of the 90063 provides an excellent balance between performance and portability:

• Adequate for Most Applications: Handles automotive A/C and residential/light commercial HVAC
• Faster Than Smaller Pumps: More efficient than 1.8 CFM models
• More Portable Than Larger Pumps: Lighter and more compact than 6 CFM or 12 CFM models
• Cost-Effective: Better value than larger pumps for typical workshop needs

Professional Quality: Mastercool Black Series vacuum pumps are built to professional standards for reliable, high-performance evacuation in demanding HVAC/R and automotive workshop environments. Two-stage design delivers deep vacuum capability essential for modern refrigerant systems. Stands up to the most gruelling conditions.
