R744 (CO2) Refrigeration Tools & High-Pressure Equipment

Specialist tools and equipment designed for R744 (carbon dioxide) refrigeration systems. R744 is a natural refrigerant used in commercial refrigeration, operating at extremely high pressures that require purpose-built, high-pressure rated equipment.

Why R744 (CO2) is Growing

Carbon dioxide is increasingly popular as a natural refrigerant:

• Ultra-low GWP: Global Warming Potential of just 1 (baseline reference)
• Zero ODP: No ozone depletion potential
• Natural refrigerant: Abundant, non-toxic, non-flammable
• Excellent efficiency: Superior thermodynamic properties in transcritical systems
• Future-proof: Not subject to F-Gas phase-down regulations
• Supermarket standard: Becoming the norm for large commercial refrigeration

R744 System Pressures

CO2 operates at significantly higher pressures than traditional refrigerants:

• Subcritical operation: Up to 60 Bar (870 PSI)
• Transcritical operation: Up to 140 Bar (2,030 PSI) on high side
• Critical point: 31°C at 73.8 Bar
• Equipment requirements: All tools must be rated for extreme pressures
• Safety critical: Standard HVAC tools are completely unsuitable

R744 Specialist Tools & Equipment

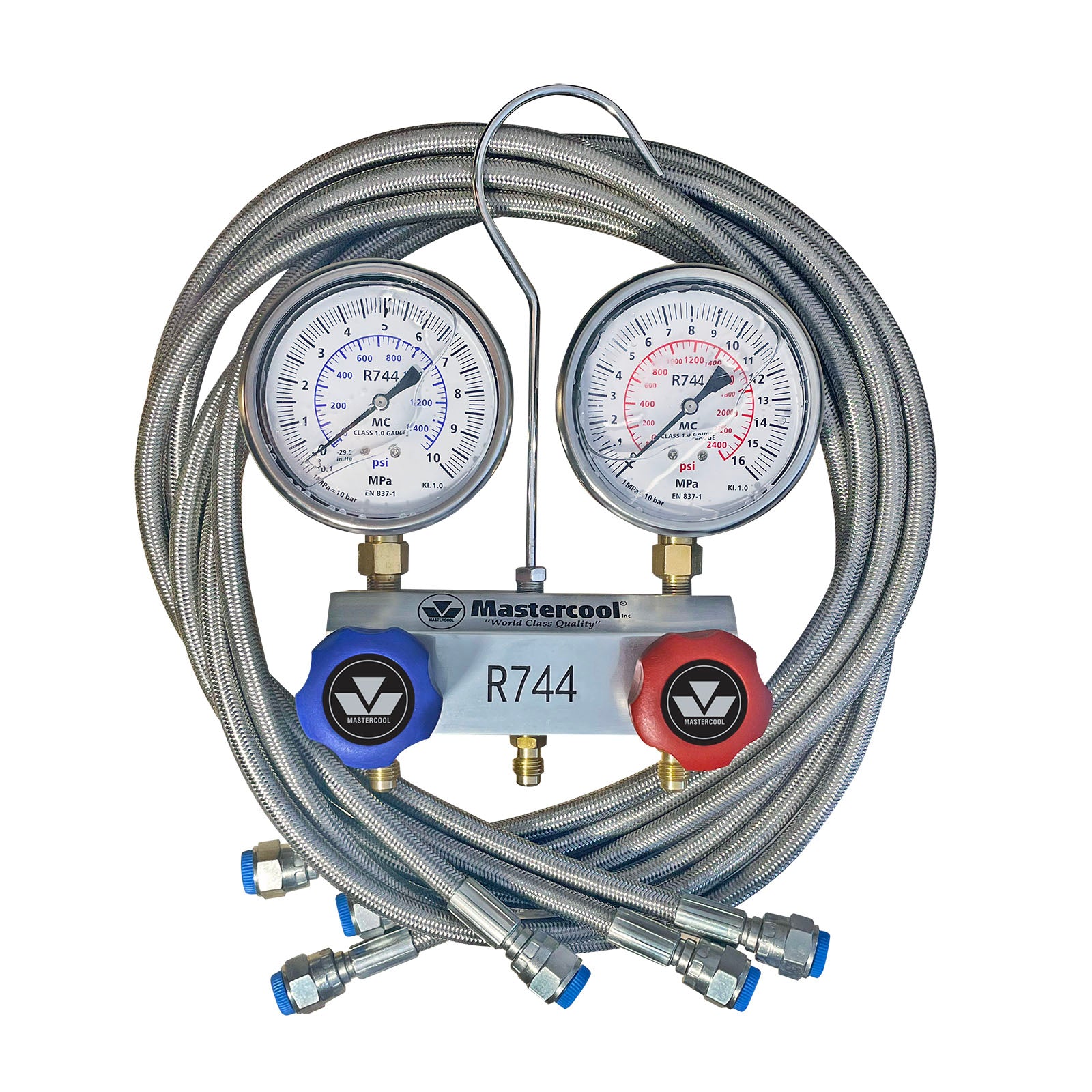

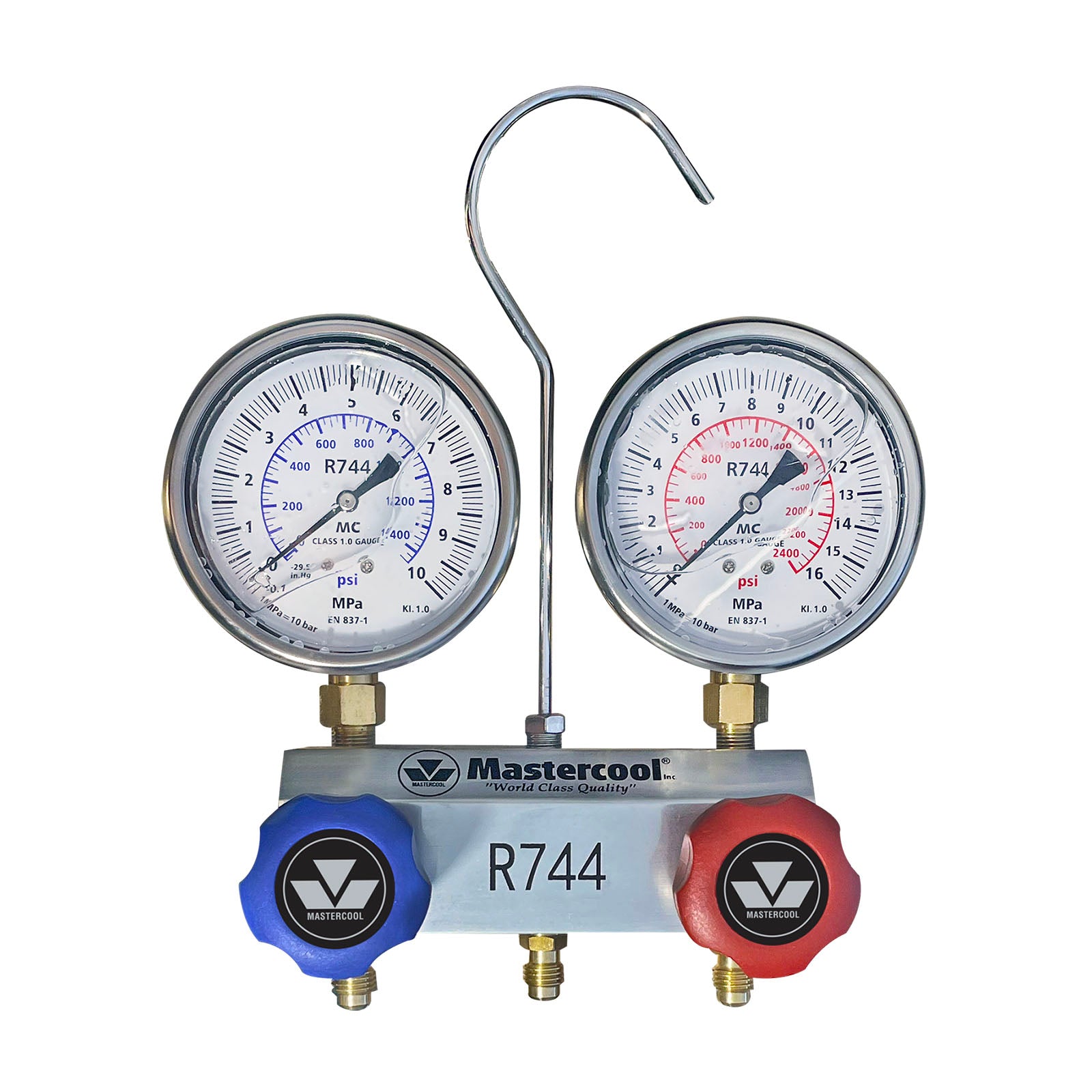

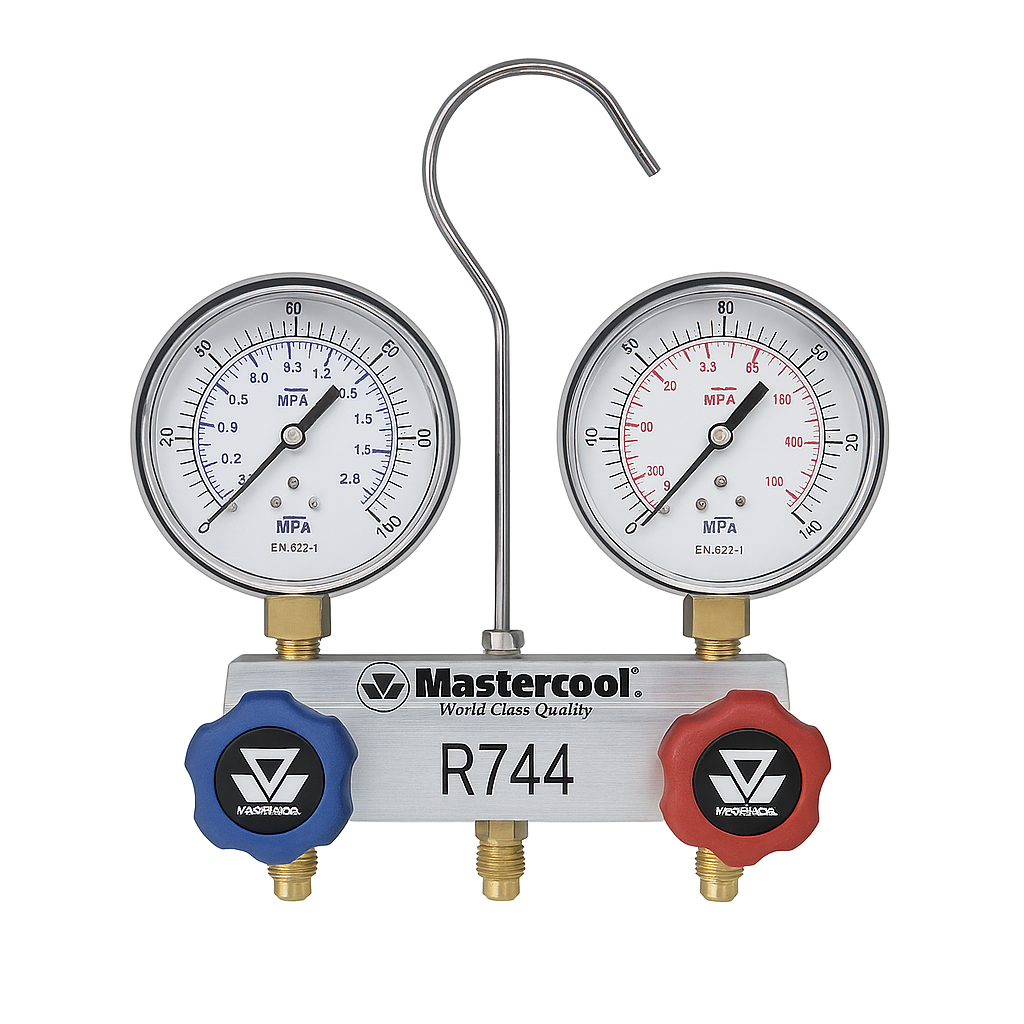

High-Pressure Manifolds & Gauges

Purpose-built manifold gauge sets rated for CO2 pressures:

• Pressure rating: Minimum 140 Bar (2,030 PSI) for transcritical systems
• Specialized gauges: Scales showing CO2 saturation temperatures and transcritical pressures
• Robust construction: Heavy-duty materials to withstand extreme pressures
• Safety features: Pressure relief valves and reinforced connections

CO2 Leak Detectors

Specialized leak detection equipment for carbon dioxide:

• Infrared or heated diode sensors for CO2 detection
• High sensitivity for trace leak detection
• Essential for system commissioning and maintenance
• Different technology than HFC leak detectors

Recovery & Charging Equipment

High-pressure recovery machines and charging equipment:

• Rated for CO2 operating pressures
• Specialized pumps and compressors
• High-pressure cylinders and storage
• Safety equipment for high-pressure handling

High-Pressure Hoses & Fittings

Reinforced hoses and fittings rated for CO2 pressures:

• Minimum 140 Bar pressure rating
• Specialized fittings for CO2 systems
• Burst-resistant construction
• Regular inspection and replacement critical

Safety Equipment

Essential safety equipment for CO2 systems:

• High-pressure rated tools and accessories
• CO2 gas detectors for workspace safety
• Pressure relief devices
• Personal protective equipment (PPE)
• Emergency procedures and training

R744 Applications

• Supermarket refrigeration: Centralized CO2 systems for food retail
• Cold storage: Industrial cold rooms and warehouses
• Food processing: Commercial food production facilities
• Ice rinks: CO2 refrigeration for ice skating facilities
• Heat pumps: CO2 heat pump water heaters (residential and commercial)
• Transport refrigeration: CO2 systems in refrigerated vehicles

Transcritical vs Subcritical CO2

Subcritical CO2 Systems

Operate below the critical point (31°C):

• Lower pressures (up to 60 Bar)
• Traditional vapour-compression cycle
• Suitable for cold climates or low-temperature applications
• Simpler system design

Transcritical CO2 Systems

Operate above the critical point on high side:

• Very high pressures (up to 140 Bar)
• Gas cooler instead of condenser
• Better efficiency in warm climates
• More complex system design
• Requires specialized high-pressure equipment

R744 Refrigerant Facts

• Chemical name: Carbon dioxide (CO₂)
• ASHRAE number: R744
• GWP: 1 (baseline reference)
• ODP: 0
• Flammability: Non-flammable (A1 classification)
• Toxicity: Low toxicity (asphyxiant in high concentrations)
• Critical point: 31°C at 73.8 Bar
• Colour code: Grey or aluminium cylinder

R744 vs Traditional Refrigerants

Safety Considerations

High Pressure Hazards

• Equipment failure risk: Extreme pressures can cause catastrophic failure if equipment not rated correctly
• Proper training essential: Technicians must be trained in high-pressure systems
• Regular inspections: Hoses, fittings, and equipment require frequent inspection
• Pressure relief: Systems must have adequate pressure relief devices

Asphyxiation Risk

• Heavier than air: CO2 accumulates in low areas
• Ventilation critical: Adequate ventilation essential in plant rooms
• Gas detection: CO2 monitors required in enclosed spaces
• Emergency procedures: Clear procedures for CO2 leaks

Regulatory & Standards

• EN 378: European standard for refrigerating systems (includes CO2)
• Pressure Equipment Directive: High-pressure CO2 systems subject to PED
• F-Gas exempt: CO2 not subject to F-Gas regulations (natural refrigerant)
• Training requirements: Specialist training required for CO2 systems

Important Notes

• Specialist equipment mandatory: Standard HVAC tools cannot be used on CO2 systems
• Pressure ratings critical: All equipment must be rated for minimum 140 Bar
• Training essential: CO2 systems require specialist knowledge and training
• Safety first: High-pressure systems demand strict safety protocols

Need help with R744 CO2 tools and equipment? Contact our technical team for expert advice on CO2 refrigeration equipment and safety requirements.
