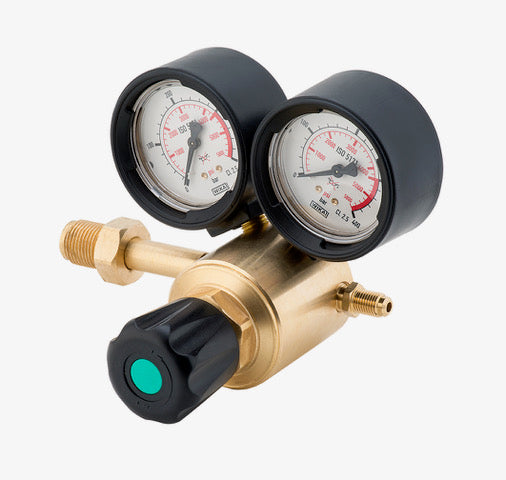

Mastercool 53003-200 Nitrogen Regulator CO2 Systems UK BS3 200 Bar

Professional Nitrogen Pressure Regulator for CO2 System Testing - UK BS3 Standard

High-pressure nitrogen regulator specifically designed for pressure testing CO2 refrigeration systems. Features UK BS3 cylinder connection and delivers up to 200 bar outlet pressure for comprehensive system leak detection and integrity testing.

Key Features:

• High outlet pressure - Up to 200 bar for rigorous CO2 system testing
• UK BS3 inlet connection - Standard UK nitrogen cylinder fitting
• CO2 system specialist - Engineered for high-pressure CO2 refrigeration applications
• Dual pressure gauges - Monitor both inlet (up to 300 bar) and outlet (up to 200 bar) pressures
• 1/4" SAE flare outlet - Standard connection for HVAC/R equipment
• Precision control - Fine adjustment for accurate test pressures
• Professional-grade construction - Built for commercial refrigeration technicians

Applications:

• CO2 refrigeration system pressure testing and leak detection
• Transcritical CO2 system commissioning
• Commercial refrigeration installations (supermarkets, cold storage)
• Natural refrigerant system integrity verification
• High-pressure leak testing before CO2 charging
• System repairs and maintenance verification

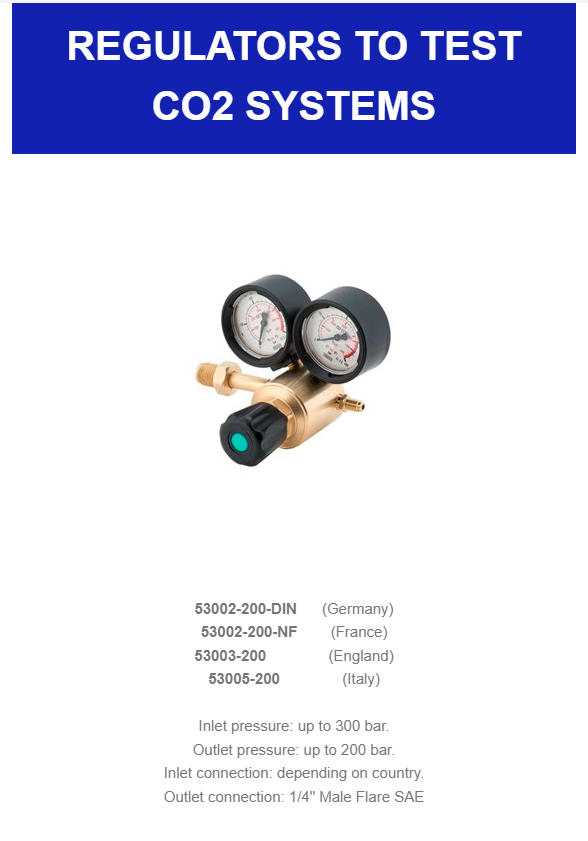

Technical Specifications:

• Inlet pressure: Up to 300 bar
• Outlet pressure: Up to 200 bar
• Inlet connection: BS3 (UK nitrogen cylinder standard)
• Outlet connection: 1/4" Male Flare SAE
• Gauge range: High-pressure rated for CO2 applications
• Model: 53003-200
• Application: CO2 refrigeration system testing

Why Nitrogen Testing for CO2 Systems?

CO2 refrigeration systems operate at significantly higher pressures than traditional HFC systems (up to 120 bar operating pressure). Nitrogen pressure testing at 200 bar ensures:

• Complete leak detection before expensive CO2 charging
• System integrity verification at pressures exceeding operating conditions
• Compliance with safety standards for high-pressure refrigeration
• Prevention of moisture contamination during testing
• Cost-effective testing compared to using CO2 refrigerant

CO2 Refrigeration Systems:

CO2 (R744) is increasingly used in commercial refrigeration due to its low environmental impact and excellent thermodynamic properties. However, CO2 systems require specialised high-pressure equipment and testing procedures. This regulator is specifically designed for the demanding requirements of CO2 system commissioning.

UK F-Gas Compliance:

Proper pressure testing with nitrogen is mandatory under UK F-Gas regulations before charging any refrigeration system. For CO2 systems, the higher test pressures ensure system safety and regulatory compliance.

Related Products:

Complete your CO2 system toolkit with our high-pressure CO2 manifold gauges, vacuum pumps, leak detectors, and recovery equipment.

Essential equipment for commercial refrigeration technicians working with CO2 transcritical systems.
