HVAC Tool Spare Parts & Service Kits

Genuine Mastercool replacement parts and service kits for HVAC/R tools and equipment. Our comprehensive spare parts collection includes O-rings, seals, gaskets, valve cores, hose fittings, couplers, ball valves, and complete rebuild kits to keep your professional tools running at peak performance.

Essential Spare Parts

O-Rings, Seals & Gaskets

Critical sealing components for leak-free operation:

• O-ring sets: Complete assortments for manifolds, hoses, and fittings
• Individual O-rings: Specific sizes for precise replacements
• Seal kits: Complete seal sets for specific tool models

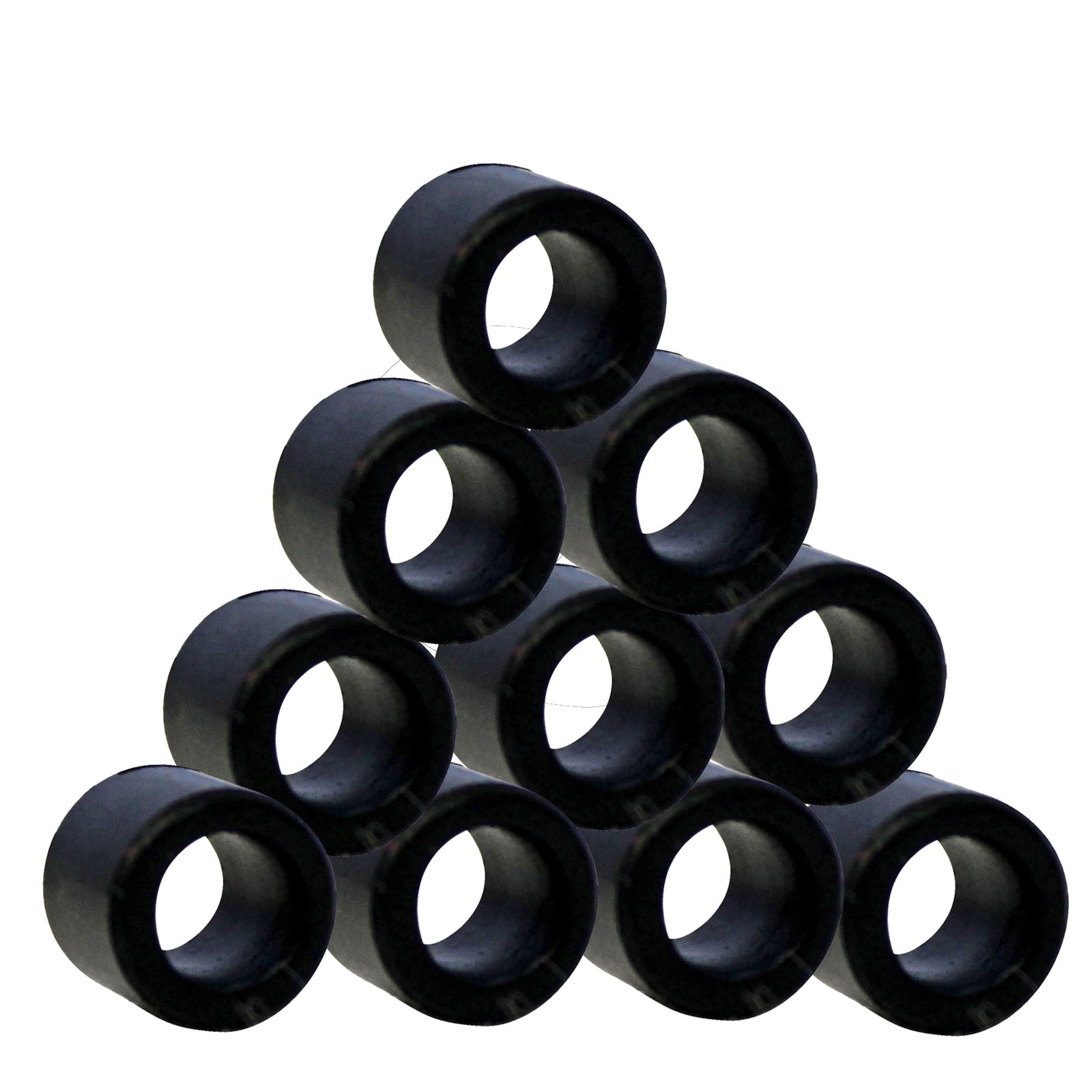

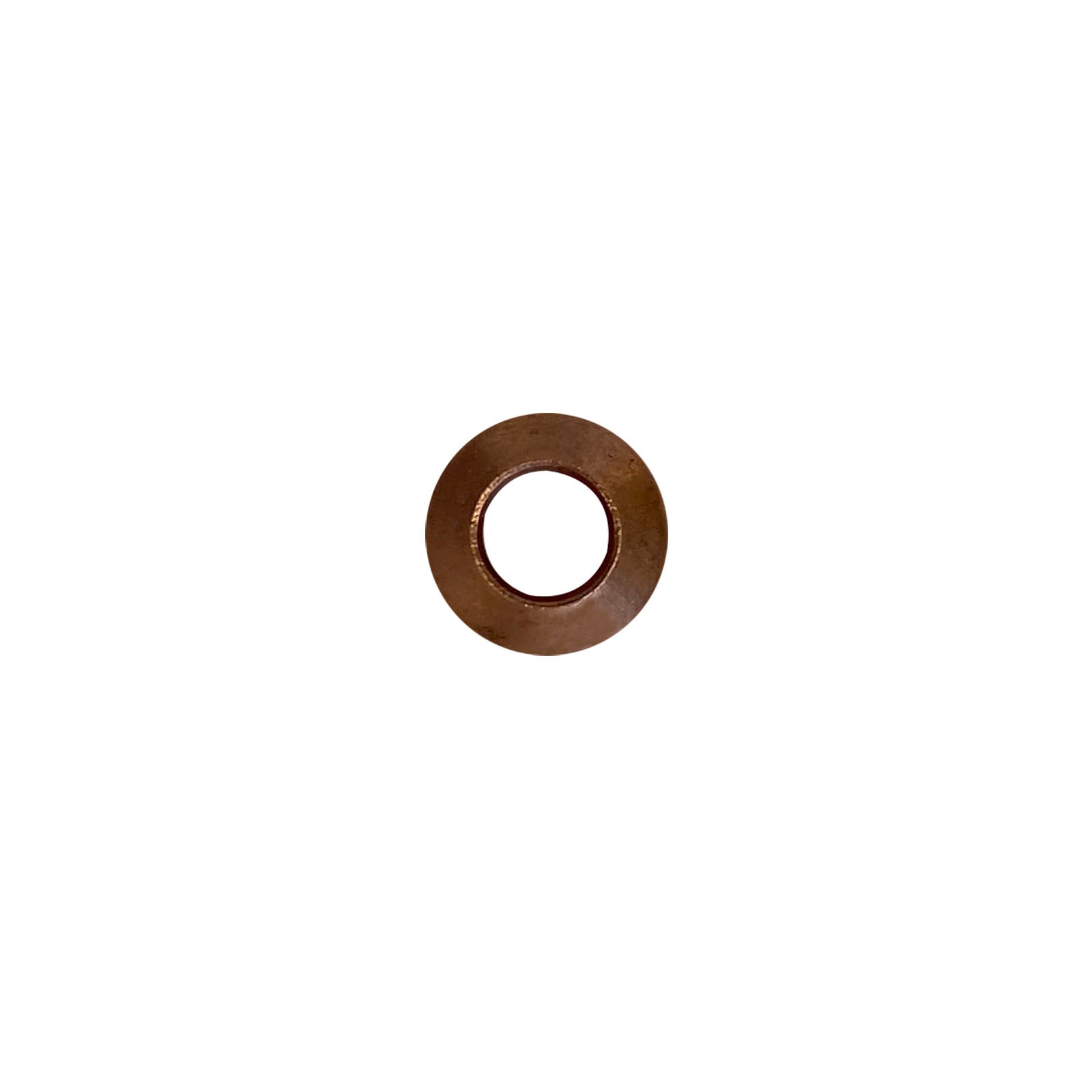

• Gasket sets: Manifold and equipment gaskets
• Garter springs: Spring-loaded seals for high-pressure applications
• Multiple materials: Nitrile, EPDM, Viton for different refrigerants

Valve Cores & Valve Tools

Essential components for refrigerant service:

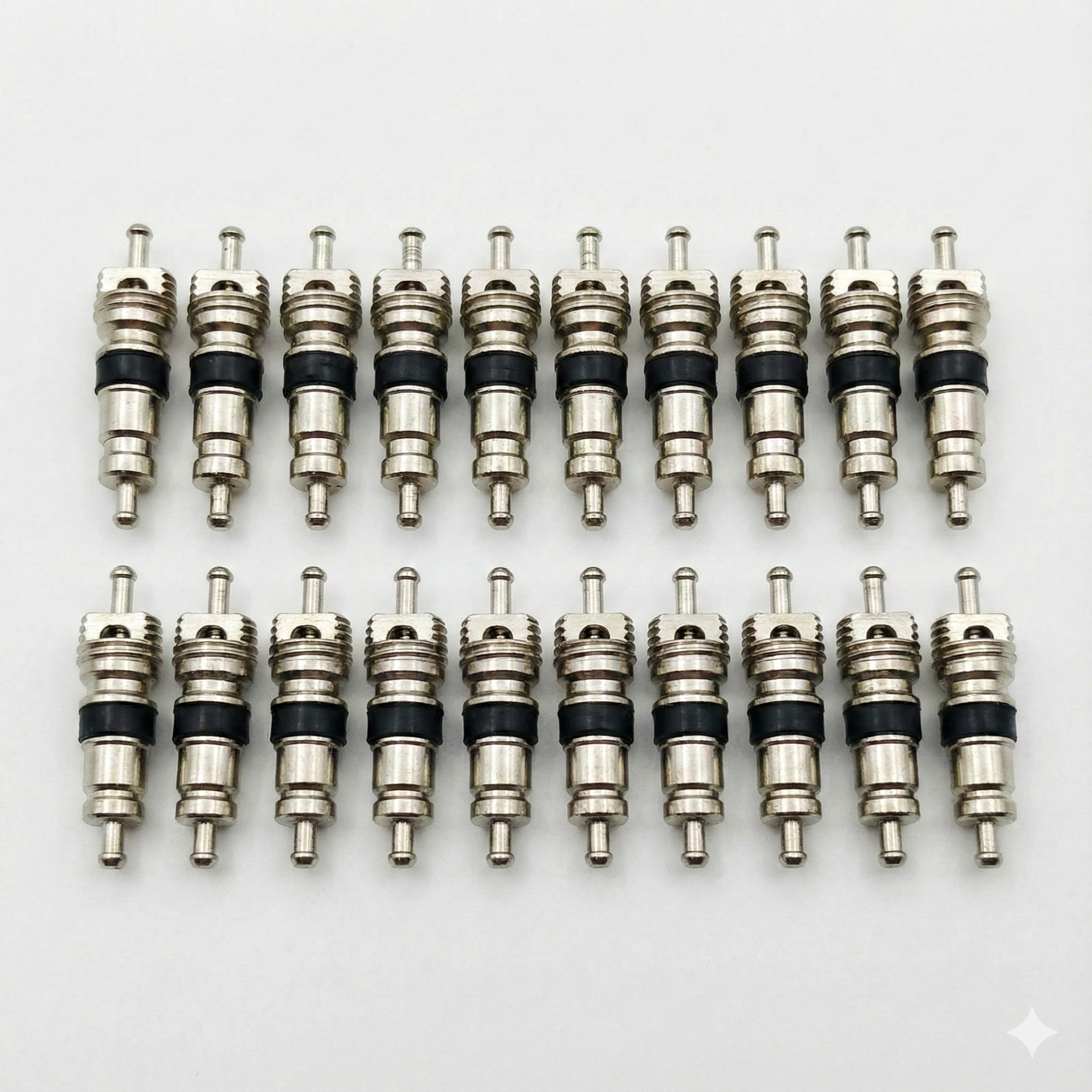

• Schrader valve cores: Standard and high-flow cores
• Core depressors: Replacement depressor pins for hose fittings

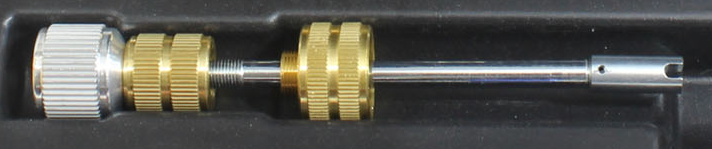

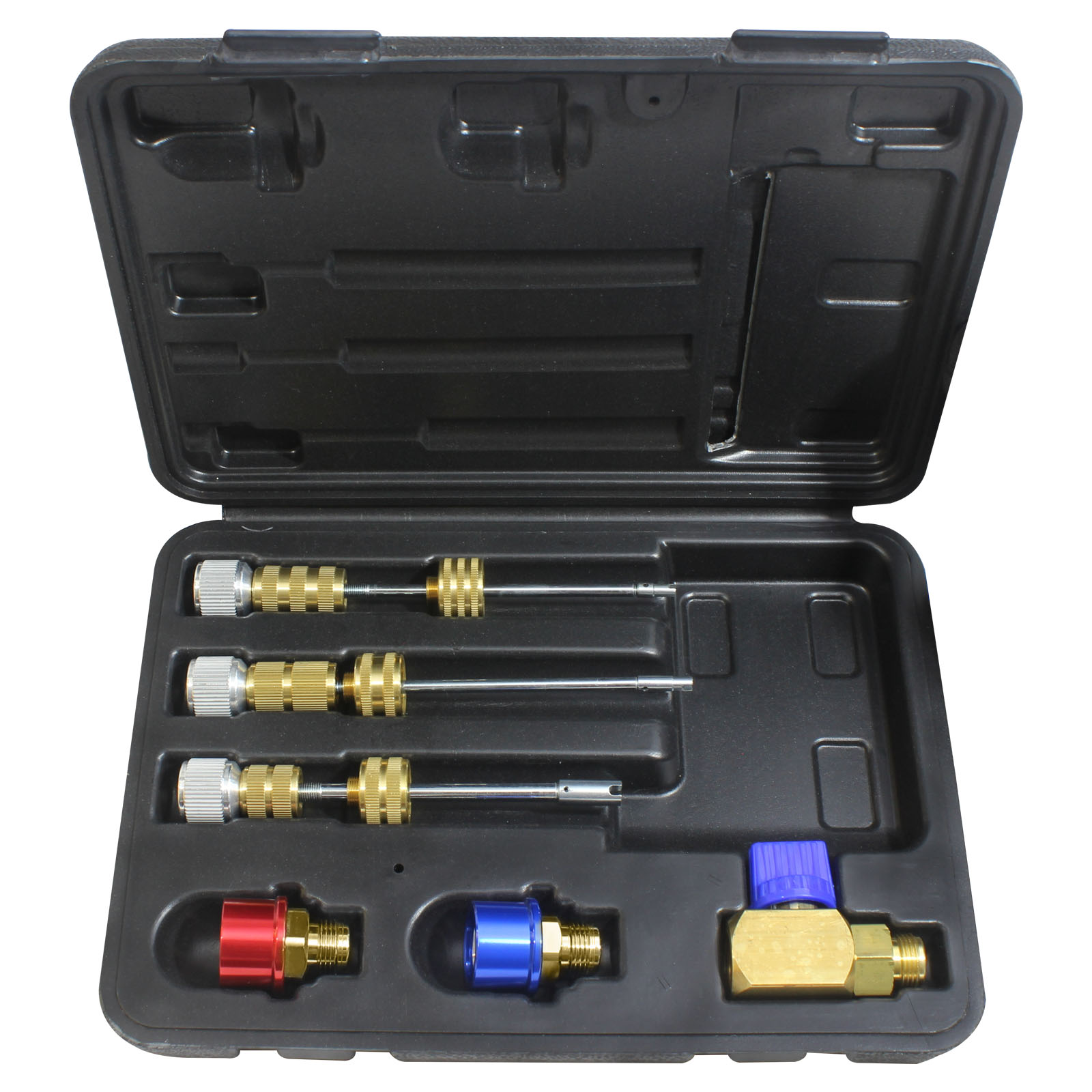

• Valve core tools: Installation and removal tools
• Service port adapters: Adapt between different port types
• Multiple sizes: 1/4", 5/16", 3/8" and other common sizes

Hose Fittings & Adapters

Connection components for refrigerant hoses:

• 1/4" SAE fittings: Standard manifold hose fittings
• 3/8" fittings: Full-flow hose connections
• Adapter fittings: Convert between different sizes and types
• Replacement ends: Repair damaged hose fittings
• Brass construction: Durable, corrosion-resistant materials

Couplers (Quick-Connect Fittings)

Quick-connect couplers for fast, secure connections:

• R134a couplers: 14mm (high-side) and 13mm (low-side) automotive A/C
• R1234yf couplers: 12mm M fittings for modern automotive A/C
• Manual couplers: Threaded connections for secure sealing
• Quick couplers: Push-on connections for fast service
• High and low-side: Colour-coded for easy identification

Ball Valves & Shut-Off Valves

Flow control components:

• Replacement ball valves for hoses
• Manifold shut-off valves
• In-line ball valves
• Service port ball valves
• Quarter-turn operation for quick flow control

Complete Service Kits

Comprehensive rebuild and maintenance kits:

• Tool-specific rebuild kits
• O-ring and seal assortments
• Valve core sets
• Fitting and adapter kits
• Everything needed for complete tool servicing

Why Use Genuine Mastercool Parts?

• Perfect fit: Designed specifically for Mastercool tools and equipment
• Quality materials: Professional-grade components for reliable performance
• Leak-free operation: Precision-manufactured seals and O-rings
• Warranty protection: Using genuine parts maintains equipment warranty
• Technical support: Full UK support for installation and compatibility
• Proven reliability: Tested and verified for Mastercool equipment

Common Replacement Parts by Tool Type

Manifold Gauge Sets

• Gauge port O-rings and seals
• Hose connection gaskets
• Valve stem seals
• Sight glass O-rings
• Manifold body gaskets

Refrigerant Hoses

• Hose end fittings (1/4" SAE, 3/8" SAE)
• O-rings for hose connections
• Ball valve assemblies
• Quick couplers (R134a, R1234yf)
• Core depressor pins

Vacuum Pumps

• Oil drain plug O-rings
• Intake port seals
• Exhaust port gaskets
• Solenoid valve seals
• Sight glass O-rings

Recovery Machines

• Port connection O-rings
• Filter housing gaskets
• Valve seals
• Tank connection O-rings
• Service port adapters

Maintenance Schedule

Regular Inspection

Check and replace parts as needed:

• Before each use: Visual inspection of O-rings and seals
• Weekly (heavy use): Check for leaks at all connections
• Monthly: Inspect valve cores and fittings for wear
• Annually: Replace all O-rings and seals as preventive maintenance

Signs Parts Need Replacement

Replace parts immediately if you notice:

• Leaks: Refrigerant leaking from connections
• Damaged O-rings: Cracked, flattened, or hardened O-rings
• Worn fittings: Loose or damaged threads on fittings
• Stuck valves: Ball valves or shut-off valves difficult to operate
• Corroded components: Rust or corrosion on brass fittings

O-Ring Material Selection

Nitrile (Buna-N)

• Best for: General HVAC/R applications, mineral oils
• Refrigerants: R22, R134a, R404a, R407C
• Temperature range: -40°C to +120°C
• Cost: Most economical option

EPDM (Ethylene Propylene)

• Best for: Ammonia (R717) systems
• Refrigerants: R717, some HFC refrigerants
• Temperature range: -50°C to +150°C
• Chemical resistance: Excellent resistance to ammonia

Viton (FKM)

• Best for: High-temperature applications, POE oils
• Refrigerants: R410A, R32, R1234yf, all HFC refrigerants
• Temperature range: -20°C to +200°C
• Durability: Superior chemical and temperature resistance
• Cost: Higher cost but longer service life

Installation Tips

O-Ring Installation

1. Clean surfaces: Remove old O-ring and clean groove thoroughly
2. Inspect groove: Check for damage or debris
3. Lubricate O-ring: Use small amount of refrigerant oil
4. Install carefully: Avoid twisting or stretching O-ring
5. Check seating: Ensure O-ring sits properly in groove
6. Tighten correctly: Don't over-tighten (hand-tight plus 1/4 turn)

Valve Core Replacement

1. Recover refrigerant: Remove refrigerant from system first
2. Use correct tool: Use valve core tool, not pliers
3. Remove old core: Turn counter-clockwise to remove
4. Inspect port: Check threads for damage
5. Install new core: Turn clockwise until snug (don't over-tighten)
6. Test for leaks: Pressure test before charging system

Fitting Replacement

1. Cut hose cleanly: Use hose cutter for clean cut
2. Install new fitting: Follow manufacturer instructions
3. Use correct O-rings: Install appropriate O-rings for refrigerant type
4. Tighten properly: Hand-tight plus 1/4 turn with wrench
5. Pressure test: Test with nitrogen before use

Frequently Asked Questions

How often should I replace O-rings?

Replace O-rings annually as preventive maintenance, or immediately if they show signs of damage (cracking, flattening, hardening). Always replace O-rings when disassembling connections for service.

Can I use automotive O-rings on HVAC tools?

No. HVAC/R O-rings must be compatible with refrigerants and oils. Use O-rings specifically designed for refrigeration applications. Automotive O-rings may not be compatible with refrigerants.

What's the difference between Nitrile and Viton O-rings?

Nitrile O-rings are suitable for most HVAC/R applications and mineral oils. Viton O-rings offer superior temperature and chemical resistance, essential for R410A, R32, and POE oils. Viton costs more but lasts longer.

Why do my hose connections keep leaking?

Common causes include damaged O-rings, over-tightening (which damages O-rings), cross-threading, or using incorrect O-ring material. Replace O-rings, ensure proper installation, and tighten correctly (hand-tight plus 1/4 turn).

Are quick couplers interchangeable between R134a and R1234yf?

No. R134a uses 14mm (high) and 13mm (low) fittings. R1234yf uses 12mm M fittings. They are deliberately incompatible to prevent cross-contamination between refrigerant types.

Can I repair a damaged hose fitting?

Minor damage to threads can sometimes be repaired with a thread file. However, severely damaged fittings should be replaced. Never use tape or sealants on refrigerant connections - use proper O-rings only.
