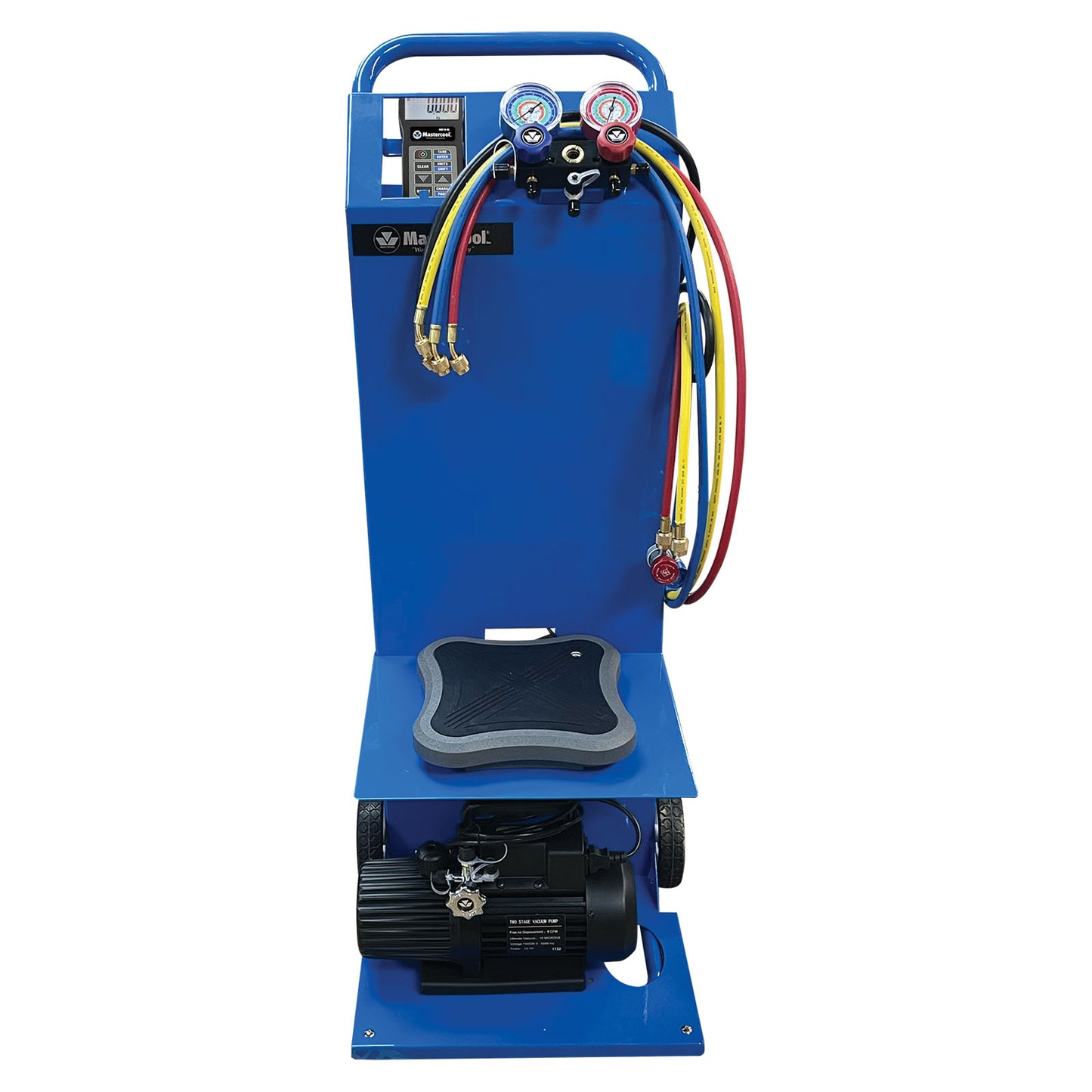

Mastercool Black Series Mobile Electronic Charging Station

Professional Mobile Electronic Charging Station

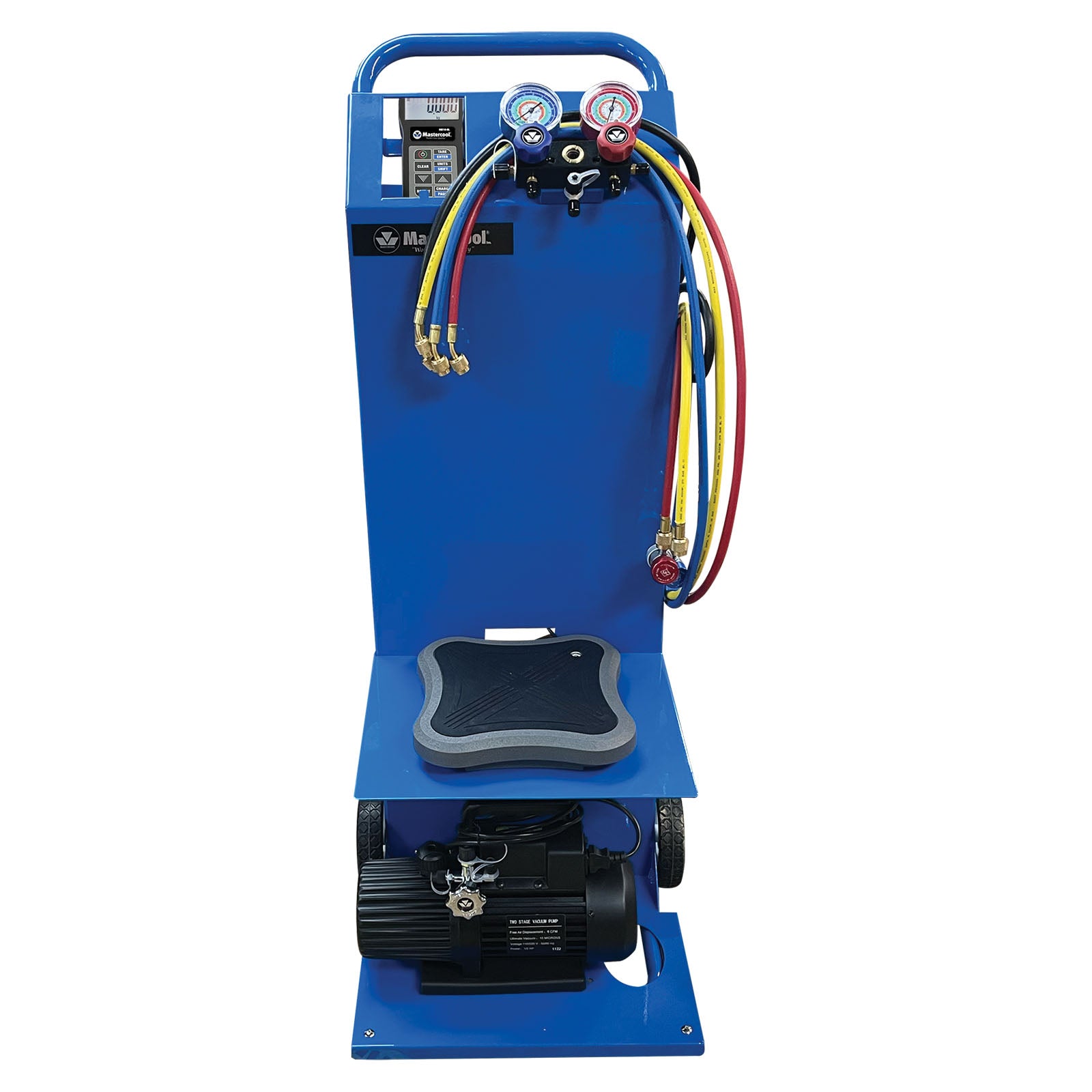

The Mastercool Black Series Mobile Electronic Charging Station combines precision refrigerant charging, vacuum evacuation, and recovery capabilities in a rugged mobile platform designed for garage and workshop technicians. Built on an enlarged steel cart with large wheels for easy manoeuvrability around the shop.

Choose Your Configuration

Available in four configurations to match your service requirements and budget:

Which Station Do I Need?

The 6 CFM Stations (Models 91683 / 91684)

Ideal For: Standard Automotive & Light Commercial

These units are the industry standard speed, perfectly sized for 90% of the vehicles on the road:

• Passenger Cars & SUVs — Standard R134a/R1234yf systems
• Vans & Light Commercials — Sprinters, Transits, etc.
• Agricultural Cabs — Tractors, combine harvesters
• Standard Coaches & Buses — Single split systems

Why buy this one? It's lighter, draws less power, and is more than fast enough for any system holding under 10kg of refrigerant.

The 12 CFM Stations (Models 91685 / 91686)

Ideal For: Heavy Duty, Transport Refrigeration & Speed-Critical Work

These are high-flow stations. You generally only need this much power if you're working on massive volumes or need to turn jobs around in record time:

• Refrigerated Transport (Reefers) — Large trailer units (e.g., Thermo King / Carrier Transicold) where deep vacuum is critical to remove moisture
• Articulated Buses & Trains — Large rooftop A/C systems with long pipe runs
• Mobile VRF/VRV Techs — If you use this station for static HVAC work (large building A/C) as well as vans, the 12 CFM pump is essential for systems over 20kW

Why buy this one? Time is money. On a large bus system, a 12 CFM pump can reach deep vacuum (500 microns) in half the time of a 6 CFM pump.

Pro Tip: The 4-Way Manifold Advantage

If you're buying the 12 CFM pump, we strongly recommend the 4-Way Manifold version (Model 91686).

The Reason: A 12 CFM pump is like a fire hose. If you try to pull a vacuum through a standard 2-way manifold (which uses a narrow 1/4" hose), you're choking the pump.

The Solution: The 4-Way Manifold has a massive 3/8" vacuum port. This larger hose lets the 12 CFM pump breathe fully, giving you the actual speed benefit you paid for.

Key Features

• Rugged mobile cart — Lightweight steel construction with large wheels for easy transport around the workshop
• Convenient storage — Integrated pocket for scale and hoses keeps everything organised
• Extruded aluminium manifold — Long-lasting valve design for reliable performance
• 240 lb capacity scale — Precision electronic scale with long-lasting 9V battery (60 hours operation)
• Black Series vacuum pump — Professional-grade two-stage vacuum pump for deep evacuation
• Dual voltage operation — 110/220V compatibility for versatile power options

Technical Specifications

• Scale capacity: 240 lb (109 kg)
• Scale accuracy: ±0.5 oz (±14 g)
• Scale battery: 9V (60 hours continuous use)
• Manifold material: Extruded aluminium
• Manifold options: 2-way or 4-way
• Vacuum pump options: 6 CFM (170 L/min) or 12 CFM (340 L/min) Black Series two-stage
• Ultimate vacuum: 15 microns
• Power: 110/220V dual voltage
• Cart construction: Lightweight steel with powder-coat finish
• Wheels: Large diameter for easy manoeuvrability

Applications

Ideal for automotive A/C service centres, HVAC/R workshops, and mobile technicians requiring a complete charging, evacuation, and recovery solution. The mobile cart design allows easy positioning next to vehicles or equipment, whilst the integrated storage keeps hoses and accessories organised and ready for use.

Understanding the Upgrades

2-Way vs 4-Way Manifold: The 2-way manifold is suitable for basic charging and evacuation tasks on single refrigerant systems - compact and efficient for standard automotive A/C service. The 4-way manifold provides additional ports for simultaneous operations (vacuum whilst tank is connected), recovery machines, or working with multiple refrigerant types. The 3/8" bore allows faster flow rates. Preferred for high-volume shops and complex HVAC/R applications.

6 CFM vs 12 CFM Pump: The 6 CFM pump handles residential and light commercial systems efficiently. The 12 CFM Black Series pump is engineered for large commercial installations, VRF/VRV systems, and situations where evacuation speed directly impacts productivity. It achieves target vacuum levels in roughly half the time on large systems.

What's Included

• Mobile steel cart with wheels
• Aluminium block manifold (2-way or 4-way depending on model)
• Black Series two-stage vacuum pump (6 CFM or 12 CFM depending on model)
• 240 lb electronic scale with 9V battery
• Integrated storage pocket
• User manual

Note: Hoses and refrigerant cylinders sold separately.
