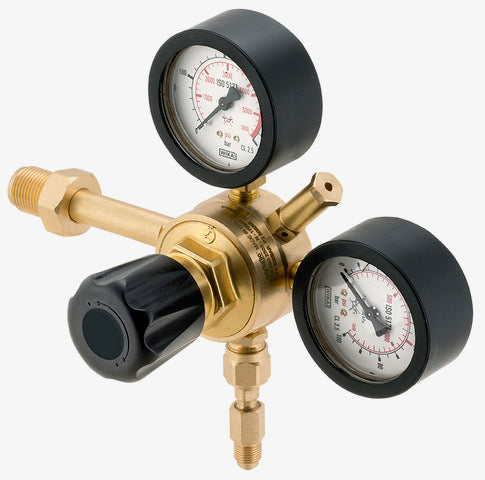

Mastercool 53007-100-CO2 CO2 Pressure Regulator W21.8 100 Bar
£181.94 GBP
Skip to product information
Mastercool 53007-100-CO2 CO2 Pressure Regulator W21.8 100 Bar
£181.94 GBP
Shipping calculated at checkout.
Professional CO2 Pressure Regulator - Standard W21.8 Connection
High-quality CO2 pressure regulator designed for professional refrigeration applications using CO2 (R744) refrigerant. Features standard W21.8 x 1/14" RH inlet connection and delivers up to 100 bar outlet pressure for CO2 system charging and servicing.
Key Features:
- 100 bar outlet pressure - Suitable for CO2 refrigeration system charging and operation
- Standard W21.8 connection - Universal CO2 cylinder fitting (W21.8 x 1/14" RH)
- CO2 refrigerant specialist - Engineered specifically for R744 applications
- Dual pressure gauges - Monitor both inlet (up to 300 bar) and outlet (up to 100 bar) pressures
- 1/4" SAE flare outlet - Standard connection for HVAC/R equipment
- Precision control valve - Fine adjustment for accurate charging pressures
- Professional-grade construction - Built for commercial refrigeration technicians
- Brass body construction - Durable and corrosion-resistant
Applications:
- CO2 refrigeration system charging and recharging
- Transcritical CO2 system servicing
- Commercial refrigeration maintenance (supermarkets, cold storage)
- Natural refrigerant system repairs
- CO2 refrigerant recovery and transfer
- Heat pump CO2 system servicing

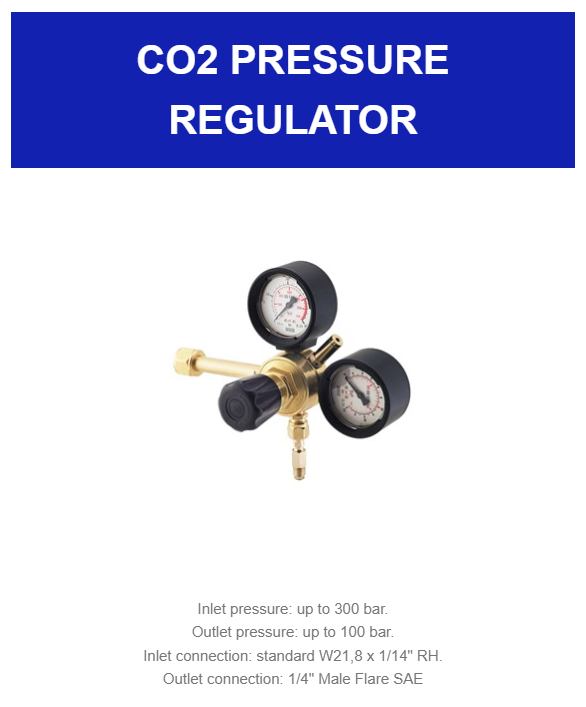

Technical Specifications:
- Inlet pressure: Up to 300 bar
- Outlet pressure: Up to 100 bar
- Inlet connection: Standard W21.8 x 1/14" RH (right-hand thread)
- Outlet connection: 1/4" Male Flare SAE
- Gauge range: High-pressure rated for CO2 applications
- Model: 53007-100-CO2
- Application: CO2 refrigerant charging and servicing
- Body material: Brass with protective coating
Why CO2 (R744) Refrigeration?
CO2 is increasingly adopted in commercial refrigeration due to:
- Zero ozone depletion potential (ODP) and low global warming potential (GWP)
- Excellent thermodynamic properties for refrigeration
- Natural, non-toxic, and non-flammable refrigerant
- Cost-effective and widely available
- Compliance with F-Gas regulations and environmental legislation
CO2 System Considerations:
CO2 refrigeration systems operate at significantly higher pressures than traditional HFC systems. This regulator is specifically designed to handle:
- High operating pressures (up to 100 bar outlet)
- Transcritical operation where CO2 exceeds its critical point
- Safe charging procedures for high-pressure systems
- Precise pressure control for optimal system performance
UK F-Gas Compliance:
CO2 (R744) is classified as a natural refrigerant and is exempt from many F-Gas restrictions. However, proper handling equipment and F-Gas certification are still required for working with refrigeration systems. This regulator meets professional standards for CO2 system servicing.
Related Products:
Complete your CO2 system toolkit with our high-pressure CO2 manifold gauges, recovery equipment, nitrogen testing regulators, and vacuum pumps.
Essential equipment for commercial refrigeration technicians working with CO2 transcritical and subcritical systems.
