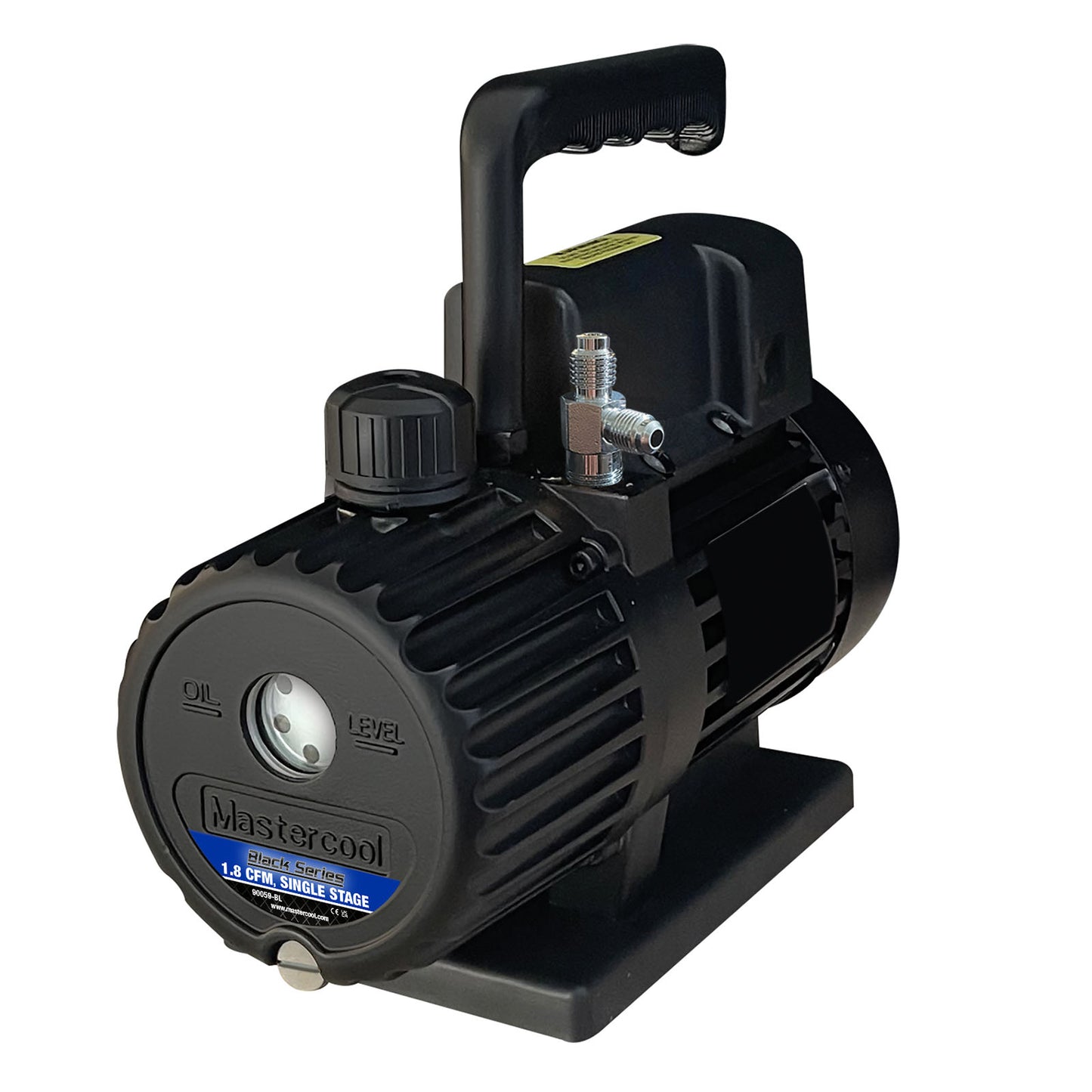

Mastercool 90059-220-BL Air Conditioning Vacuum Pump 42 litre per Min Single Stage 1.5 CFM.

Expertly remove air from air conditioning systems with the Mastercool 90059-220B Vacuum Pump. With a powerful 42 litre per minute flow rate and single stage 1.5 CFM design, this pump efficiently eliminates air, ensuring optimal performance and longevity of your AC system.

A good-quality vacuum pump is an integral tool for complete a/c service. Mastercool vacuum pumps are durable and time-tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your application.

Specifications:

• High efficiency one stage 42 lit/min pump
• Accessible access oil fill port
• Ultimate vacuum: 75 microns 1/6 hp 220-volt motor
• Weight: 7.25 kg
• Internal check valve on pump access fitting prevents oil blowout
• Oil capacity: 177 ml

Technical Details:

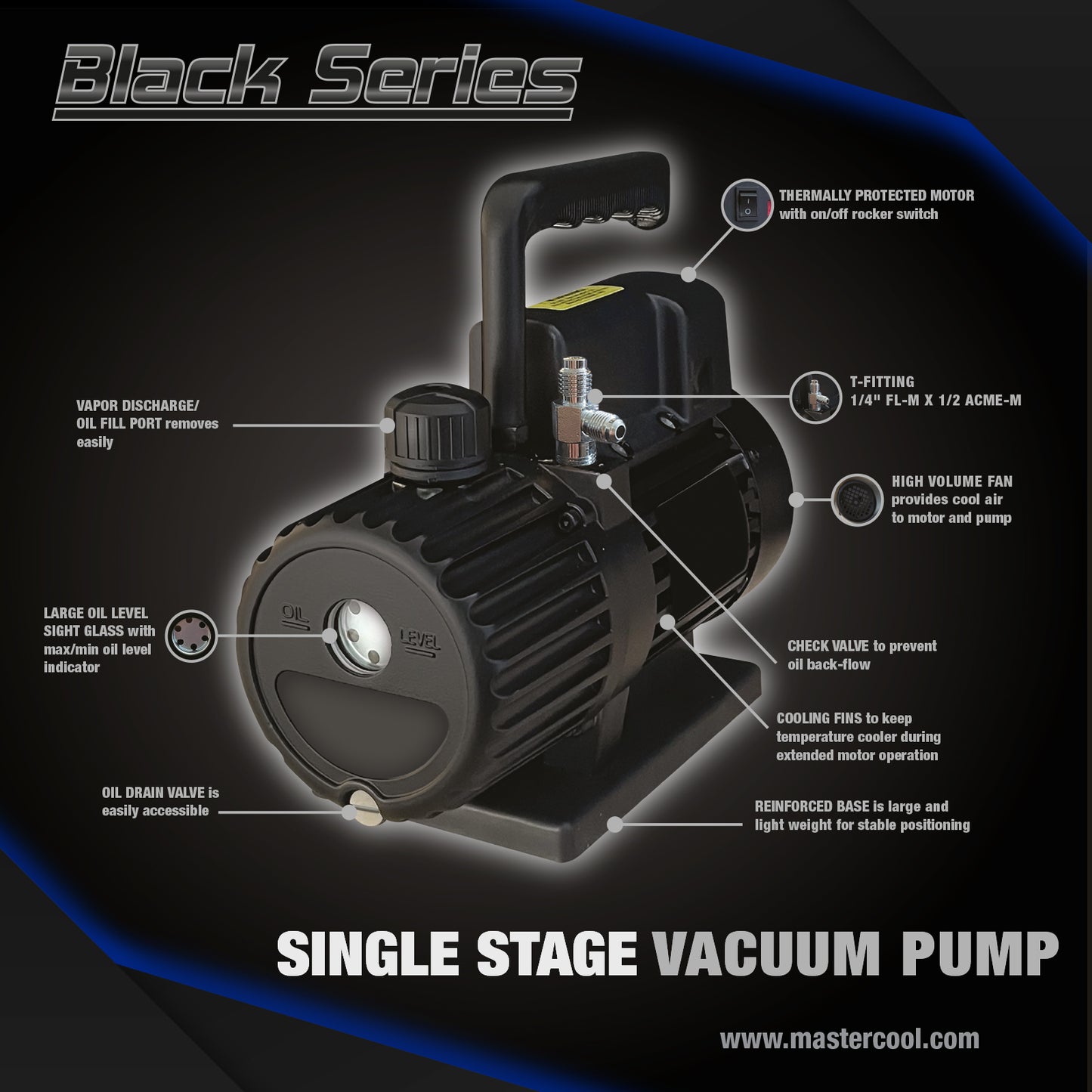

• High volume fan provides excellent air motor and pump
• Vapour discharge/oil fill port, easily removable, contains an internal check valve to prevent the escape of liquid oil
• Non-slip cushion handle
• Includes T-fitting with 1/4″ flare and 1/2″ acme ports
• Cooling fins to keep temperature cooler during extended motor operation
• The manifold valve isolates the pump from the system, testing for leaks
• No. of Stages: 1
• Free Air Displacement: 35 lit/min, 42 lit/min 1.5 CFM
• Ultimate Vacuum: 75 Microns
• Pump Motor: 1/6 HP
• Pump Speed: 2850/3450 RPM
• Electrical Specs: 220 V/50 Hz, 220 V/60 Hz
• Shipping Weight: 16 lbs (7.25 kg)
• Dimensions in cm: 29.5 x 11.5 x 21.5 x 18
• Supplied With European 2-Pin Plug

Important!: use oil specifically refined for deep vacuum pumps. Use of oil not refined for deep vacuum pumps and operating with contaminated oil will void the warranty. To use your investment best, familiarize yourself with the new features and operating instructions before starting the vacuum pump. Routine care and maintenance of your vacuum pump will give you years of reliable service. Each vacuum pump has been factory tested for cfm and micron performance. The serial number has been recorded. Complete and mail the warranty form immediately to validate your warranty.

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

This vacuum pump has been tested at the factory and shipped with only trace amounts of oil.

Oil must be added before operating.

Failure to add oil will damage the cartridge and void the warranty.
