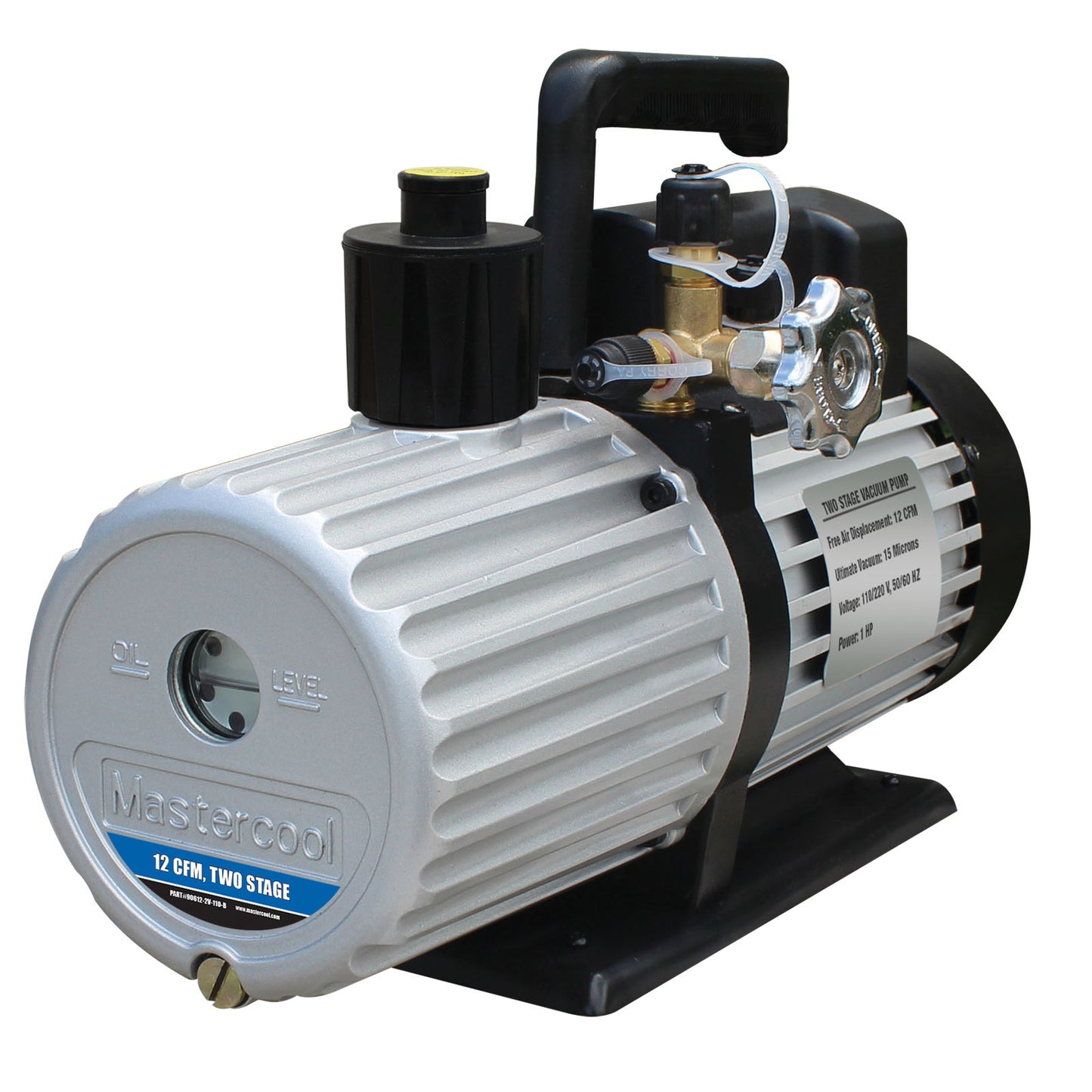

Mastercool 90612-2V-220B Two Stage Vacuum Pump 12 CFM Dual Voltage 110 and 220 Volt.

Expertly designed for maximum performance, the Mastercool Dual Voltage Vacuum Pump is a powerful and versatile tool for any professional. With a 12 CFM two-stage pump and the ability to switch between 110 and 220 volts, it offers top-of-the-line efficiency for all your vacuuming needs.

This model is ideal for extensive air conditioning and refrigeration systems. The 1/2 horsepower motor makes cold-condition start-up quick and easy. This quiet-running two-stage vacuum pump features a three-port manifold valve for system isolation (1/4 inch FL, 3/8 inch FL, and 1/2 inch ACME). It is switchable from 110 to 220 Volts simply by the flick of a switch!

Specifications:

• Mastercool 90612-2V-220B Two Stage Vacuum Pump 12 CFM Dual Voltage 110 and 220 Volt
• This model is ideal for extensive air conditioning and refrigeration systems.
• The 1/2 horsepower motor makes cold conditions start up quickly and easily.
• This quiet-running two-stage vac pump features a three-port manifold valve for system isolation (1/4 inch FL, 3/8 inch FL & 1/2 inch ACME)
• Switchable from 110 volts to 220v simply by the flick of a switch!

90612-2V-220-B

• No. of Stages: 2
• Free Air Displacement: 340 lit/min / 283 lit/min
• Ultimate Vacuum: 15 Microns
• Pump Motor: 1 HP
• Pump Speed: 1440 RPM
• Electrical Specs: 110/220 V, 50/60 Hz
• Power Cord: 220 V Cable (Shuko)
• Shipping Weight: 35 lbs (15.43 kg)
• Dimensions in cm: 39 x 18 x 27

SERVICE INFORMATION:
Oil Capacity: 18 oz / 536 ml
Replacement Cartridge: 90112-B
