Mastercool 55800 — Intellasense Electronic Leak Detector (R1234yf, R32, R410a)

Intellasense™ Electronic Leak Detector — R1234yf, R32, R410a Approved

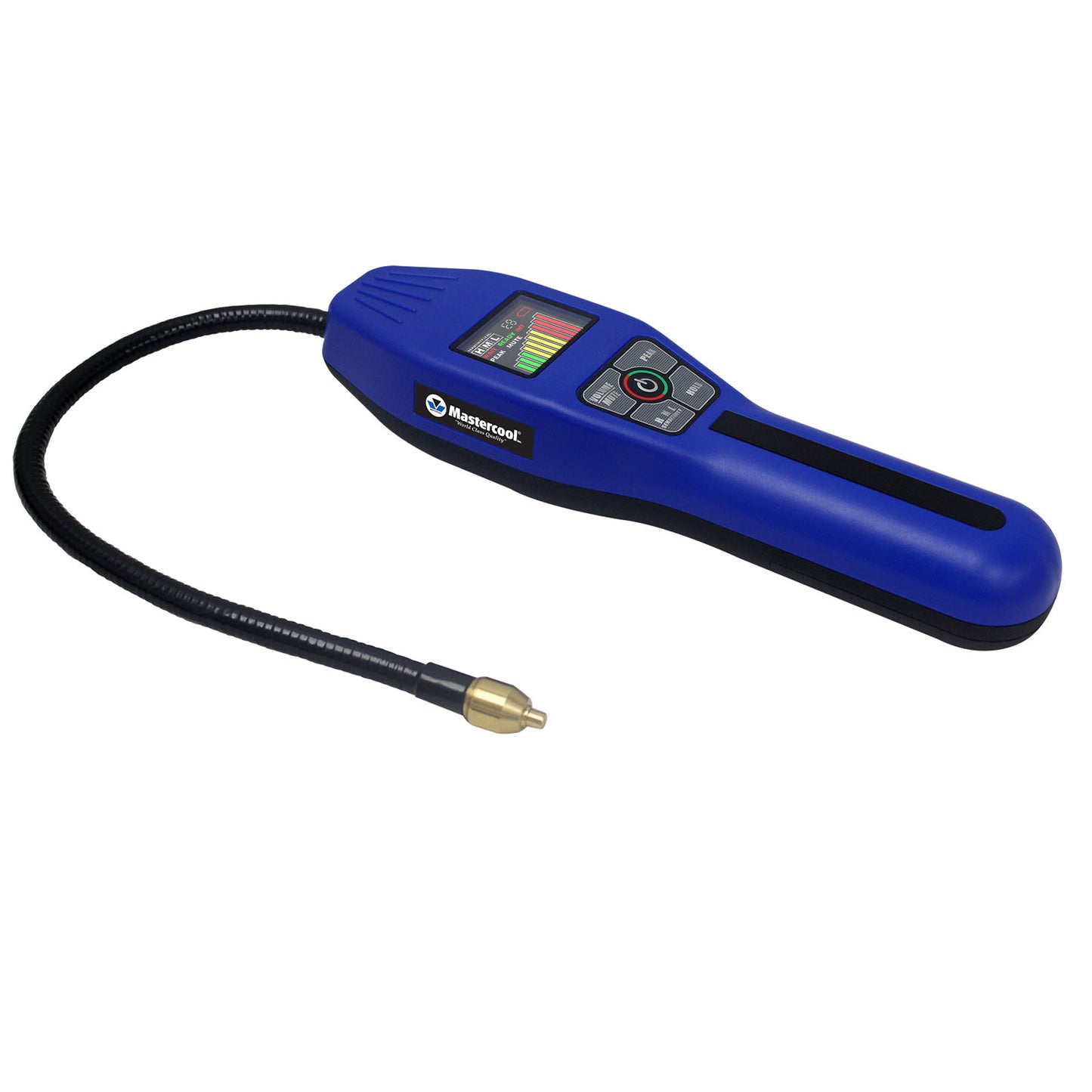

The Mastercool 55800 Intellasense is a professional electronic refrigerant leak detector designed for modern refrigerants including R1234yf, R32, and R410a. Featuring an advanced metal oxide sensor, 15.5" flexible probe, and three sensitivity levels, the Intellasense provides accurate, reliable leak detection for automotive A/C, HVAC/R, and commercial refrigeration applications. Meets SAE J2791, SAE J2913, and EN 14624 standards for professional refrigerant leak detection.

Advanced Metal Oxide Sensor Technology

The Intellasense uses a sophisticated metal oxide sensor that provides:

• High Sensitivity: Detects leaks as small as 0.1 oz/year (3g/year)
• Fast Response: Quick detection minimises diagnostic time
• Multi-Refrigerant Capability: Works with all common refrigerants
• Long Sensor Life: Durable sensor for extended service
• Reliable Performance: Consistent detection in workshop environments

Key Features

• 15.5" Flexible Probe: Reaches difficult areas and tight spaces
• 3 Sensitivity Levels: Adjustable sensitivity for different leak sizes and environments

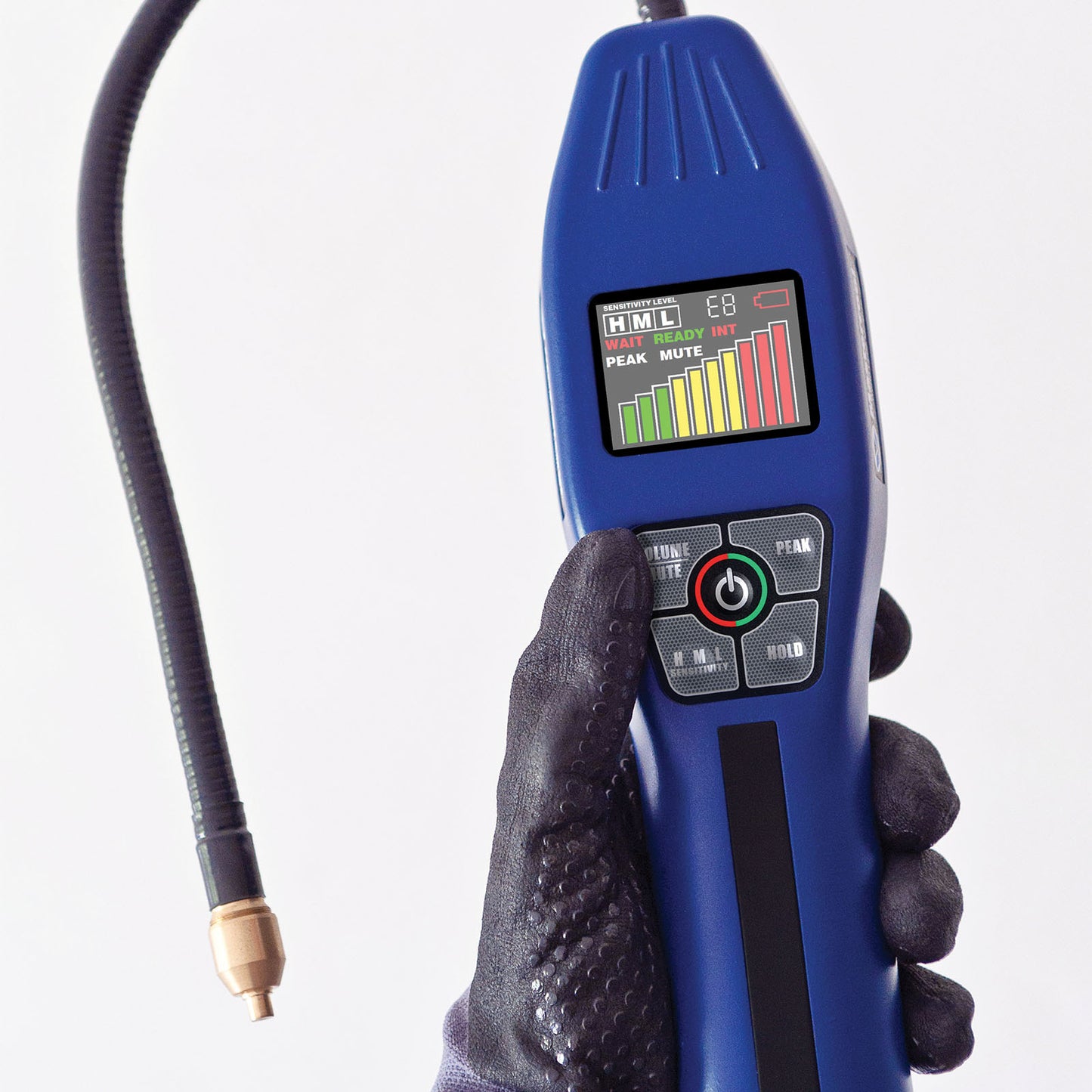

• Visual & Audible Alarms: LED indicators and speaker alert when leak is detected
• Automatic Zeroing: Self-calibrates to ambient refrigerant levels
• Tick Rate Indication: Faster ticking as probe approaches leak source
• Headphone Jack: Use headphones in noisy environments
• Replaceable Sensor: 55800-SEN Sensor extends tool life
• Replaceable Probe: 55800-PR Probe for damaged probes
• Battery or Mains Powered: Flexible power options for workshop or mobile use
• Durable Construction: Built for daily professional use
• Ergonomic Design: Comfortable for extended use

Technical Specifications

• Model: 55800
• Sensor Type: Metal oxide
• Probe Length: 15.5" (39.4 cm) flexible
• Sensitivity Levels: 3 (adjustable)
• Minimum Detectable Leak: 0.1 oz/year (3g/year)
• Refrigerants: All common refrigerants including R1234yf, R32, R410a, R134a, R404a, R22, etc.
• Standards Compliance: SAE J2791, SAE J2913, EN 14624
• Alarms: Visual (LED) and audible (speaker/headphone)
• Power: Battery or mains (AC adapter)
• Headphone Jack: 3.5mm for use in noisy environments
• Weight: 10 kg
• SKU: 55800
• HS Code: 84189910

Approved Refrigerants

The Intellasense 55800 is specifically approved for modern refrigerants:

• R1234yf: Modern automotive A/C refrigerant (mildly flammable)
• R32: Next-generation HVAC refrigerant
• R410a: Common residential and light commercial A/C refrigerant
• Plus all traditional refrigerants: R134a, R404a, R407c, R22, R12, R502, etc.

Standards Compliance

• SAE J2791: Automotive A/C refrigerant leak detection standard
• SAE J2913: R1234yf specific leak detection requirements
• EN 14624: European standard for refrigerant leak detection

Meeting these standards ensures the Intellasense is suitable for professional automotive and HVAC/R leak detection applications.

Applications

• R1234yf automotive A/C leak detection

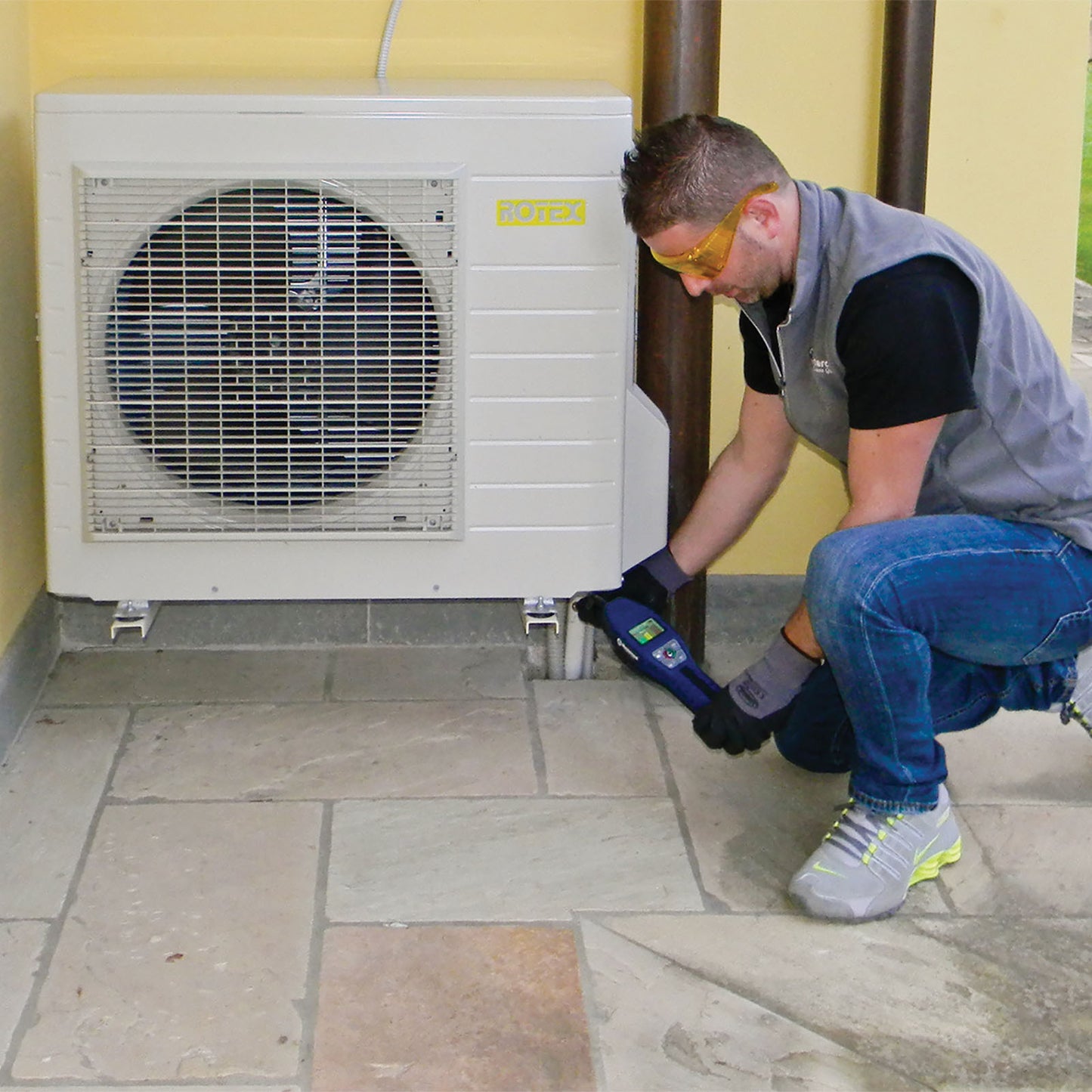

• R32 and R410a HVAC system leak detection
• Commercial refrigeration leak detection
• Automotive A/C service and diagnostics
• HVAC/R installation and maintenance
• Pre-service leak checks
• Post-repair leak verification
• Preventative maintenance inspections

Available Replacement Parts & Accessories

Essential Replacement Parts:

• 55800-SEN — Replacement Sensor (for 55800, 55850, 55975)
• 55800-PR — Replacement Probe

Optional Accessories:

• 55800-SPK — Replacement Speaker
• 55800-KEY — Replacement Keypad (for 55800, 55850)
• 55800-VL — Leak Test Vial (not calibrated, for testing detector response)

Why Choose the Intellasense 55800?

• R1234yf Approved: Meets SAE J2913 for modern automotive A/C systems
• Multi-Refrigerant: Works with all common refrigerants including R32 and R410a
• High Sensitivity: Detects leaks as small as 0.1 oz/year (3g/year)
• Flexible Probe: 15.5" length reaches difficult areas
• Adjustable Sensitivity: 3 levels for different leak sizes and environments
• Standards Compliant: Meets SAE J2791, J2913, and EN 14624
• Serviceable Design: Replaceable sensor, probe, and other components
• Professional Quality: Built for daily workshop use
• Dual Power Options: Battery or mains for flexibility
• Proven Reliability: Mastercool quality and performance

Perfect For

• Automotive A/C specialists servicing R1234yf vehicles
• HVAC/R contractors working with R32 and R410a systems
• Commercial refrigeration technicians
• Mobile A/C service operations
• Workshop and service centres
• Fleet maintenance facilities
• Technicians requiring standards-compliant leak detection

Operation

1. Power on the Intellasense leak detector
2. Allow sensor to warm up and auto-zero to ambient conditions
3. Select appropriate sensitivity level (1, 2, or 3)
4. Move probe tip slowly around suspected leak areas (fittings, connections, hoses)
5. Listen for increasing tick rate and watch LED indicators
6. When leak is detected, tick rate increases and LED illuminates
7. Pinpoint exact leak location by moving probe slowly
8. Mark leak location for repair
9. Verify repair by re-testing after service

Leak Detection Best Practices

• Start with Low Sensitivity: Use level 1 in contaminated environments, increase as needed
• Move Probe Slowly: Allow sensor time to respond to refrigerant presence
• Check Common Leak Points: Fittings, connections, hoses, Schrader valves, compressor seals
• Use Headphones: In noisy workshop environments for better audible detection
• Allow Warm-Up Time: Sensor performs best after brief warm-up period
• Keep Probe Clean: Wipe probe tip regularly to maintain sensitivity
• Test in Clean Air: Move away from leak area periodically to allow sensor to reset

Maintenance

• Sensor Replacement: Replace sensor when sensitivity decreases (typically after extended use)
• Probe Care: Keep probe clean and free from damage
• Storage: Store in protective case in clean, dry environment
• Battery Maintenance: Replace batteries as needed or use mains power
• Regular Testing: Test detector response periodically with leak test vial
• Keep Clean: Wipe exterior and probe regularly

Why Electronic Leak Detection?

Electronic leak detectors like the Intellasense offer significant advantages over traditional methods:

• High Sensitivity: Detects smaller leaks than bubble solutions or UV dyes
• Immediate Results: No waiting for dye circulation or bubble formation
• Pinpoint Accuracy: Locates exact leak source quickly
• Clean Method: No messy dyes or solutions
• Professional Standard: Industry-standard method for leak detection
• Cost-Effective: Saves time and reduces diagnostic costs
• Versatile: Works with all refrigerants and system types

R1234yf Leak Detection Requirements

R1234yf is a mildly flammable refrigerant used in modern vehicles. Professional leak detection is essential because:

• Safety: Mildly flammable refrigerant requires careful handling
• Cost: R1234yf is expensive - even small leaks waste costly refrigerant
• Environmental: Leak detection prevents refrigerant emissions
• System Performance: Leaks reduce A/C performance and efficiency
• Standards Compliance: SAE J2913 requires approved leak detectors for R1234yf service

The Intellasense 55800 meets SAE J2913 requirements for R1234yf leak detection, making it suitable for professional automotive A/C service.

Metal Oxide Sensor Advantages

Metal oxide sensors offer several benefits for refrigerant leak detection:

• Multi-Refrigerant: Responds to all common refrigerants
• High Sensitivity: Detects very small leaks
• Fast Response: Quick detection speeds up diagnostics
• Durable: Long sensor life with proper care
• Reliable: Consistent performance in workshop environments
• Replaceable: Sensor can be replaced when sensitivity decreases

Professional Quality: Mastercool Intellasense electronic leak detectors are built to professional standards for accurate, reliable refrigerant leak detection in demanding automotive and HVAC/R workshop environments. Approved for R1234yf, R32, and R410a. Meets SAE J2791, SAE J2913, and EN 14624 standards.
