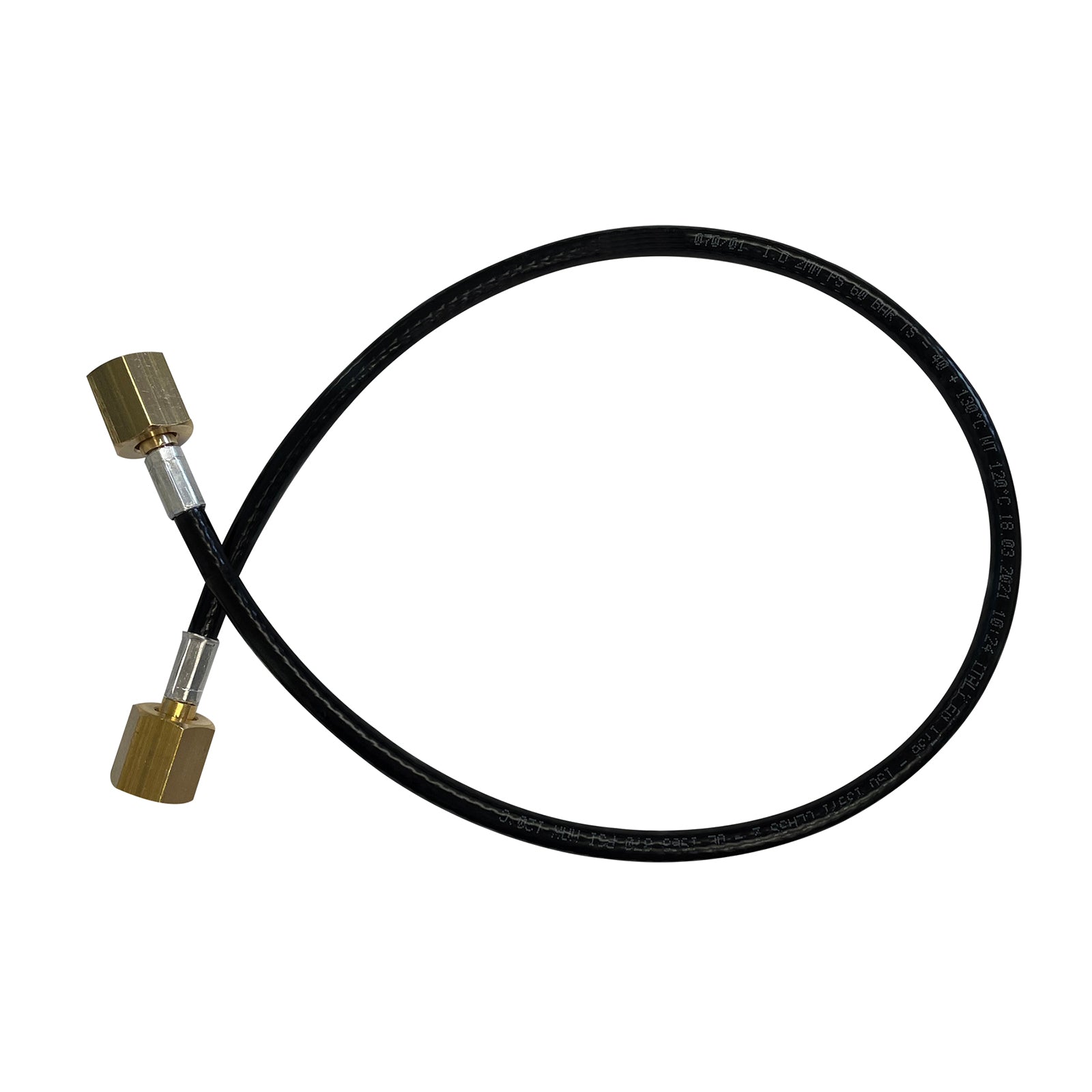

44124-STR 12" (30cm) Thermoplastic Capillary Tube Assembly Straight x Straight

Professional 12" (30cm) thermoplastic capillary tube assembly with straight x straight fittings. EN 1736 and ISO 13971 Class 2 certified. No brazing, flaring or bending required. Provides noise reduction and vibration absorption. Max pressure 60 bar (870 psi). Working temperature 120°C. Essential for quick, reliable connections in refrigeration systems.

Key Features:

• 12" (30cm) thermoplastic capillary assembly
• Straight x straight fittings
• EN 1736 and ISO 13971 Class 2 certified
• No brazing, flaring or bending required
• Noise reduction and vibration absorption
• Excellent impermeability
• Max pressure: 60 bar (870 psi)
• Working temperature: 120°C
• Pre-assembled for quick installation

Specifications:

• Length: 12" (30cm)
• Fittings: Straight x straight
• Inner Diameter: 2mm
• Outer Diameter: 5.9mm
• Tolerances: ±0.1mm
• Bending Radius: 10mm
• Max Allowable Pressure: 60 bar (870 psi)
• Working Temperature: 120°C
• Min/Max Temperature: -40 to 130°C
• Weight: 25 g/m
• Standards: EN 1736, ISO 13971 Class 2

Applications:

• Pressure switch connections
• Gauge connections
• Oil return circuits
• Oil leveling systems
• Refrigeration and A/C systems

Benefits:

EN 1736 and ISO 13971 Class 2 certification ensures professional-grade quality. No brazing, flaring or bending required - simply connect for quick installation. Provides essential noise reduction and vibration absorption in refrigeration systems. Excellent impermeability prevents refrigerant leaks. 60 bar (870 psi) max pressure handles all common refrigerants. Wide temperature range (-40 to 130°C) with 120°C working temperature. Compact 12" (30cm) length ideal for standard refrigeration applications. 2mm inner diameter with tight ±0.1mm tolerances ensures consistent flow. Essential for professional HVAC/R technicians who need certified, quick-connect capillary solutions.

12" (30cm) thermoplastic capillary assembly. Straight x straight. No brazing required. 60 bar, 120°C. EN 1736, ISO 13971 Class 2 certified. Professional tool.
