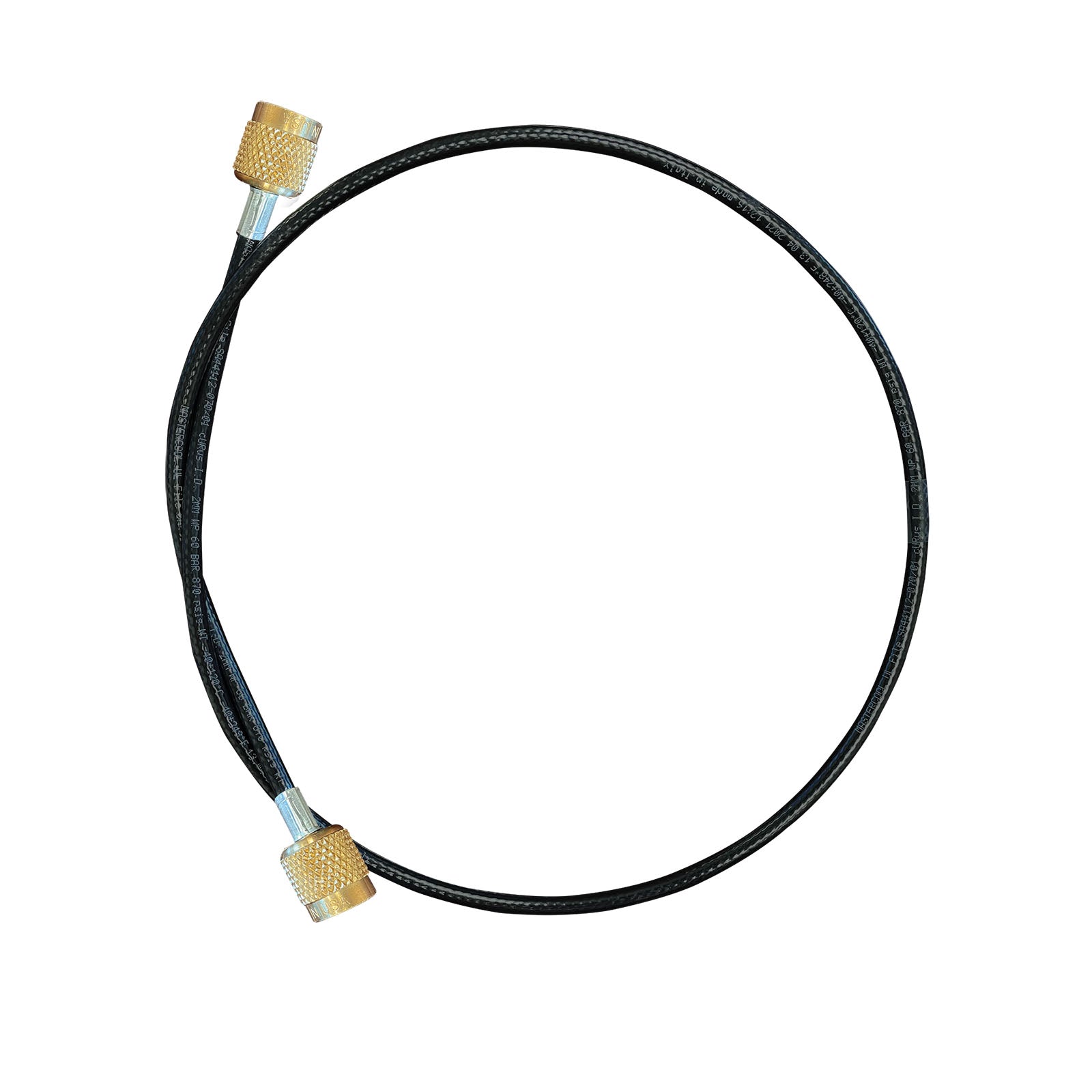

44241-TPC Thermoplastic Service Hose 24" (600mm) with 1/4" SAE Female Swivel Fittings

Professional 24" (600mm) thermoplastic service hose with 1/4" SAE female swivel fittings. EN 1736 and ISO 13971 Class 2 certified. Inner diameter 2mm, outer diameter 5.9mm. Max allowable pressure 60 bar (870 psi). Working temperature 120°C. Flexible, chemical-resistant construction for professional HVAC/R service.

Key Features:

• 24" (600mm) thermoplastic hose
• 1/4" SAE female swivel fittings
• EN 1736 and ISO 13971 Class 2 certified
• Max pressure: 60 bar (870 psi)
• Working temperature: 120°C
• Temperature range: -40 to 130°C
• Flexible thermoplastic construction
• Chemical resistant
• Professional-grade quality

Specifications:

• Length: 24" (600mm)
• Fittings: 1/4" SAE female swivel
• Inner Diameter: 2mm
• Outer Diameter: 5.9mm
• Tolerances: ±0.1mm
• Bending Radius: 10mm
• Max Allowable Pressure: 60 bar (870 psi)
• Working Temperature: 120°C
• Min/Max Temperature: -40 to 130°C
• Weight: 25 g/m
• Standards: EN 1736, ISO 13971 Class 2

Applications:

• Individual hose replacement
• Custom hose configurations
• Refrigerant service connections
• High-temperature applications
• Professional service work

Benefits:

EN 1736 and ISO 13971 Class 2 certification ensures professional-grade quality and safety. Thermoplastic construction provides excellent flexibility (10mm bending radius) and chemical resistance. Swivel fittings prevent hose twisting during use. 60 bar (870 psi) max pressure handles all common refrigerants safely. Wide temperature range (-40 to 130°C) with 120°C working temperature covers extreme conditions. Single 24" (600mm) hose allows individual replacement or custom configurations. 2mm inner diameter with tight ±0.1mm tolerances ensures consistent flow. Essential for professional HVAC/R technicians who need certified, high-performance service hoses for replacement or custom setups.

24" (600mm) thermoplastic hose. 1/4" SAE female swivel fittings. 60 bar, 120°C working temp. EN 1736, ISO 13971 Class 2 certified. Professional quality.
