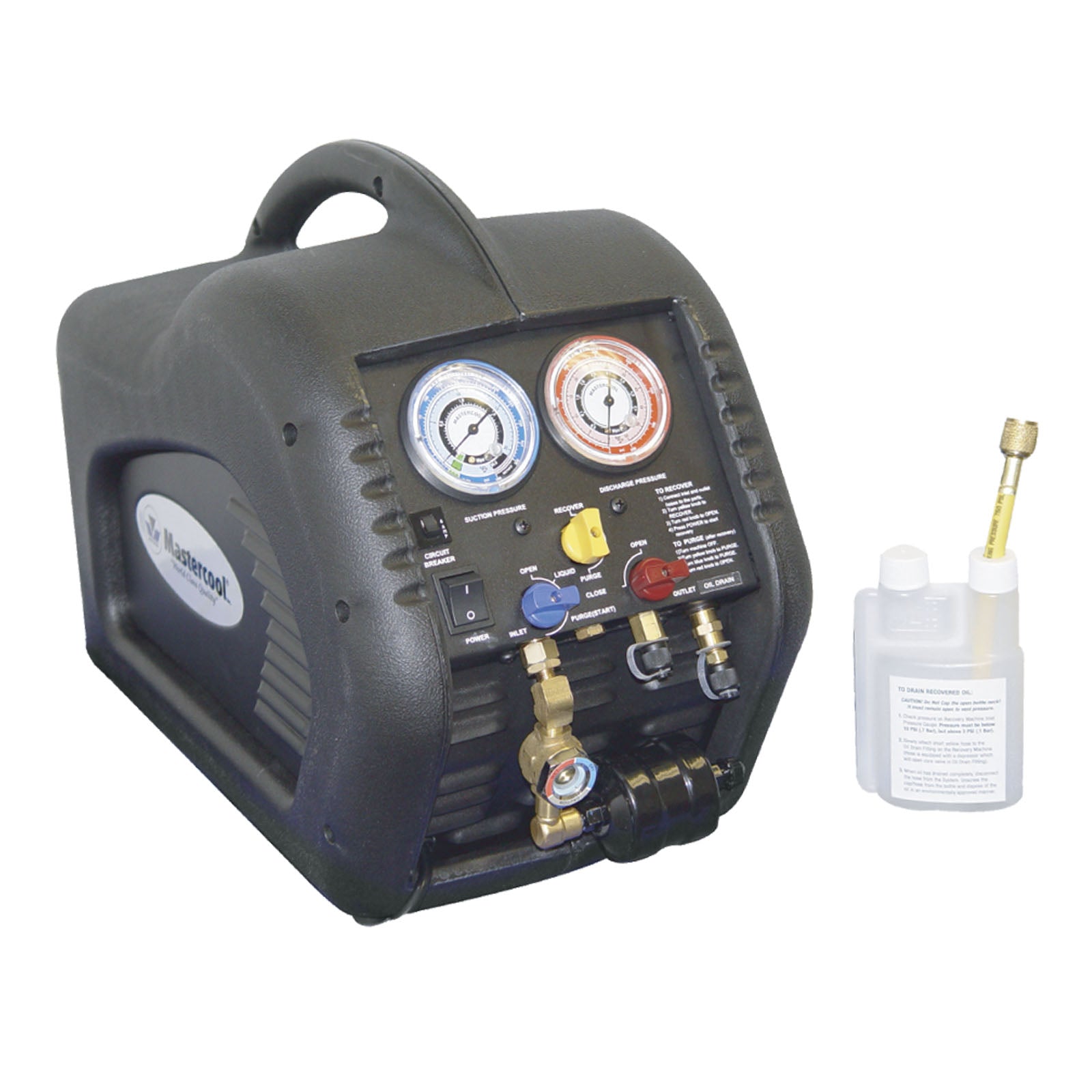

69200-220

Complete Recovery & Recycle System with Oil Separation

This unit offers all the same functions and features as the reliable 69000 recovery machine. In addition, Mastercool has strategically placed an oil separation module inside the unit that will dispense used oil effortlessly. Together with its filter dryer and sight glass this unit allows for the technician to actually clean the used refrigerant and potentially re-use.

Key Features

• Oil separation module strategically placed inside the unit dispenses used oil effortlessly
• Filter dryer and sight glass included allows technicians to clean used refrigerant for potential re-use
• ½ HP oil-less compressor delivers high recovery rates and oil-free operation
• High volume cooling fan prevents overheating and ensures consistent performance in high-temperature environments
• Automatic low-pressure cut-off switch halts recovery once complete, protecting the compressor from damage
• Works with all refrigerants including CFCs, HCFCs, HFCs (R134a, R22, and R410A)
• Stainless-steel ball valve manifold with pressure readings in PSI, BAR and MPA
• Compact, portable design - 43 x 25 x 30 cm (17" x 10" x 12")
• Reinforced hard plastic case protects components during transport

Technical Specifications

• Voltage: 220V / 50-60Hz (European specification)
• Compressor Power: ½ HP oil-less motor
• Recovery Rate:
  • Direct vapour: up to 0.2 kg/min (0.44 lb/min)
  • Direct liquid: up to 1.19 kg/min (2.62 lb/min)
  • Push/pull: up to 5.44 kg/min (12 lb/min)
• Operating Temperature Range: 0 to 50°C (32 to 122°F)
• Weight: 17.2 kg (38 lbs)
• Dimensions: 43 x 25 x 30 cm (17" L x 10" W x 12" H)
• Refrigerants Supported: CFCs, HCFCs, HFCs (R134a, R410A, R22, and others)
• Material: High-Density Polyethylene (HDPE) hard plastic case
• Made in USA

Applications

Essential for HVAC contractors, automotive air conditioning specialists, and refrigeration technicians who need to recover and recycle refrigerant for re-use. Ideal for workshops and field service work where cleaning and recycling refrigerant reduces costs and environmental impact. Perfect for professionals who want to recover, clean, and potentially re-use refrigerant rather than simply storing contaminated refrigerant for disposal.

Benefits

Oil separation module allows technicians to dispense used oil effortlessly, keeping refrigerant clean. Filter dryer and sight glass enable cleaning of used refrigerant for potential re-use, reducing refrigerant costs and environmental waste. Automatic low-pressure cut-off eliminates the need to monitor recovery progress. High-volume cooling fan ensures consistent performance even in hot workshop environments. Oil-less compressor delivers clean recovery without oil contamination. Quick recovery rates up to 5.44 kg/min (12 lb/min) in push/pull mode reduce service time. Compact, lightweight design makes it easy to transport between job sites. Essential for professional technicians who want to recover, recycle, and re-use refrigerant whilst reducing costs and environmental impact.

Replacement Parts Available:

• 69500-DR: Replacement Filter Dryer for 69200/69350/69500

Related Models Available:

• 69000-220: Professional Refrigerant Recovery System (recovery only, no oil separation)
• 69200-220: Complete Recovery & Recycle System with Oil Separation (this model)
• 69350-220: TWIN TURBO Refrigerant Recovery-Recycling Unit (higher capacity)

Complete recovery and recycle system with oil separation. Genuine Mastercool quality. Official UK distributor stock.
