Mastercool 69900-220 — MasterCleanse Flush Machine (220V, 4 gal/min)

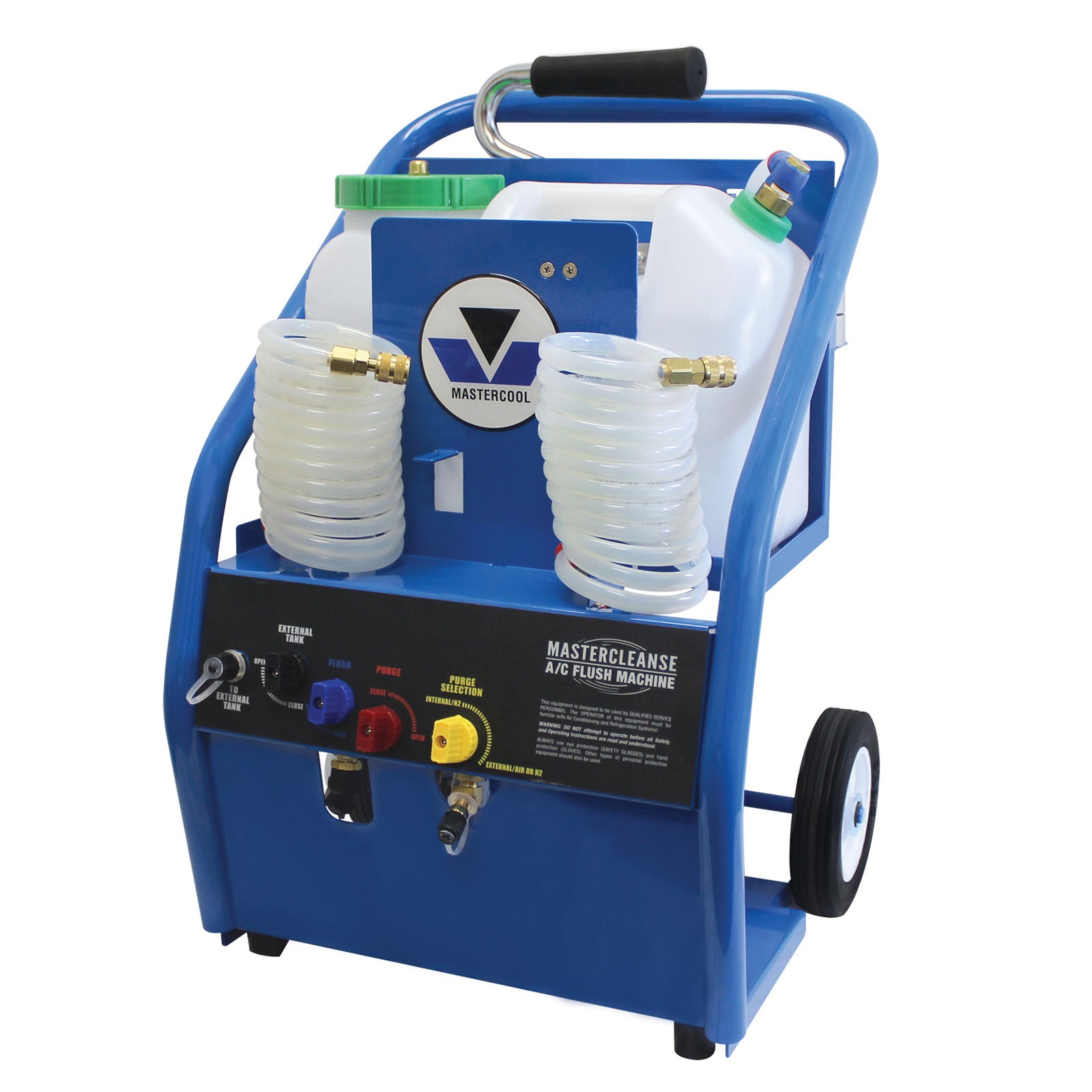

MasterCleanse Flush Machine

Mastercool introduces its new "MasterCleanse" large volume flush machines designed to flush all HVAC/R and automotive systems. "MasterCleanse" will be commonly used for removal of all solids and residues caused by breakage of compressor or filters. Designed with durable roll-away wheels and handle, this machine can conveniently move as needed.

Key Features

• Stainless steel ball valve controls for precise flow management
• 1/4" SAE connection for standard HVAC/R and automotive systems

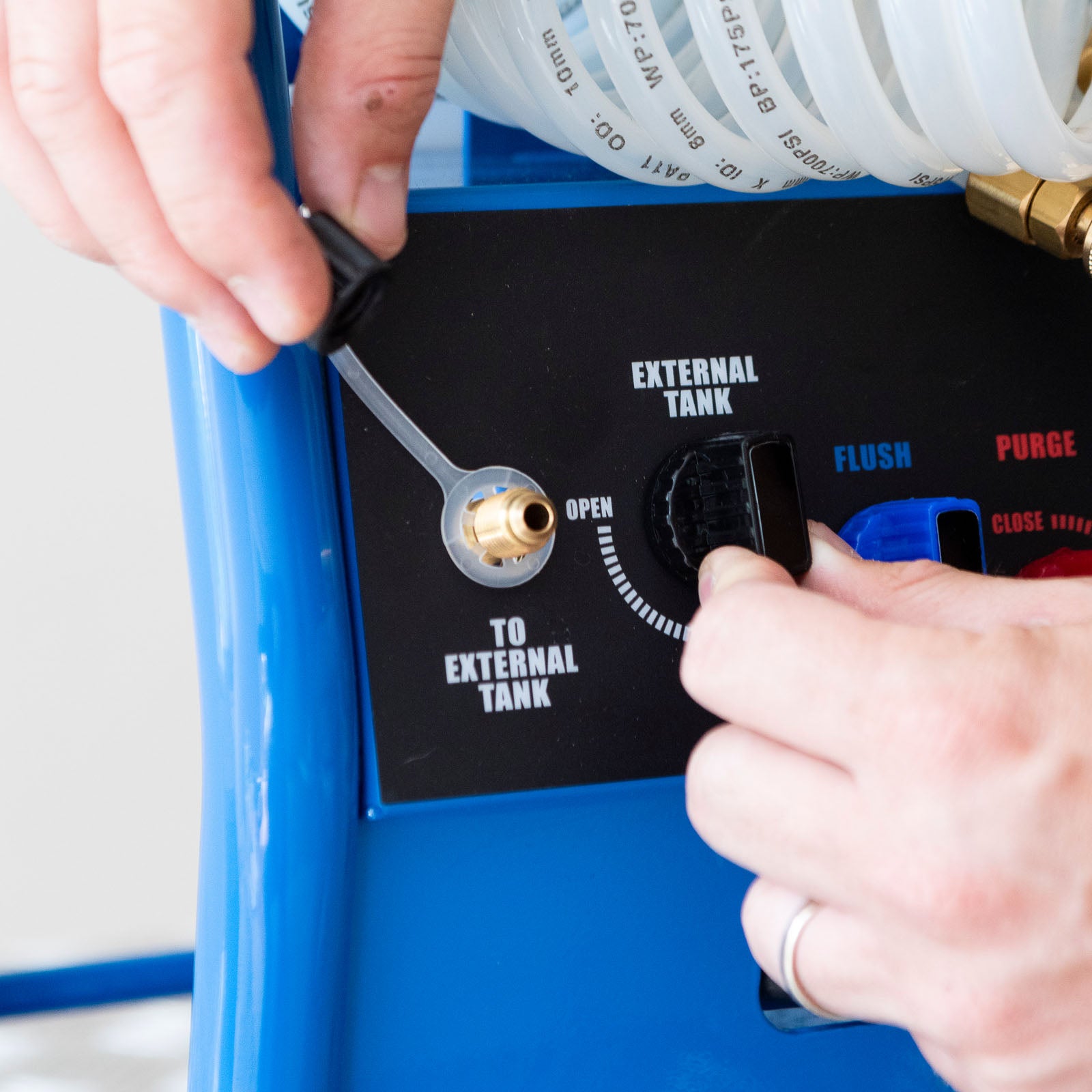

• Additional external container connection for expanded capacity
• External nitrogen bottle connection for pressurised flushing
• Pump equipped with mechanical seal and PTFE gasket for durability and chemical resistance

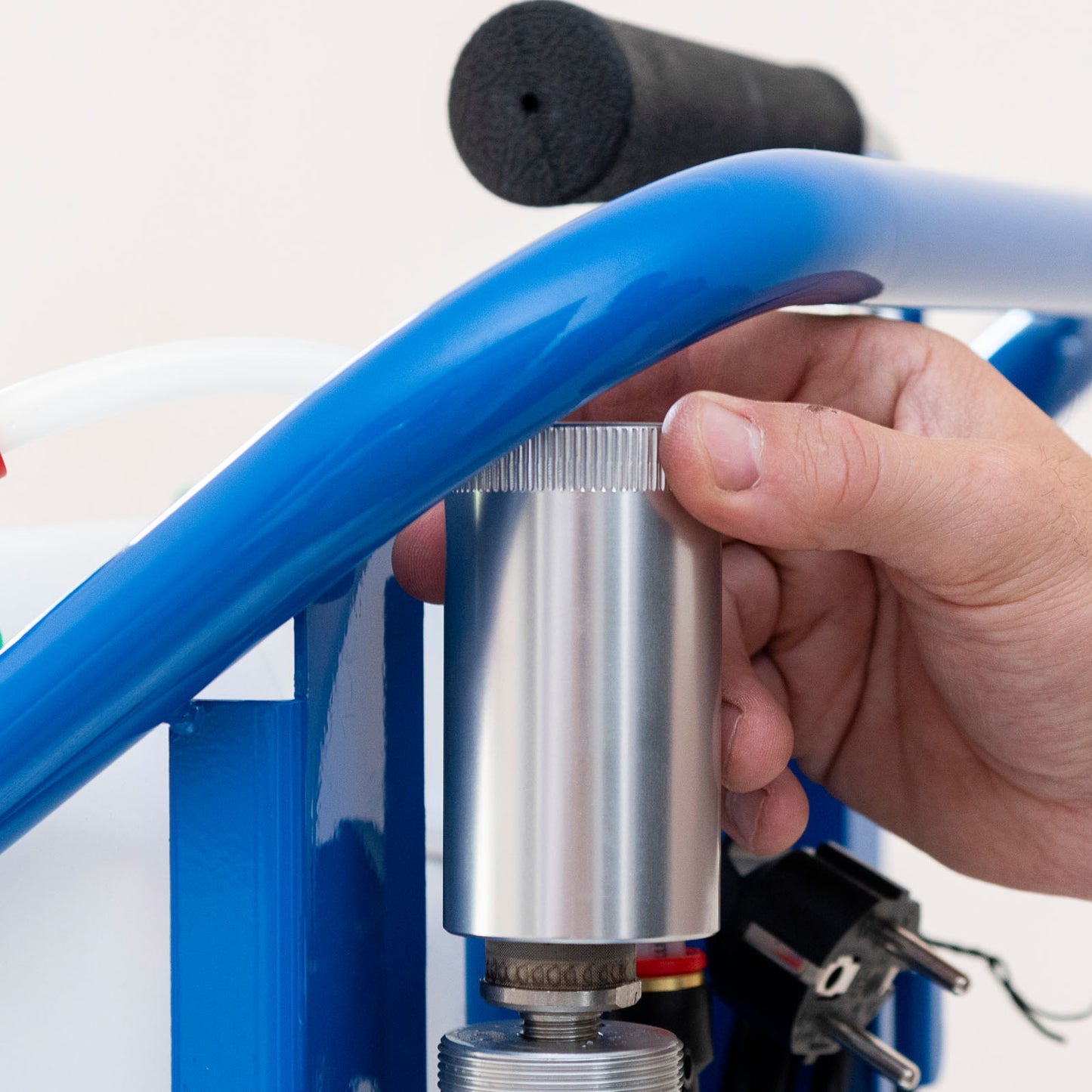

• Mechanical filter present at suction side protects pump from debris

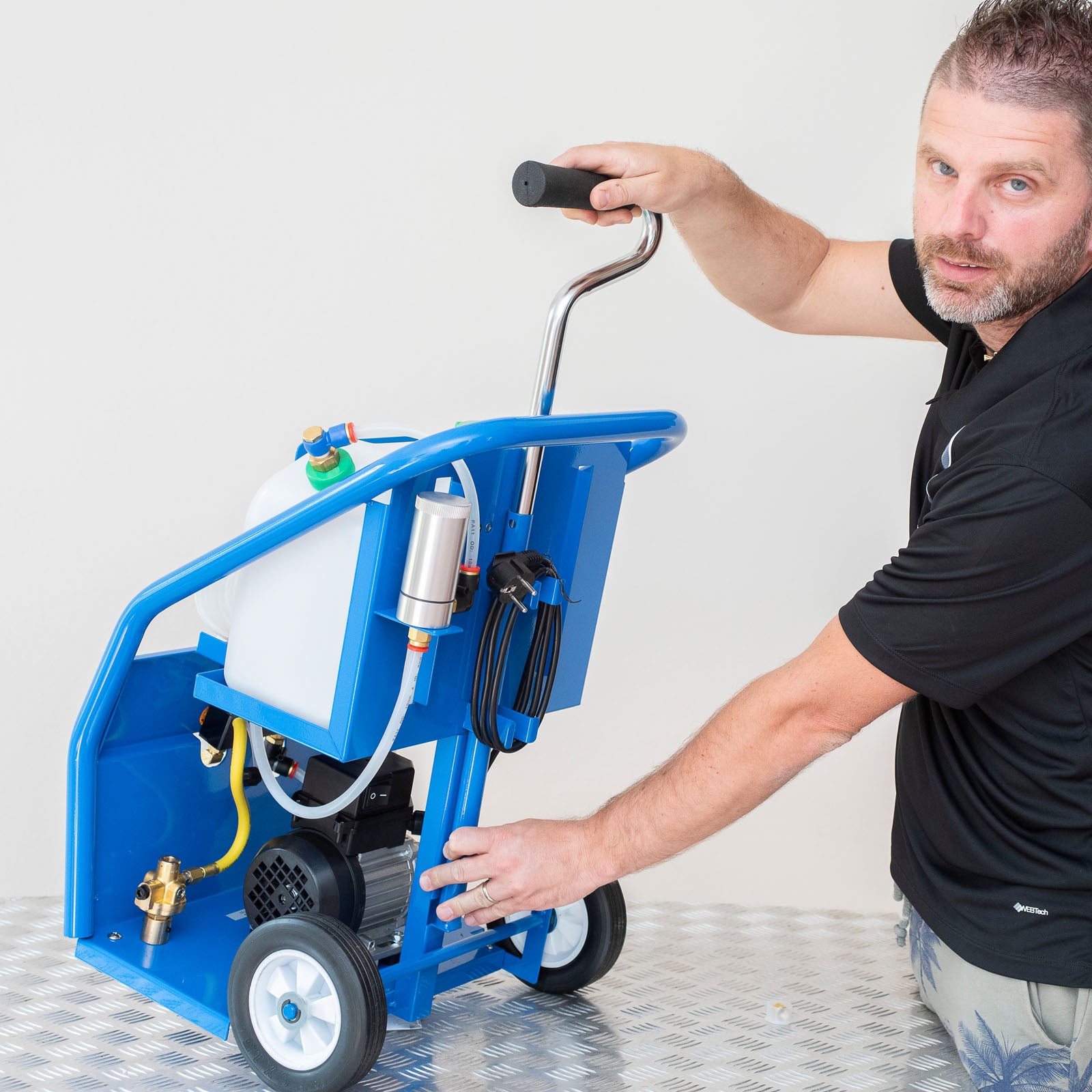

• Durable roll-away wheels and handle for easy mobility around workshop
• Large 2.6 gal (10 l) flush container for extended flushing operations
• 9 ft (3 m) flexible, clear coiled hoses for visibility during flushing

Technical Specifications

• Voltage: 220-240V / 50-60Hz (European specification)
• Pump Flow Rate: 4 gal/min (16 l/min)
• Pump Motor: 300 watts
• Pump Horsepower: 0.28 HP (220-240V/50-60Hz)
• Full Load Amperage: 1.7 amps (220-240V/50-60Hz)
• Flush Container: 2.6 gal (10 l)
• Hoses: 9 ft (3 m) flexible, clear coiled
• Dimensions: 381 x 406 x 609 mm (15" L x 16" W x 24" H) / with handle extended 914 mm (36" H)
• Weight: 19 kg (42 lbs)

Applications

Essential for HVAC/R contractors and automotive air conditioning specialists who need to flush systems after compressor failure or filter breakage. Ideal for removing all solids and residues from air conditioning systems, heat pumps, and refrigeration equipment. Perfect for workshops that perform system repairs where contamination from failed components requires thorough flushing before installing new parts. Commonly used after compressor burnout, filter drier failure, or any situation where debris has entered the refrigerant circuit.

Benefits

Large 4 gal/min (16 l/min) flow rate ensures thorough, efficient flushing of HVAC/R and automotive systems. 2.6 gal (10 l) flush container provides extended operation without frequent refilling. External container connection allows for expanded capacity on larger jobs. External nitrogen bottle connection enables pressurised flushing for stubborn contamination. Mechanical filter at suction side protects pump from debris damage. Pump equipped with mechanical seal and PTFE gasket ensures durability and chemical resistance. Stainless steel ball valve controls provide precise flow management. 9 ft (3 m) flexible, clear coiled hoses allow visibility during flushing to confirm cleanliness. Durable roll-away wheels and handle make it easy to move around the workshop. Essential for professional technicians who need to thoroughly flush systems after component failure to prevent damage to new parts.

Replacement Parts Available:

• 69900-FS: Replacement Filter for 69900/69901
• 69900-FSO: O-Ring for 69900

Related Models Available:

• 69900-220: MasterCleanse Flush Machine, 220-240V 50-60Hz (this model)
• 69901-220: MasterCleanse Flush Machine with internal nitrogen regulator for European standard 1 litre nitrogen bottle

MasterCleanse flush machine for HVAC/R and automotive systems. Genuine Mastercool quality. Official UK distributor stock.
