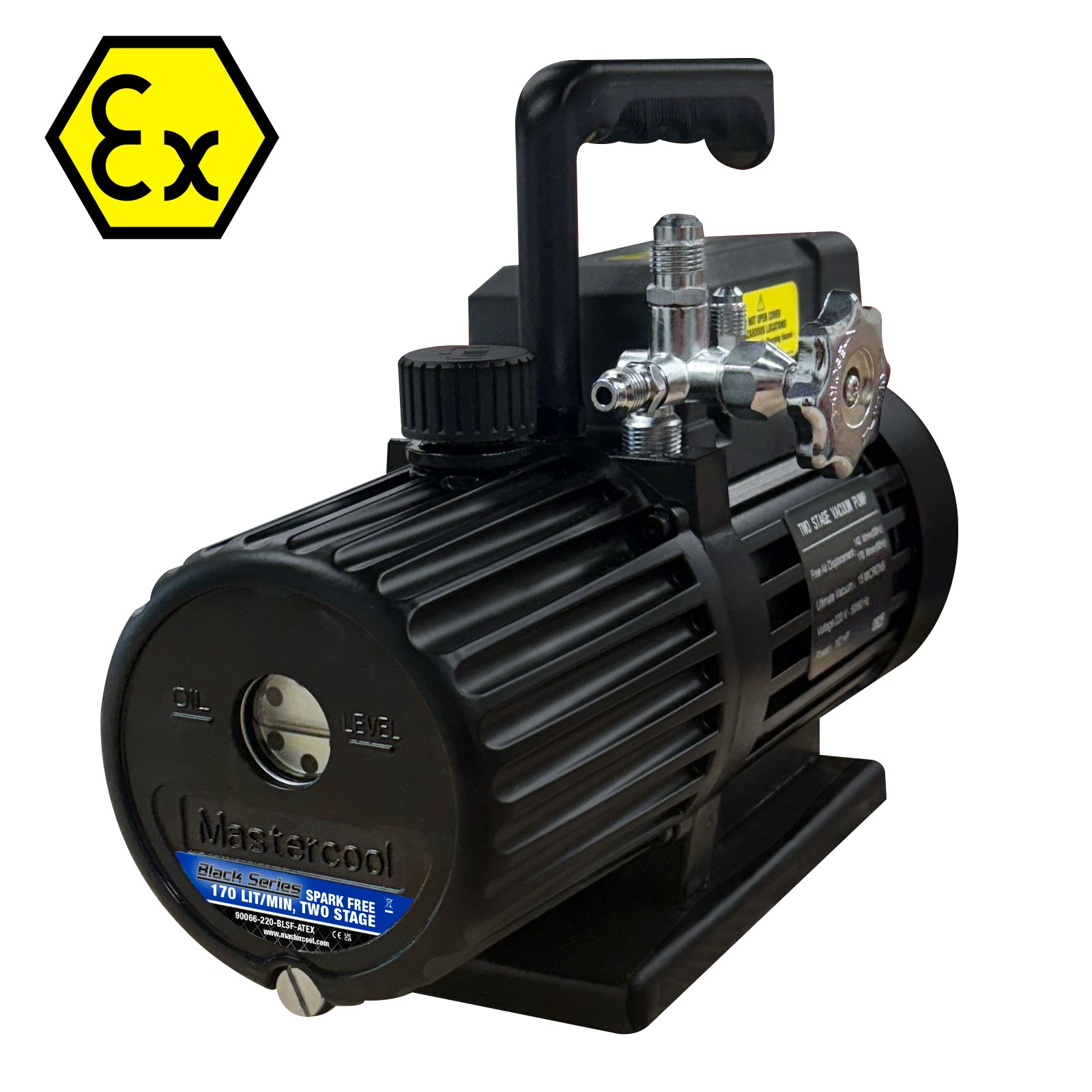

Mastercool 90066-220-BLSF-ATEX — Vac.Pump Spark Free 2 st.142 lit/min 50Hz - 1/2 HP

ATEX-Approved Spark-Free Vacuum Pump for Hazardous Environments

The Mastercool 90066-220-BLSF-ATEX Black Series Two-Stage Vacuum Pump delivers professional-grade evacuation performance with ATEX certification for use in potentially explosive atmospheres. Engineered with spark-free construction for safe operation in hazardous locations where flammable refrigerants or gases may be present.

Key Features

• ATEX certified — Approved for use in ATEX zones with potentially explosive atmospheres
• Spark-free design — Eliminates ignition sources for safe operation with flammable refrigerants (A2L, A3)
• Two-stage performance — Achieves deep vacuum down to 15 microns for thorough system evacuation
• 170 litres/min displacement — High-capacity pumping for faster evacuation of large systems
• 1/2 HP motor — Powerful 220V 50Hz motor for reliable continuous operation
• Black Series construction — Premium aluminium housing with corrosion-resistant finish
• Gas ballast valve — Handles moisture-laden systems without oil contamination
• Large oil reservoir — Extended service intervals with easy-view oil sight glass
• Dual intake ports — 1/4" and 3/8" SAE connections for versatile applications

Technical Specifications

• Displacement: 170 litres/min (6.0 CFM)
• Stages: Two-stage
• Ultimate vacuum: 15 microns
• Motor: 1/2 HP, 220V, 50Hz
• Intake ports: 1/4" and 3/8" SAE
• Oil capacity: 710ml
• Dimensions: 430 x 180 x 280mm
• Weight: 18kg
• ATEX certification: II 2G Ex h IIB T4 Gb
• Noise level: <68 dB(A)

ATEX Compliance & Safety

Certified to ATEX Directive 2014/34/EU for equipment intended for use in potentially explosive atmospheres. The spark-free design eliminates electrical arcing and mechanical sparking, making this pump essential for technicians working with A2L mildly flammable refrigerants (R-32, R-454B, R-1234yf) and A3 flammable refrigerants in compliance with F-Gas regulations and safety standards.

Applications

Ideal for professional HVAC/R technicians servicing systems with flammable refrigerants, working in ATEX-classified zones, or requiring certified equipment for insurance and compliance purposes. Suitable for air conditioning, heat pumps, refrigeration systems, and automotive A/C service in hazardous environments.

What's Included

• 90066-220-BLSF-ATEX vacuum pump
• Vacuum pump oil (pre-filled)
• Intake port caps
• Oil drain plug wrench
• User manual with ATEX documentation
