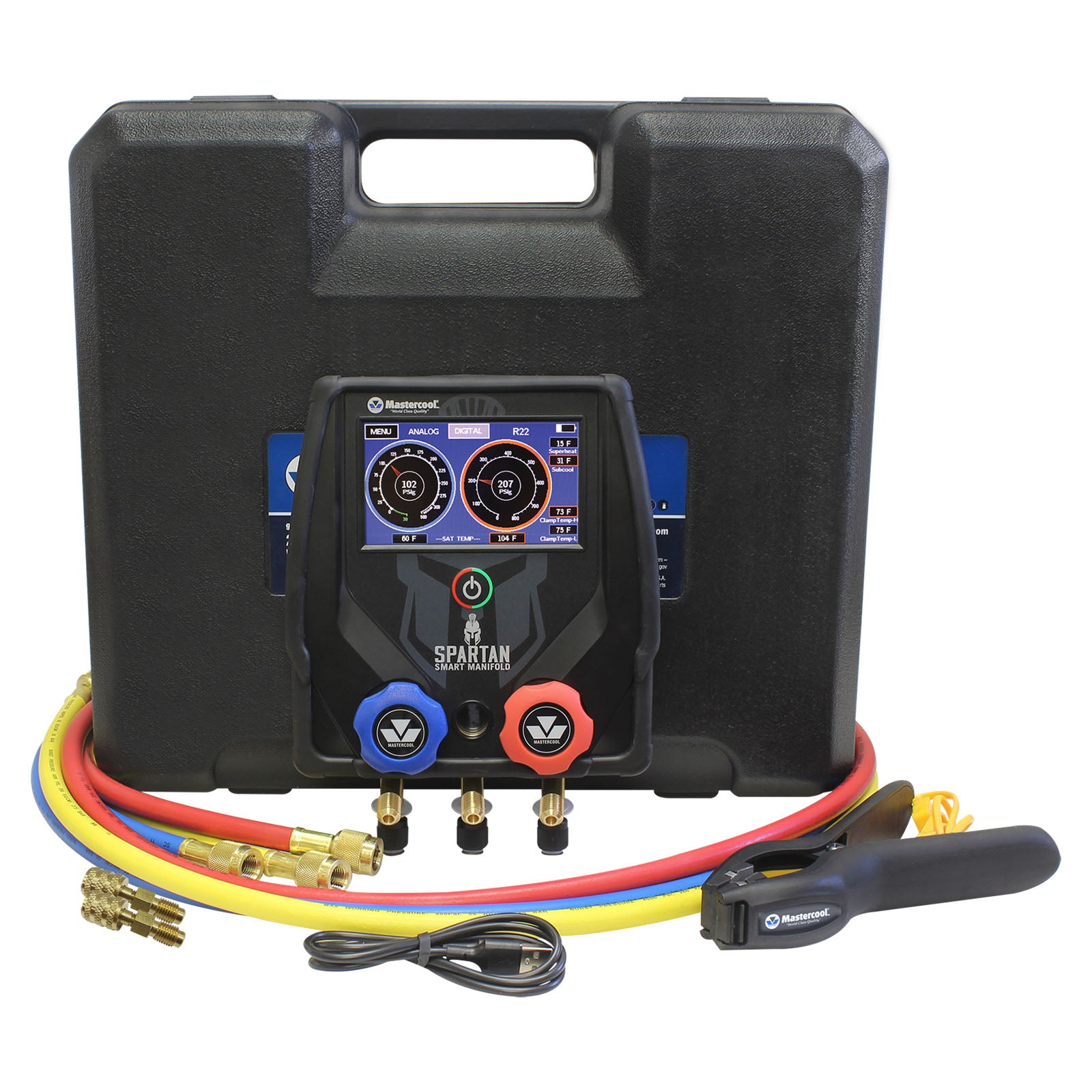

Mastercool 99927-BT-EU SPARTAN Digital 2-Way Manifold with 180cm Hoses, Temperature Clamp and Straight Adapters

Join the SPARTAN revolution. Mastercool's SPARTAN series smart manifold with Bluetooth® wireless technology is equipped with a 4.3" colour touchscreen LCD, allowing you to navigate through all screens and options with a quick slide of your finger. Premium built-in vacuum sensor with accuracy down to 1 micron - no need for additional equipment to properly diagnose and service A/C systems. Displays pressure, vacuum, temperature, and automatically calculates superheat and subcool. Includes data logging and features leak test timers and alarms. Compatible with Mastercool Connect app for full mobility. Over 60 pre-programmed refrigerants including R1234yf. Complete EU set includes 72" (180cm) high pressure hoses with standard fittings, 1 premium temperature clamp, and 2 straight adapter fittings (90413).

Key Features:

• SPARTAN 2-way digital manifold
• 4.3" colour touchscreen LCD display
• Navigate with quick slide of finger
• Premium built-in vacuum sensor (1 micron resolution)
• Bluetooth® wireless technology
• Displays pressure, vacuum, temperature
• Automatically calculates superheat and subcool
• Over 60 pre-programmed refrigerants (including R1234yf)
• Data logging up to 36 hours
• Leak test timers and alarms
• Mastercool Connect app compatible
• 30-36 hours battery life
• Class 1.0 gauge accuracy
• Includes 72" (180cm) high pressure hoses
• Standard fittings
• Includes 1 premium temperature clamp (K-type)
• Includes 2 straight adapter fittings (90413)
• EU specification

Included Refrigerants:

R12, R22, R23, R32, R113, R114, R115, R116, R123, R1234yf, R1234ez, R1270, R124, R134, R134a, R141b, R142b, R143, R143a, R152a, R170, R227ea, R290, R401A, R401B, R404A, R407A, R407B, R407C, R407D, R407F, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R417A, R422A, R422B, R422C, R422D, R427A, R434A, R437A, R438A, R441A, R443A, R448A, R449A, R452A, R452B, R454B, R455A, R456A, R501, R502, R503, R504, R507A, R508B, R509A, R513A, R514A, R600, R600a, R601a, R601A, R744

Specifications:

• Model: 99927-BT-EU
• Type: 2-way digital manifold
• Display: 4.3" colour touchscreen LCD
• Gauge: Class 1.0
• Pressure Display: psi, bar, MPa, kg/cm2, kPa
• Temperature Display: °F or °C
• Deep Vacuum Display: micron, mBar, kPa, Pa, Torr
• Sensing Resolution: 1 psi (.07 bar, .007 MPa, .07 kg/cm2)
• Sensing Accuracy: ±1 psi or 1% of reading
• Working Pressure: 0 to 725 psi (50 bar, 5 MPa, 52 kg/cm2)
• Proof Pressure: 1000 psi (70 bar, 7 MPa, 70 kg/cm2)
• Vacuum Sensor Range: 20,000 to 1 micron
• Refrigerant Temperature Range: -40 to 200°F (-40 to 93°C)
• Operating Temperature: 32 to 122°F (0 to 45°C)
• Temperature Accuracy: ±1°F (±0.5°C) between 32 to 160°F
• Connections: 1/4" m-flare
• Battery: Li-Ion rechargeable (USB Type C charging)
• Battery Life: 30-36 hours (25-30 hours with Bluetooth)
• Auto-Off: 30 minutes, sleep mode 4 minutes
• Data Logging: Up to 36 hours
• Bluetooth: 260' (80m) range, Bluetooth 4.2 and 5
• Hoses: 72" (180cm) high pressure with standard fittings
• Includes: 1 premium temperature clamp (K-type connector)
• Includes: 2 straight adapter fittings (90413)

Applications:

• Professional automotive A/C diagnostics
• HVAC system service
• Refrigerant charging and recovery
• Vacuum leak testing
• Superheat and subcool calculations
• Extended reach applications
• European market applications

Benefits:

Join the SPARTAN revolution and move into the future of A/C diagnostics. Class 1.0 gauge provides accurate, high-quality readings. 4.3" colour touchscreen allows navigation with a quick slide of your finger. Premium built-in vacuum sensor with 1 micron resolution eliminates need for additional equipment. Displays pressure, vacuum, temperature, and automatically calculates superheat and subcool. Over 60 pre-programmed refrigerants including R1234yf. Bluetooth wireless technology provides communication with Mastercool Connect app for full mobility - view activity on all compatible hand-held devices. Record and store up to 36 hours of data. Pressure leak test function displays delta for both vacuum and positive pressure. Easily switch between digital and analogue depictions. 30-36 hours battery life. Complete EU set includes 72" (180cm) high pressure hoses with standard fittings for extended reach, 1 premium temperature clamp with K-type connector, and 2 straight adapter fittings (90413) for maximum compatibility. Ready to use straight out of the box.

SPARTAN 2-way digital manifold EU set with 180cm hoses, temperature clamp and straight adapters. 4.3" touchscreen. Built-in vacuum sensor (1 micron). Bluetooth app compatible. 60+ refrigerants.
