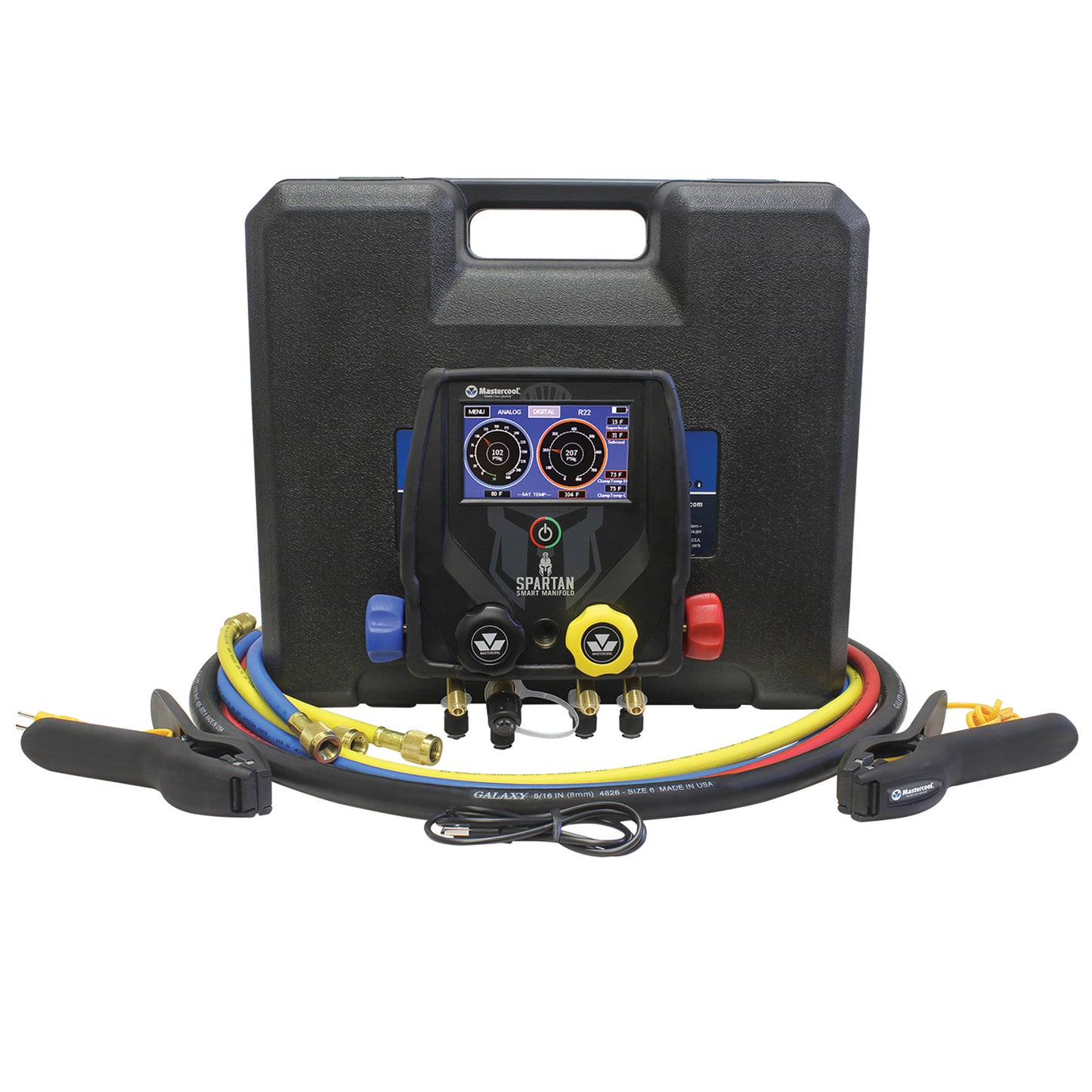

Mastercool 99947-BT-2 SPARTAN Digital 4-Way Manifold with 180cm Hoses and 2 Temperature Clamps

Join the SPARTAN revolution. Mastercool's SPARTAN series innovative manifold with Bluetooth® wireless technology is equipped with a 4.3" colour touchscreen LCD, allowing you to navigate through all screens and options with a quick slide of your finger. Premium built-in vacuum sensor with accuracy down to 1 micron - no need for additional equipment to properly diagnose and service A/C systems. 4-way design includes a dedicated vacuum port (3/8" m-flare) for enhanced vacuum performance. Displays pressure, vacuum, temperature, and automatically calculates superheat and subcool. Includes data logging and features, leak test timers, and alarms. Compatible with the Mastercool Connect app for complete mobility. Over 60 pre-programmed refrigerants, including R1234yf. Full set includes 72" (180cm) high-pressure hoses with standard fittings and two premium temperature clamps.

Key Features:

• SPARTAN 4-way digital manifold
• 4.3" colour touchscreen LCD
• Navigate with a quick slide of the finger
• Premium built-in vacuum sensor (1 micron resolution)
• Bluetooth® wireless technology
• Displays pressure, vacuum, and temperature
• Automatically calculates superheat and subcool
• Over 60 pre-programmed refrigerants (including R1234yf)
• Data logging up to 36 hours
• Leak test timers and alarms
• Mastercool Connect app is compatible
• 30-36 hours battery life
• Class 1.0 gauge accuracy
• Dedicated vacuum port (3/8" m-flare)
• Includes 72" (180cm) high-pressure hoses
• Standard fittings
• Contains two premium temperature clamps (K-type)

Included Refrigerants:

R12, R22, R23, R32, R113, R114, R115, R116, R123, R1234yf, R1234ez, R1270, R124, R134, R134a, R141b, R142b, R143, R143a, R152a, R170, R227ea, R290, R401A, R401B, R404A, R407A, R407B, R407C, R407D, R407F, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R417A, R422A, R422B, R422C, R422D, R427A, R434A, R437A, R438A, R441A, R443A, R448A, R449A, R452A, R452B, R454B, R455A, R456A, R501, R502, R503, R504, R507A, R508B, R509A, R513A, R514A, R600, R600a, R601a, R601A, R744

Specifications:

• Model: 99947-BT-2
• Type: 4-way digital manifold
• Display: 4.3" colour touchscreen LCD
• Gauge: Class 1.0
• Pressure Display: psi, bar, MPa, kg/cm2, kPa
• Temperature Display: °F or °C
• Deep Vacuum Display: micron, mBar, kPa, Pa, Torr
• Sensing Resolution: 1 psi (.07 bar, .007 MPa, .07 kg/cm2)
• Sensing Accuracy: ±1 psi or 1% of reading
• Working Pressure: 0 to 725 psi (50 bar, 5 MPa, 52 kg/cm2)
• Proof Pressure: 1000 psi (70 bar, 7 MPa, 70 kg/cm2)
• Vacuum Sensor Range: 20,000 to 1 micron
• Refrigerant Temperature Range: -40 to 200°F (-40 to 93°C)
• Operating Temperature: 32 to 122°F (0 to 45°C)
• Temperature Accuracy: ±1°F (±0.5°C) between 32 to 160°F
• Connections: 1/4" m-flare and 3/8" m-flare (vacuum port)
• Battery: Li-Ion rechargeable (USB Type C charging)
• Battery Life: 30-36 hours (25-30 hours with Bluetooth)
• Auto-Off: 30 minutes, sleep mode 4 minutes
• Data Logging: Up to 36 hours
• Bluetooth: 260' (80m) range, Bluetooth 4.2 and 5
• Hoses: 72" (180cm) high-pressure with standard fittings
• Includes: 2 premium temperature clamps (K-type connector)

Applications:

• Professional automotive A/C diagnostics
• HVAC system service
• Refrigerant charging and recovery
• Vacuum leak testing
• Superheat and subcool calculations
• Deep vacuum applications
• Extended reach applications

Benefits:

Join the SPARTAN revolution and move into the future of A/C diagnostics. Class 1.0 gauge provides accurate, high-quality readings. 4.3" colour touchscreen allows navigation with a quick slide of your finger. Premium built-in vacuum sensor with 1-micron resolution eliminates the need for additional equipment. 4-way design includes a dedicated vacuum port (3/8" m-flare) for enhanced vacuum performance and faster evacuation. Displays pressure, vacuum, temperature, and automatically calculates superheat and subcool—over 60 pre-programmed refrigerants, including R1234yf. Bluetooth wireless technology enables communication with the Mastercool Connect app, providing full mobility and allowing you to view activity on all compatible handheld devices. Record and store up to 36 hours of data. The pressure leak test function displays the delta for both vacuum and positive pressure. Easily switch between digital and analogue depictions. 30-36 hours of battery life. Complete set includes 72" (180cm) high-pressure hoses with standard fittings for extended reach and two premium temperature clamps with K-type connectors for accurate temperature measurements. Ready to use straight out of the box.

SPARTAN 4-way digital manifold with 180cm hoses and two temperature clamps. 4.3" touchscreen. Built-in vacuum sensor (1 micron). Dedicated vacuum port. Bluetooth app compatible. 60+ refrigerants.
