Mastercool COM-1234-KIT R1234YF Conversion Kit for CMDR4000-EX-U

Professional R1234yf conversion kit to convert the CMDR4000-EX-U (Arctic Commander) R/R/R machine to R1234yf. R1234yf is the new environmentally-friendly refrigerant standard (GWP less than 1) mandated for all new vehicles in Europe from 2017. Complete kit includes high and low side R1234yf couplers with extended disconnect protection sleeves, adapters, flush connections, tank adapter, label, instruction manual, and factory supplied software code. Essential for shops servicing modern R1234yf vehicles.

Key Features:

• R1234yf conversion kit for CMDR4000-EX-U
• Complete conversion package
• High and low side R1234yf couplers
• Extended disconnect protection sleeves
• R1234yf adapters included
• Flush connections for both sides
• Tank adapter included
• Factory supplied software code
• Instruction manual included
• Professional-grade quality

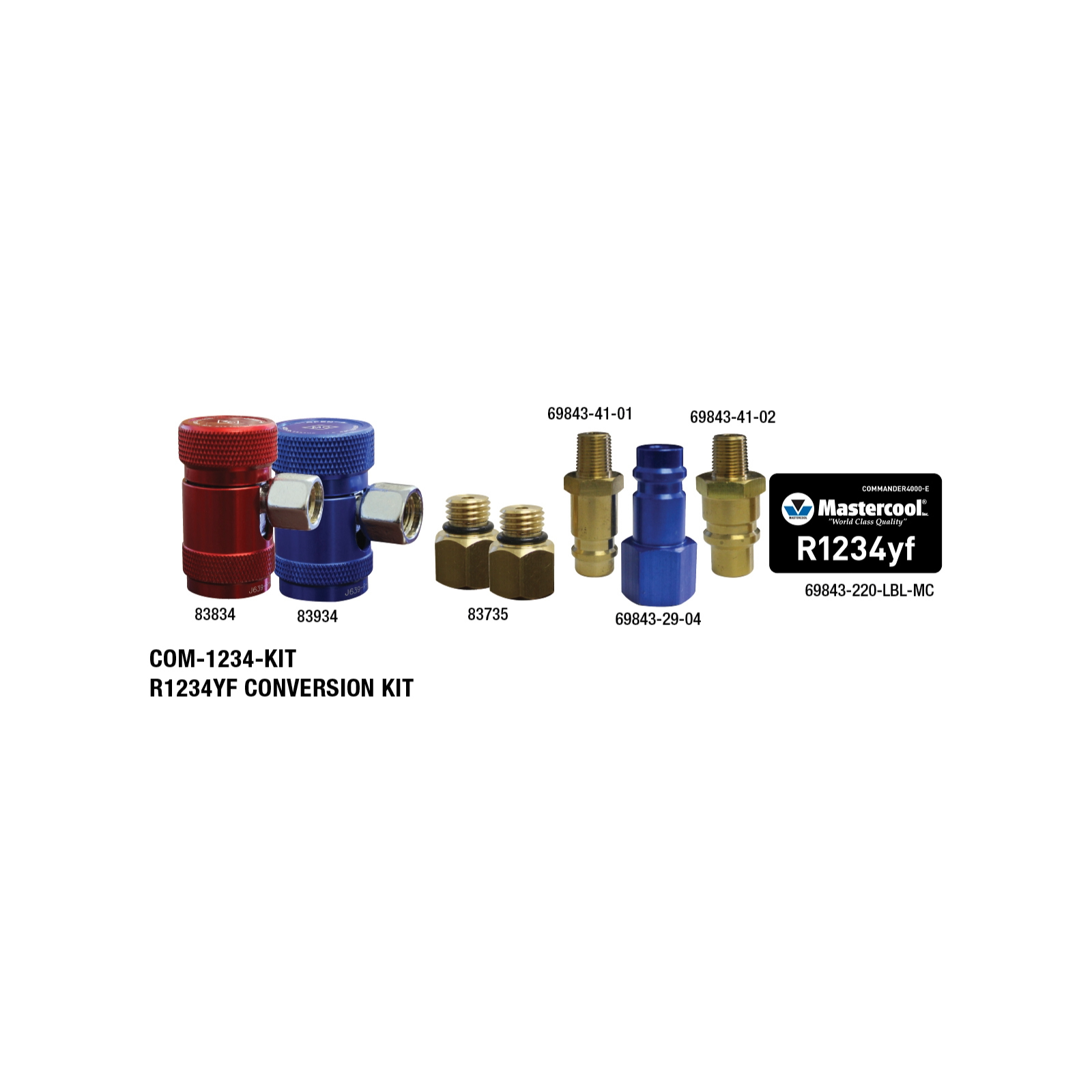

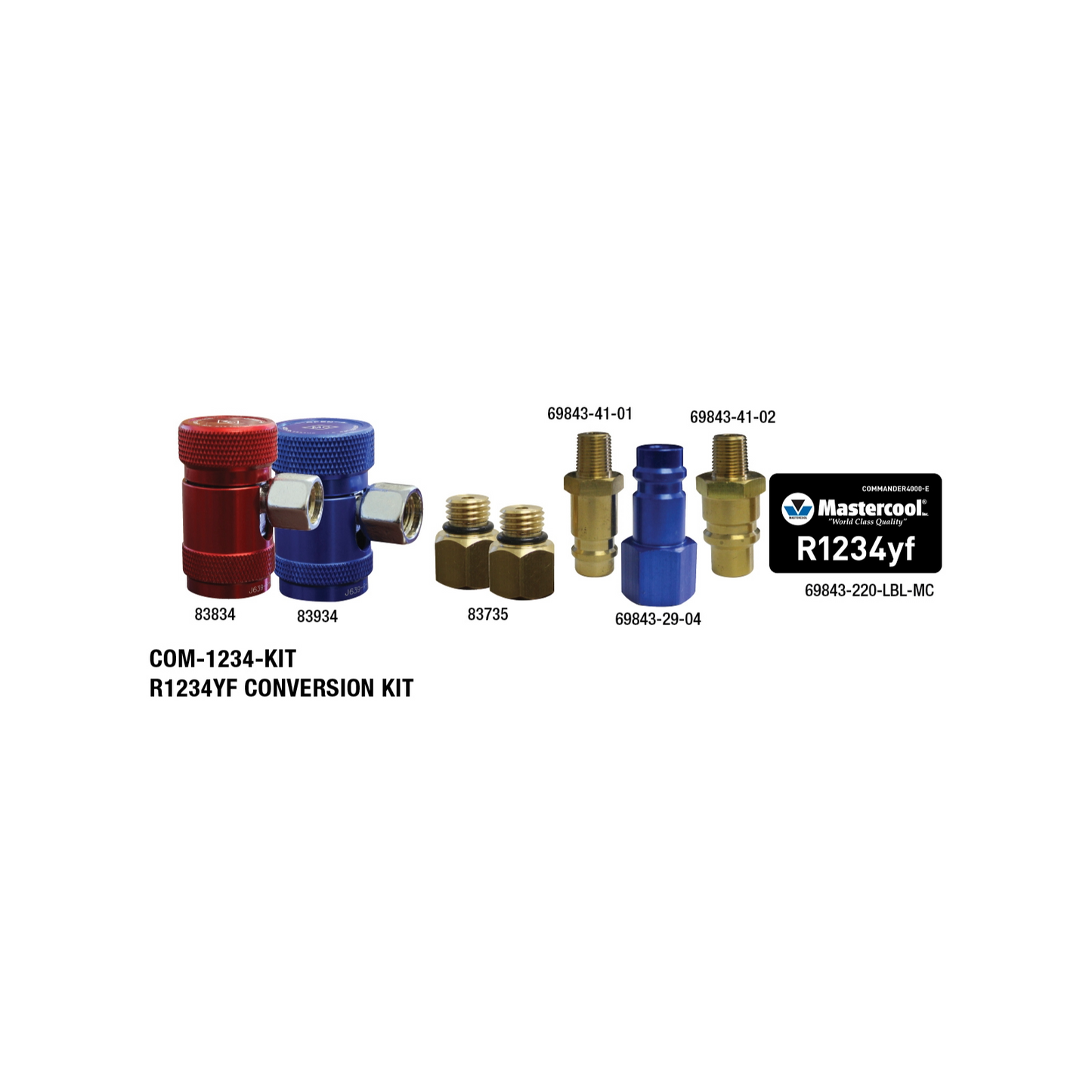

Kit Includes:

• 83834: High Side R1234yf Coupler (12 mm-F x 17 mm) with extended disconnect protection sleeve
• 83934: Low Side R1234yf Coupler (12 mm-F x 14 mm) with extended disconnect protection sleeve
• (2) 83735: 12mm-M x 14mm-F R1234yf Adapters
• 69843-220-LBL-MC: Mastercool R1234yf Label
• 69843-41-01: Low Side Flush Connection
• 69843-41-02: High Side Flush Connection
• 69843-29-04: Tank Adapter
• 69843-INST-R2: Instruction Manual
• Factory Supplied Software Code

About R1234yf:

• New environmental standard with GWP less than 1 (vs R-134a GWP of 1,430)
• Mandated for all new vehicles in Europe from January 1, 2017
• Classified as mildly flammable (A2L) refrigerant
• Uses 17 mm high side and 14 mm low side service ports
• Requires dedicated equipment and conversion

Specifications:

• Model: COM-1234-KIT
• Type: R1234yf conversion kit
• Compatible Machine: CMDR4000-EX-U (Arctic Commander)
• High Side Coupler: 12 mm-F x 17 mm
• Low Side Coupler: 12 mm-F x 14 mm
• Refrigerant: R1234yf
• Application: R/R/R machine conversion

Applications:

• Converting CMDR4000-EX-U to R1234yf service
• Modern vehicle A/C service (post-2017)
• R1234yf recovery, recycling, and recharging
• Professional automotive A/C service

Benefits:

Essential for converting your CMDR4000-EX-U (Arctic Commander) R/R/R machine to service modern R1234yf vehicles. Complete kit includes everything needed for conversion: high and low side R1234yf couplers with extended disconnect protection sleeves (12 mm-F x 17 mm high side, 12 mm-F x 14 mm low side), two R1234yf adapters (12mm-M x 14mm-F), flush connections for both sides, tank adapter, Mastercool R1234yf label, instruction manual, and factory supplied software code. Extended disconnect protection sleeves provide safe handling of mildly flammable R1234yf refrigerant. Professional-quality components ensure reliable operation. Allows shops to service both R-134a and R1234yf vehicles with the same machine.

R1234yf conversion kit for CMDR4000-EX-U. Complete kit with couplers, adapters, flush connections, software. For servicing post-2017 vehicles. Professional quality.
