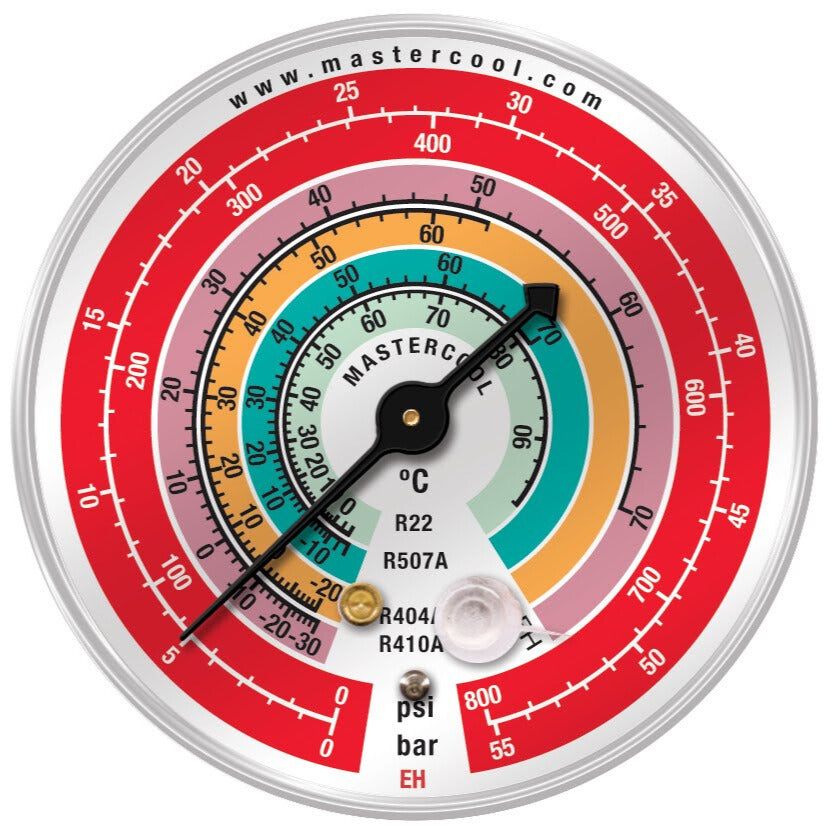

Mastercool EH — 63mm High-Pressure Replacement Gauge

Professional-quality 63mm high-pressure replacement gauge for R410A, R22, R404A, and R507 refrigerant systems. Features ANTI-FLUTTER design, 1.6 gauge class accuracy, and colour-coded scales in Bar, Psi, and °C for easy refrigerant recognition.

Key Features:

• 63mm Gauge Size – Large, easy-to-read dial
• 1.6 Gauge Class – Professional accuracy standard
• ANTI-FLUTTER Design – Dampened movement for stable readings in high-vibration environments
• Triple Scale – Bar, Psi, and °C temperature scales
• Colour Coded – Easy refrigerant identification (R410A, R22, R404A, R507)
• High Pressure – Designed for high-side pressure measurement
• Brass Construction – Durable and corrosion-resistant
• Standard 1/8" NPT Connection – Fits all Mastercool manifolds

Specifications:

• Model: EH
• Gauge size: 63mm
• Gauge class: 1.6
• Pressure type: High pressure (HP)
• Refrigerants: R410A, R22, R404A, R507
• Scales: Bar, Psi, °C
• Connection: 1/8" NPT
• Construction: Brass
• Features: ANTI-FLUTTER dampening

Matching Gauges:

• EL — Low-Pressure Gauge 63mm (R410A-22-404A-507) – Matching LP gauge for complete set

Compatible Manifold Sets:

This gauge is used in the following Mastercool manifold sets:

• 33636-E — Brass Manifold Set 63mm with 3 x 90cm Hoses
• 33661-E — Brass Manifold Set 63mm with 3 x 150cm Hoses
• 33772-E — Brass Manifold Set 63mm with 3 x 180cm Hoses
• 92103-EL — 1-Way Ball Valve Manifold 63mm LP
• 92103-EL-5/16 — 1-Way Ball Valve Manifold 5/16" 63mm LP

Applications:

• Replacement gauge for damaged or worn manifold gauges
• Upgrade from lower accuracy gauges
• Building custom manifold configurations
• R410A air conditioning systems
• R22 retrofit and service
• R404A/R507 commercial refrigeration

Why Replace Your Gauge?

• Accuracy – Gauges lose accuracy over time due to wear and pressure cycling
• Readability – Faded scales or damaged faces reduce readability
• Safety – Damaged gauges can give false readings leading to system damage
• Compliance – Maintain calibration standards for professional work

Installation:

Simply unscrew the old gauge from your manifold body and replace with this gauge. Standard 1/8" NPT thread fits all Mastercool brass and aluminium manifolds. No special tools required.

Professional Quality: Mastercool gauges are manufactured to the highest standards with ANTI-FLUTTER technology for reliable, accurate readings in demanding HVAC/R service environments.
