Mastercool COMMANDER4100 R1234yf Hybrid RRR Machine Arctic Commander

The Mastercool COMMANDER4100 is the next generation of automatic R1234yf and hybrid refrigerant recovery, recycling, and recharging (R/R/R) machines. Part of the enhanced Arctic Commander 2.0 line, this ETL-certified machine delivers industry-leading performance with 98.5% refrigerant recovery and ±1 gram accuracy.

✓ Design certified for compliance with SAE J2843

Why Choose the Arctic Commander 2.0?

Years of engineering expertise have culminated in this intuitive, efficient, and high-performance R/R/R machine. The expanded internal plumbing and reduced restrictions deliver remarkable improvements in recovery and charge times, making it the fastest in the industry whilst exceeding SAE purity standards.

ETL-Certified Precision You Can Trust

Official ETL testing confirms this as one of the most precise machines on the market, achieving desired charge and recovery quantities with an impressive ±1 gram deviation. Replace outdated equipment and experience the next level of R/R/R performance.

Key Features

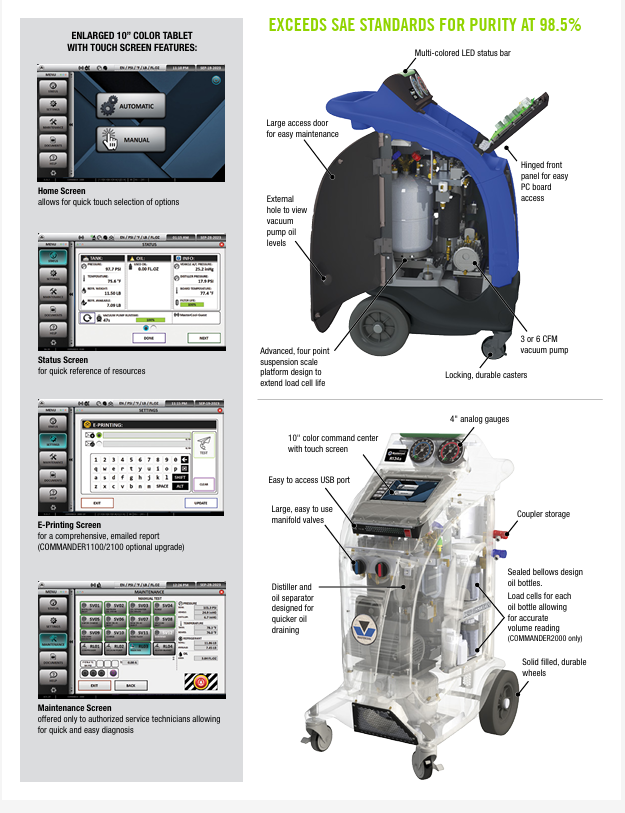

• 10" colour touchscreen command centre — Larger than most competitors, intuitive navigation through detailed function screens
• 98.5% refrigerant recovery — Market-leading efficiency, exceeds SAE purity standards
• ±1 gram accuracy — ETL-certified precision for charge and recovery
• Integrated refrigerant identifier — Prevents cross-contamination of expensive R1234yf gas (-E model)
• Complete 220V kit — Includes 3 bottles (2 sealed bellows for oils/dyes, 1 used oil bottle)
• Automatic and manual procedures — Full flexibility for any service scenario
• 6 CFM vacuum pump — Professional-grade evacuation performance
• Wi-Fi capable — Remote diagnostics and software updates
• E-printing capability — Generate service reports and documentation
• Multi-language support — 11 languages including English, Spanish, French, Italian, German
• Automatic vacuum leak test — Programmable leak detection
• Auto oil discharge and injection — Automated oil management (220V models)
• Hose and system flushing — Maintain clean refrigerant circuits
• Multi-coloured LED status bar — Visual operation feedback
• Automatic self-diagnostic check — Built-in system monitoring
• Large 4" analogue gauges — Class 1.0 precision pressure monitoring
• Durable construction — Solid wheels with locking castors, cabinet designed for increased airflow
• Made in USA — Professional quality with 2-year parts warranty, 1-year labour

Technical Specifications

• Refrigerant type: R1234yf
• Service procedure: Fully automatic or manual
• Voltage: 220V / 50-60Hz (UK/European model)
• Scale resolution: 0.02 lb (10g)
• Oil scale resolution: 0.01 lb (5g)
• Charge accuracy: ±0.5 oz (±15g) at 21-24°C
• Recovery speed: 98.5% recovery in <30 minutes at 21-24°C
• Vacuum pump: 6 CFM (142 L/min)
• Compressor: Hermetically sealed, 12cc, high pressure
• Recovery cylinder: 30 lb (12.5 litres), refillable with integrated heater
• Hose length: 96" (250cm)
• Couplers: R1234yf manual
• Pressure gauges: 4" analogue, Class 1.0
• Filter system: Single filter for cleaning and water removal
• Working temperature: 10-49°C (50-120°F)
• Shipping dimensions: 96.5 x 81.3 x 134.6cm (38" x 32" x 53")
• Shipping weight: 105.7kg (233 lbs)

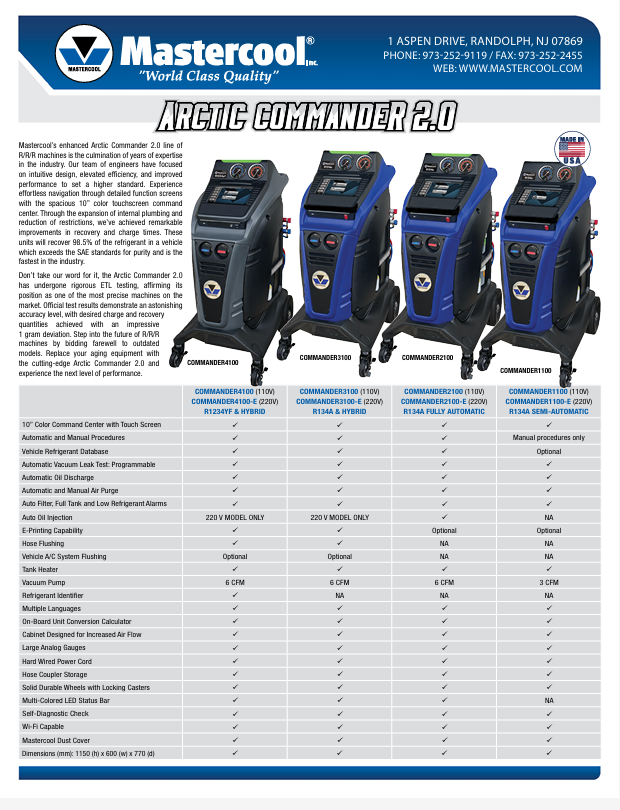

Model Variants Available

• COMMANDER4100-E (220V) — With integrated refrigerant identifier and automatic oil injection. Includes 3 bottles (2 sealed bellows for oils/dyes, 1 used oil bottle). Recommended for workshops servicing multiple vehicles to prevent costly cross-contamination.
• COMMANDER4100-E-X (220V) — Without refrigerant identifier, with automatic oil injection. Includes 3 bottles. Ideal for dedicated R1234yf-only workshops.

Complete Kit Includes

• Mastercool dust cover
• 96" (250cm) service hoses with R1234yf manual couplers
• Hose coupler storage
• 30 lb refillable recovery cylinder with integrated temperature sensor and heater
• On-board unit conversion calculator
• 3 bottles: 2 sealed bellows design for oils/dyes, 1 used oil bottle
• Hard-wired power cord

Replacement Parts & Accessories

• 69HVAC-YFAS — Replacement O2 sensor for refrigerant identifier
• 69HVAC-FILTER — Replacement refrigerant identifier filter
• 691234-FRH — Replacement sample hose for refrigerant identifier
• COMD1-FLTRPK — Filter pack for Commander machines (Europe, 350 lb)

Why the -E Model Saves You Money

The integrated refrigerant identifier (worth £1,000-£1,500 standalone) prevents cross-contamination of expensive R1234yf refrigerant. A single contaminated cylinder can cost hundreds of pounds to replace. The -E model pays for itself by protecting your refrigerant investment.

Competitive Advantages

Compared to Robinair AC1234-4 (£4,200-£5,000) and Texa Konfort Series (£3,800-£5,500), the COMMANDER4100 offers a larger 10" touchscreen, market-leading 98.5% recovery efficiency, and a more complete kit with 3 bottles included as standard.

View our complete range of recovery and recycling machines for professional automotive A/C service.

Need trade pricing? Contact us for volume discounts and workshop packages.

Professional R1234yf R/R/R machine with industry-leading 98.5% recovery, ±1 gram ETL-certified accuracy, 10" touchscreen, integrated identifier, and complete 3-bottle kit. Made in USA with 2-year parts warranty.
