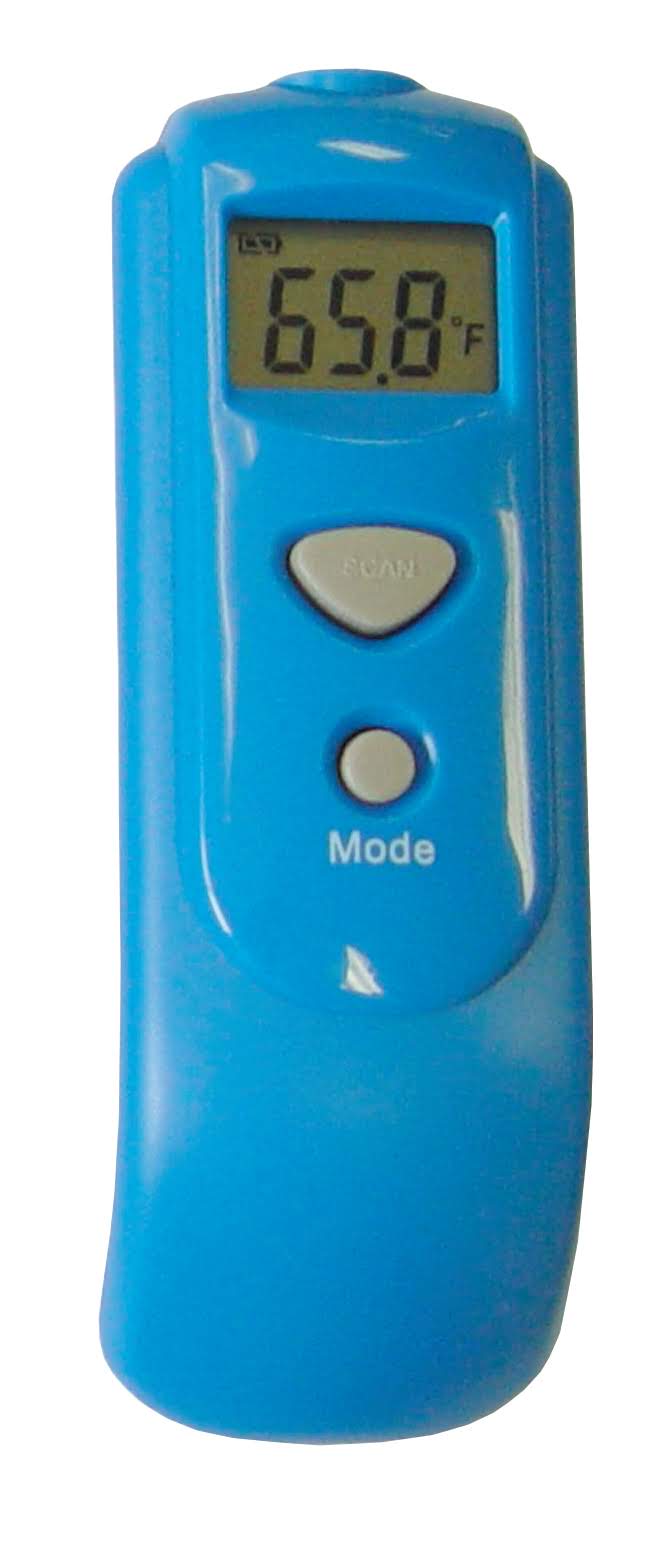

Mastercool 52227 — Pocket Infrared Thermometer

The 52227 Pocket Infrared Thermometer offers accurate non-contact temperature measurement in a compact and easy-to-use size. Perfect for quick temperature checks in the field without requiring physical contact with the surface being measured.

Key Features

• Non-Contact Measurement: Infrared technology measures temperature without touching surface
• Wide Temperature Range: -67°F to 428°F (-55°C to 220°C)
• 1:1 Field of View Ratio: Measurement area equals distance from target
• Adjustable Emissivity: Accurate readings on different surface types
• Backlit LCD Display: Easy reading in low-light conditions
• Minimum/Maximum Capture Mode: Records highest and lowest temperatures
• Pocket-Sized: Compact design for easy carrying
• Easy to Use: Simple point-and-shoot operation

Technical Specifications

• Model: 52227
• Type: Pocket infrared thermometer
• Temperature Range: -67°F to 428°F (-55°C to 220°C)
• Field of View Ratio: 1:1
• Emissivity: Adjustable
• Display: Backlit LCD
• Modes: Minimum/Maximum capture
• Design: Pocket-sized
• Weight: 0.15 kg
• SKU: 52227
• HS Code: 84189910

Applications

• HVAC/R temperature diagnostics
• Surface temperature measurement
• Duct temperature checking
• Equipment temperature monitoring
• Automotive diagnostics
• Electrical component temperature
• Food service temperature verification
• Quick spot temperature checks

How It Works

Infrared thermometers measure the infrared energy emitted by objects and convert it to a temperature reading. The 52227 uses a 1:1 field of view ratio, meaning the measurement area is the same size as the distance from the target. For example, at 6 inches away, the measurement area is 6 inches in diameter.

Benefits

• Non-Contact: Measure temperature without touching hot or dangerous surfaces
• Fast Readings: Instant temperature measurement
• Wide Range: -67°F to 428°F covers most HVAC/R applications
• Adjustable Emissivity: Accurate on different materials (metal, plastic, painted surfaces)
• Backlit Display: Easy reading in dark engine bays or equipment rooms
• Min/Max Mode: Track temperature variations over time
• Pocket-Sized: Always with you for unexpected temperature checks
• Easy Operation: Point, shoot, read - no training required

Perfect For

• HVAC/R service technicians
• Automotive mechanics
• Electrical technicians
• Maintenance engineers
• Food service professionals
• Field service technicians
• Workshop environments
• Mobile service operations

1:1 Field of View Ratio Explained

The 1:1 field of view ratio means:

• At 6" distance: Measures 6" diameter area
• At 12" distance: Measures 12" diameter area
• At 24" distance: Measures 24" diameter area

This makes the 52227 ideal for close-range measurements where you need to measure a specific component or area. For best accuracy, measure from close range to ensure you're only measuring the target surface.

Adjustable Emissivity

Different materials emit infrared energy differently. The adjustable emissivity feature allows accurate readings on:

• Shiny Metal: Low emissivity (0.1-0.3)
• Painted Surfaces: Medium emissivity (0.8-0.9)
• Matte/Oxidised Surfaces: High emissivity (0.9-0.95)
• Rubber/Plastic: High emissivity (0.9-0.95)

Adjust emissivity setting to match the surface being measured for most accurate results.

How to Use

1. Power on the thermometer
2. Adjust emissivity setting if needed for surface type
3. Point infrared sensor at target surface
4. Ensure proper distance for 1:1 field of view
5. Press trigger to measure temperature
6. Read temperature on backlit LCD display
7. Use min/max mode to track temperature variations if needed

Common Applications

HVAC/R:

• Supply air temperature
• Return air temperature
• Duct surface temperature
• Evaporator coil temperature
• Condenser temperature

Automotive:

• Engine component temperature
• Exhaust temperature
• Brake temperature
• Coolant hose temperature

Electrical:

• Circuit breaker temperature
• Motor temperature
• Transformer temperature
• Connection point temperature

Maintenance

• Lens Care: Keep infrared lens clean for accurate readings
• Battery: Replace battery when display becomes dim
• Storage: Store in protective case when not in use
• Calibration: Verify accuracy periodically with known temperature source
• Cleaning: Wipe with clean, dry cloth

Safety Guidelines

• Do not look directly at laser pointer (if equipped)
• Do not use on reflective surfaces without adjusting emissivity
• Verify readings with contact thermometer for critical applications
• Do not use to measure temperature through glass or transparent materials
• Keep lens clean for accurate measurements

Professional Quality: Mastercool infrared thermometers are built to professional standards for accurate, reliable non-contact temperature measurement in HVAC/R and automotive service environments. The 52227 Pocket Infrared Thermometer provides quick, accurate temperature readings from -67°F to 428°F with adjustable emissivity and backlit LCD display in a compact, pocket-sized design.
