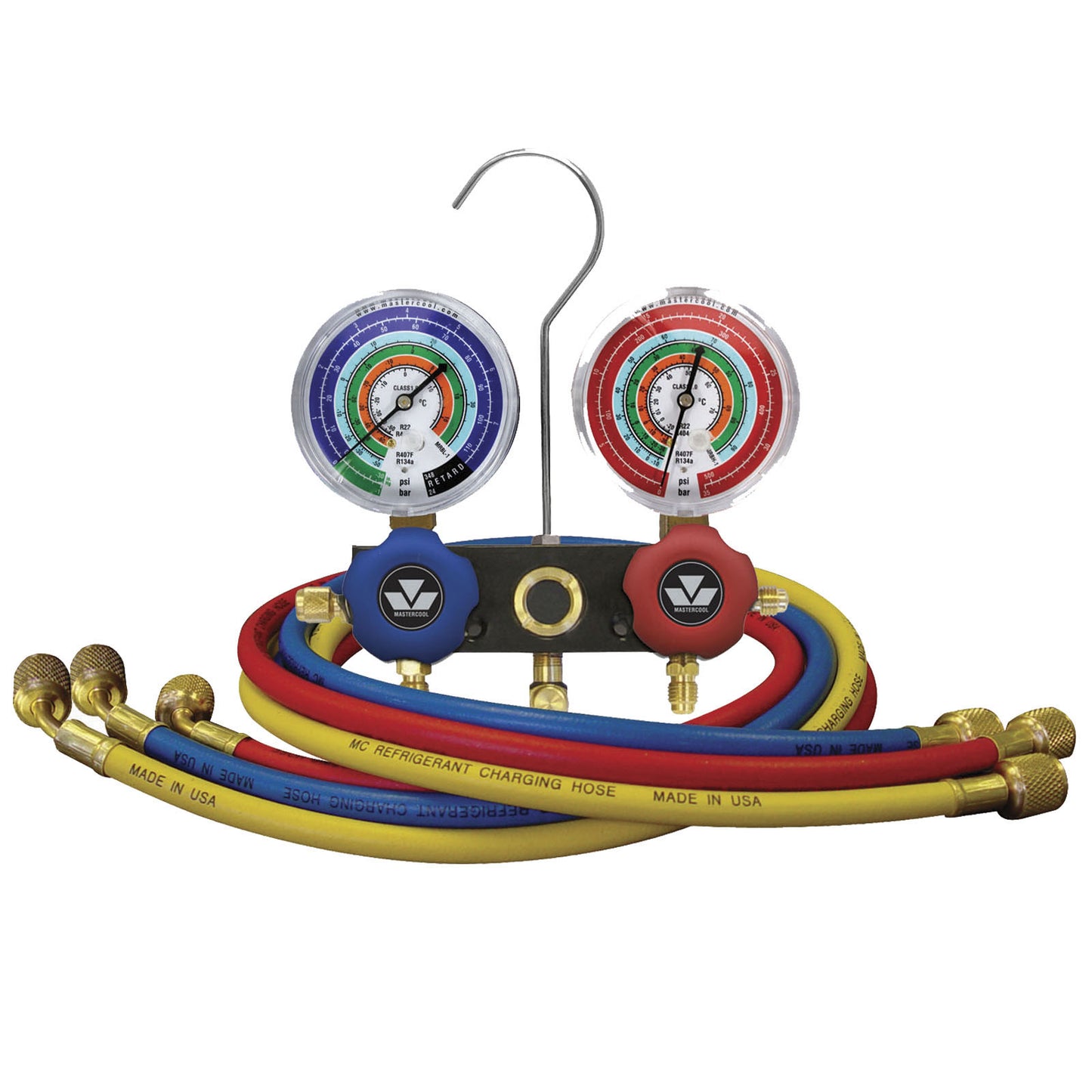

Mastercool 93636-E — 2-Way Aluminium Manifold Gauge Set 63mm for R410A/R507/R404A/R22 with 3x90cm Hoses

Professional 2-Way Aluminium Manifold with Free-Floating Piston Valves

Mastercool is the leading manufacturer of professional quality A/C manifold gauge sets. The 93636-E 2-way aluminium manifold gauge set features precision-machined construction, 63mm colour-coordinated gauges, and innovative free-floating piston valves that deliver superior performance and longevity. Built to last with the finest materials and machined to the highest quality standards, this is the manifold set professionals trust.

Free-Floating Piston Valves: Less Wear, Longer Life

The free-floating piston valve design is a Mastercool innovation that results in significantly less wear and tear compared to market-standard twisting piston valves. Traditional twisting valves create friction and wear with every operation — the free-floating design eliminates this problem, delivering smooth operation and extended service life.

Why This Matters: Manifold valves are operated hundreds of times during typical use. The free-floating piston design means less friction, smoother operation, and valves that maintain their sealing performance year after year. This is engineering that makes a real difference in daily use.

Double O-Ring Seal: Superior Leak Prevention

The double O-ring design provides a much better seal than single O-ring valves, resulting in fewer leaks and more reliable refrigerant containment. Each valve features two precision O-rings that create redundant sealing — if one seal degrades, the second maintains integrity. This design ensures leak-free operation even after years of professional use.

63mm Gauges: 1.6 Gauge Class Precision

The 63mm (2.5") gauges are 1.6 gauge class instruments — professional-grade accuracy for precise system diagnosis. The large dial size makes readings easy to see from any angle, whilst the colour-coordinated design allows instant refrigerant recognition. These aren't cheap import gauges — they're precision instruments built for professional HVAC work.

Colour-Coordinated for Easy Refrigerant Recognition

All Mastercool gauges are colour-coordinated for easy refrigerant recognition. The 93636-E features gauges calibrated and colour-coded for R410A, R507, R404A, and R22 refrigerants. No confusion, no mistakes — just grab the right manifold for the job.

Key Features

• Free-Floating Piston Valves — Less wear and tear vs twisting piston valves
• Double O-Ring Seal — Superior leak prevention and reliability
• 63mm Gauges — 1.6 gauge class precision, easy-to-read dials
• Aluminium Body — Lightweight, durable, precision-machined
• Colour-Coordinated — Easy refrigerant recognition
• 3 x 90cm Hoses — Standard length for most applications
• Multi-Refrigerant — R410A, R507, R404A, R22
• Professional Quality — Built to last with finest materials

Technical Specifications

• Model: 93636-E
• Configuration: 2-way manifold
• Gauge Size: 63mm (2.5")
• Gauge Class: 1.6 (professional precision)
• Gauge Part Number: EH-EL
• Refrigerants: R410A, R507A, R404A, R22
• Valve Type: Free-floating piston with double O-ring seal
• Body Material: Aluminium, precision-machined
• Hoses: 3 x 90cm standard hoses (red, blue, yellow)
• Connections: 1/4" SAE
• Packaging: Clamshell (European standard)
• Made in: USA

Complete 93636 Series Range

The 93636-E is part of Mastercool's comprehensive manifold range. Other models in the series include:

E-Series (R410A, R507A, R404A, R22):

• 93103-E: Manifold only (no hoses) — gauges, fittings, central tee 1/4" SAE
• 93636-E: Manifold set with 3 x 90cm standard hoses (this model)
• 93661-E: Manifold set with 3 x 150cm standard hoses
• 92661-E: Manifold set with 3 x 150cm ball valve hoses
• 93772-E: Manifold set with 3 x 180cm standard hoses
• 92661-E-JT: Manifold set with 3 x 150cm nylon barrier in-line ball valve hoses (red/blue 1/4" x 5/16", yellow 1/4" x 1/4")

MR-Series (R134a, R22, R12, R404A):

• 93103-MR, 93636-MR, 93661-MR, 92661-MR, 93772-MR

M-Series (R134a, R404A, R407C, R22, R507A):

• 93103-M, 93636-M, 93661-M, 92661-M, 93772-M

Optional Accessories and Upgrades

Gauge Protectors: Add "-G" suffix for shock-resistant gauge protectors

Teflon Gaskets: Add "-T" suffix for teflon gasket assembly

Ball Valve Hoses: Add "-E" suffix for ball valves at hose ends

Optional 1/4" x 5/16" Adapters (for E-series manifolds):

• -410 suffix: Includes 2 x 90410 flex adapters (convert 1/4" SAE to 5/16" SAE)
• -411 suffix: Includes 2 x 90411 flex adapters with ball valve (convert 1/4" SAE to 5/16" SAE)
• -413 suffix: Includes 2 x 90413 straight adapter fittings (convert 1/4" to 5/16" SAE)
• -433 suffix: Includes 2 x 90433 adapters with fittings (convert 1/4" to 5/16" SAE)

Carrying Case: Part number 58102-PBR (plastic carrying case, sold separately)

Replacement Parts

• 85215: O-Rings (4 pieces)
• 85216: Seal and Seat Assembly (2 pieces)

Perfect For

• HVAC technicians servicing R410A air conditioning systems
• Commercial refrigeration service (R404A, R507)
• Residential A/C installation and maintenance
• Heat pump service and diagnostics
• Mobile service operations requiring reliable manifolds
• Workshop installations with professional-grade equipment

Why Choose Mastercool Manifolds?

• Leading Manufacturer — Industry-trusted professional quality
• Finest Materials — Precision-machined aluminium construction
• Innovative Design — Free-floating piston valves reduce wear
• Superior Sealing — Double O-ring design prevents leaks
• Professional Gauges — 1.6 gauge class, 63mm dials
• Built to Last — Highest quality standards, made in USA
• Comprehensive Range — Multiple hose lengths and configurations

Free-Floating vs Twisting Piston Valves

Traditional Twisting Piston Valves:

• Piston rotates during operation
• Creates friction and wear on seals
• Seals degrade faster from twisting motion
• Requires more frequent maintenance

Mastercool Free-Floating Piston Valves:

• Piston moves linearly without rotation
• Minimal friction on seals
• Seals last significantly longer
• Smooth operation year after year
• Less maintenance, more reliability

The Professional's Choice for R410A Service

The Mastercool 93636-E 2-way aluminium manifold gauge set is the professional's choice for R410A, R507, R404A, and R22 service. With innovative free-floating piston valves, double O-ring seals, precision 63mm gauges, and aluminium construction machined to the highest standards, this manifold delivers the reliability and accuracy professionals demand. Built to last with the finest materials — this is a manifold you'll use for years.

Free-floating piston valves. Double O-ring seals. 63mm precision gauges. Professional quality, built to last.
