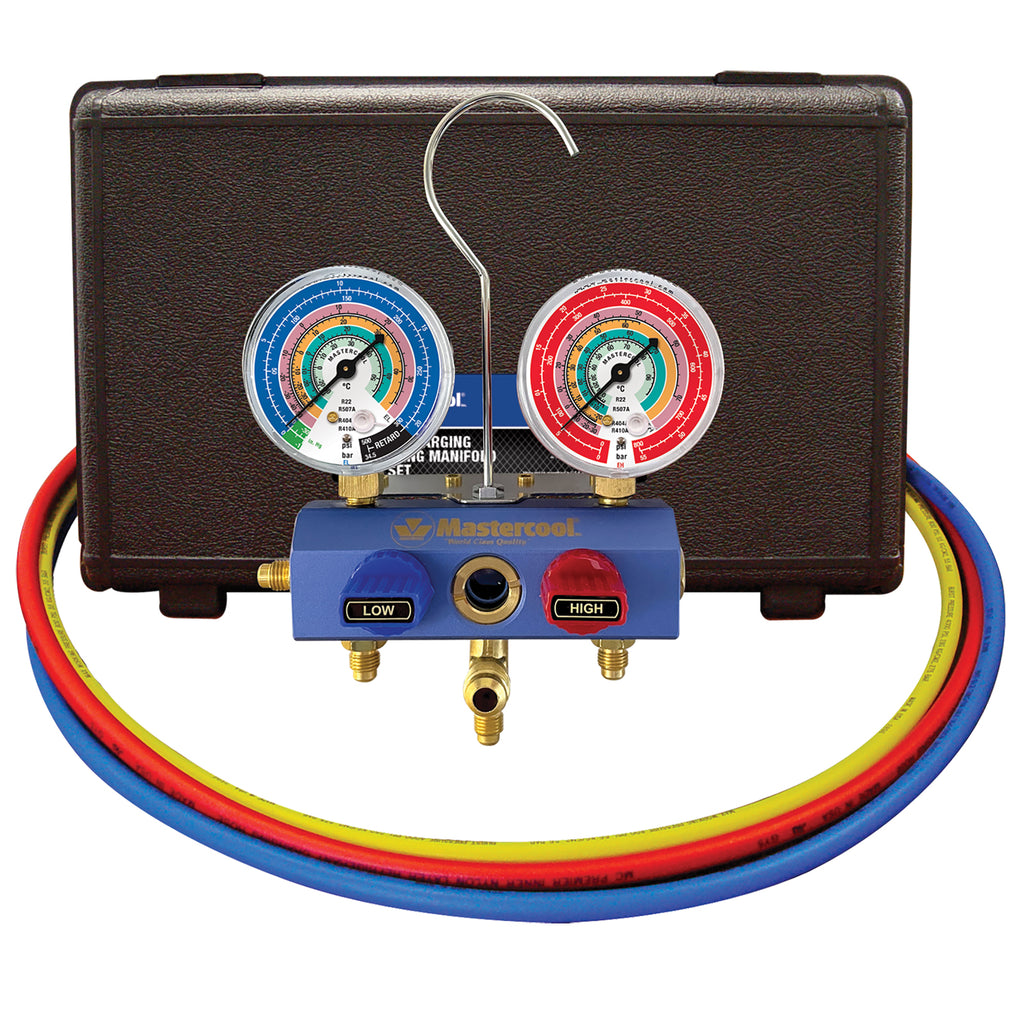

Mastercool 57261-E-413 — R410A 63mm 3/8" 150cm Hoses 5/16" Adapters

2-Way Ball Valve Manifold for R410A — 63mm Gauges with 150cm Hoses and 5/16" Adapters

Mastercool is the leading manufacturer of professional-quality A/C manifold gauge sets. The 57261-E-413 features precision-machined ball valves, 63mm colour-coordinated gauges for R410A, R507, R404A, and R22, and includes three 150cm nylon barrier hoses with manual ball valves PLUS two 90413 straight adapter fittings to convert 1/4" to 5/16" SAE. Full 3/8" bore through the block increases flow considerably for faster charging and recovery. Supplied in a plastic carrying case for workshop and mobile service operations.

Key Features

• 5/16" Adapters Included: 2 × 90413 straight adapter fittings (red/blue hoses)
• Ball Valve Design: Rotates 90° between two PTFE washers
• Quarter-Turn Operation: Opens and closes quickly with minimal effort
• Visual Valve Position: Vertical = Open, Horizontal = Closed
• Full 3/8" Bore: Increases flow for faster charging and recovery
• 63mm Gauges: 1.6 gauge class, colour-coordinated for easy reading
• R410A Compatible: Also works with R507, R404A, R22
• 3 × 150cm Hoses: Extended reach nylon barrier GY5 hoses with manual ball valves
• Plastic Carrying Case: Organised storage and transport (58102-PBR)
• Professional Quality: Built to last with finest materials
• Precision Machined: Highest quality standards

Technical Specifications

• Model: 57261-E-413
• Type: 2-way ball valve manifold with adapters
• Gauge Size: 63mm
• Gauge Class: 1.6
• Gauge Type: EH-EL (R410A, R507, R404A, R22)
• Bore Size: 3/8" full bore through block
• Valve Type: Ball valves with PTFE washers
• Hoses: 3 × 150cm nylon barrier GY5 with in-line ball valves
• Manifold Fittings: 2 × 1/4" SAE, central tee 1/4" SAE with branch 3/8"
• Compatible Refrigerants: R410A, R507, R404A, R22
• Included Adapters: 2 × 90413 straight adapter fittings (1/4" to 5/16" SAE)
• Adapter Configuration: Red/blue hoses 1/4" × 5/16", yellow 1/4" × 1/4"
• Carrying Case: 58102-PBR plastic case included
• Barcode: 700376131341
• SKU: 57261-E-413
• HS Code: 90262080

Applications

• R410A air conditioning service
• R507 refrigeration systems
• R404A commercial refrigeration
• R22 legacy system service
• HVAC/R installation and maintenance
• Larger installations requiring extended reach
• Applications requiring 5/16" SAE connections
• Workshop and mobile service operations

5/16" Adapters Included

The "-413" suffix indicates 90413 straight adapter fittings are included:

• 2 × 90413 Adapters: Straight adapter fittings included
• 1/4" to 5/16" SAE: Convert red/blue hoses to 5/16" SAE
• Ready to Use: No need to purchase adapters separately
• Professional Configuration: Red/blue 1/4" × 5/16", yellow 1/4" × 1/4"
• Versatile: Compatible with both 1/4" and 5/16" connections
• Value Added: Premium feature at no extra cost

Standard vs Adapter Versions

57261-E-413 (This Model - With Adapters):

• Includes 2 × 90413 straight adapter fittings
• Ready for 5/16" SAE connections
• No need to purchase adapters separately
• Professional configuration included

57261-E (Standard - Without Adapters):

• Standard 1/4" SAE connections
• Adapters can be added separately if needed

Available Hose Lengths - R410A/R507/R404A/R22 (EH-EL 63mm Gauges)

With 5/16" Adapters (-413 suffix):

• 57236-E-413 — 90cm hoses (if available)
• 57261-E-413 — 150cm hoses - This Product
• 57272-E-413 — 180cm hoses

Standard Without Adapters:

• 57236-E — 90cm hoses
• 57261-E — 150cm hoses
• 57272-E — 180cm hoses

80mm Gauge Version

For larger, easier-to-read gauges:

• 57236-EB — 2-Valve Manifold R410A 80mm with 90cm Hoses
• 57261-EB — 2-Valve Manifold R410A 80mm with 150cm Hoses

Optional Accessories

3-Valve Conversion:

• 90530 — Optional 90° swivel ball valve for 3/8" vacuum (converts 2-valve into 3-valve full control 4-way manifold)

Additional Adapter Options (if needed):

• 90410 — Flex adapters to convert 1/4" SAE hose into 5/16" SAE
• 90411 — Flex adapters with ball valve to convert 1/4" SAE hose into 5/16" SAE
• 90433 — Adapter with fittings to convert 1/4" to 5/16" SAE

Optional Modifications (add suffix to part number):

• -G: Shock-resistant gauge protectors
• -T: Assembled with PTFE gaskets
• -E: Assembled with ball valves at end of hoses

Replacement Parts

• 58102-R-KIT — O-ring repair kit for 2-3-way ball valve manifold
• 98225 — Ball valve repair kit

Why Choose Mastercool Manifolds?

• Professional Quality: Constructed of finest materials
• Precision Machined: Highest quality standards
• Built to Last: Every manifold built for long service life
• Ball Valve Design: Superior performance under pressure
• Full 3/8" Bore: Faster charging and recovery
• Colour-Coordinated Gauges: Easy refrigerant recognition
• Nylon Barrier Hoses: Low permeability, professional standard
• Extended Reach: 150cm hoses for larger installations
• Adapters Included: Ready for 5/16" connections
• Visual Valve Position: Know at a glance if valves are open or closed

Perfect For

• HVAC/R service technicians
• Air conditioning installers
• Refrigeration technicians
• R410A system service
• Larger installations
• Commercial applications
• Applications requiring 5/16" connections
• Workshop environments
• Mobile service operations
• Installations requiring extended reach

150cm vs Other Hose Lengths

150cm (This Model):

• Extended reach for larger installations
• More flexibility in component positioning
• Perfect for commercial applications
• Ideal when equipment is further apart
• Professional standard for larger jobs

90cm (57236-E or 57236-E-413):

• Compact length for workshop use
• Easy to manage and store
• Perfect for most service applications

180cm (57272-E or 57272-E-413):

• Maximum reach for difficult access
• Ideal for very large commercial installations

Ball Valve Advantages

The ball valve design provides superior performance:

• Quarter-Turn Operation: Opens and closes quickly
• Low Effort: Rotates easily even under pressure
• PTFE Washers: Smooth operation and reliable sealing
• Visual Position Indicator: Knob position shows valve status
• Durable: Long service life in demanding environments

Full 3/8" Bore

The full 3/8" bore through the manifold block provides significant advantages:

• Increased Flow: Considerably faster than smaller bore manifolds
• Faster Charging: Reduced service time
• Faster Recovery: Improved efficiency
• Professional Performance: Industry-leading flow rates

63mm Colour-Coordinated Gauges

• 1.6 Gauge Class: Professional accuracy
• Colour-Coordinated: Easy refrigerant recognition
• EH-EL Type: Calibrated for R410A, R507, R404A, R22
• 63mm Size: Standard professional size
• Professional Quality: Reliable, accurate readings

Nylon Barrier Hoses

The included 150cm nylon barrier GY5 hoses provide professional performance:

• Nylon Barrier: Low permeability minimises refrigerant loss
• In-Line Ball Valves: Manual control at hose ends
• 150cm Length: Extended reach for larger installations
• Professional Standard: Industry best practice

Plastic Carrying Case

The included 58102-PBR plastic carrying case provides:

• Organised Storage: Dedicated compartments for manifold, hoses, and adapters
• Protection: Safeguards equipment during transport
• Professional Presentation: Clean, organised appearance
• Portable: Easy to carry to job sites

Maintenance

• Regular Inspection: Check gauges, valves, hoses, and adapters for wear
• Gauge Calibration: Verify accuracy periodically
• Valve Operation: Ensure ball valves operate smoothly
• Hose Condition: Inspect for damage or leaks
• Adapter Condition: Check 90413 adapters for wear
• O-Ring Replacement: Use 58102-R-KIT when needed
• Ball Valve Service: Use 98225 repair kit when required
• Storage: Store in carrying case when not in use

Professional Quality: Mastercool manifold gauge sets are built to professional standards with precision machining and finest materials for reliable, long-lasting performance. The 57261-E-413 2-way ball valve manifold features 63mm colour-coordinated gauges for R410A/R507/R404A/R22, full 3/8" bore for faster charging and recovery, and includes three 150cm nylon barrier hoses with manual ball valves PLUS two 90413 straight adapter fittings (1/4" to 5/16" SAE) in a plastic carrying case for professional HVAC/R service operations requiring extended reach and 5/16" connections.
