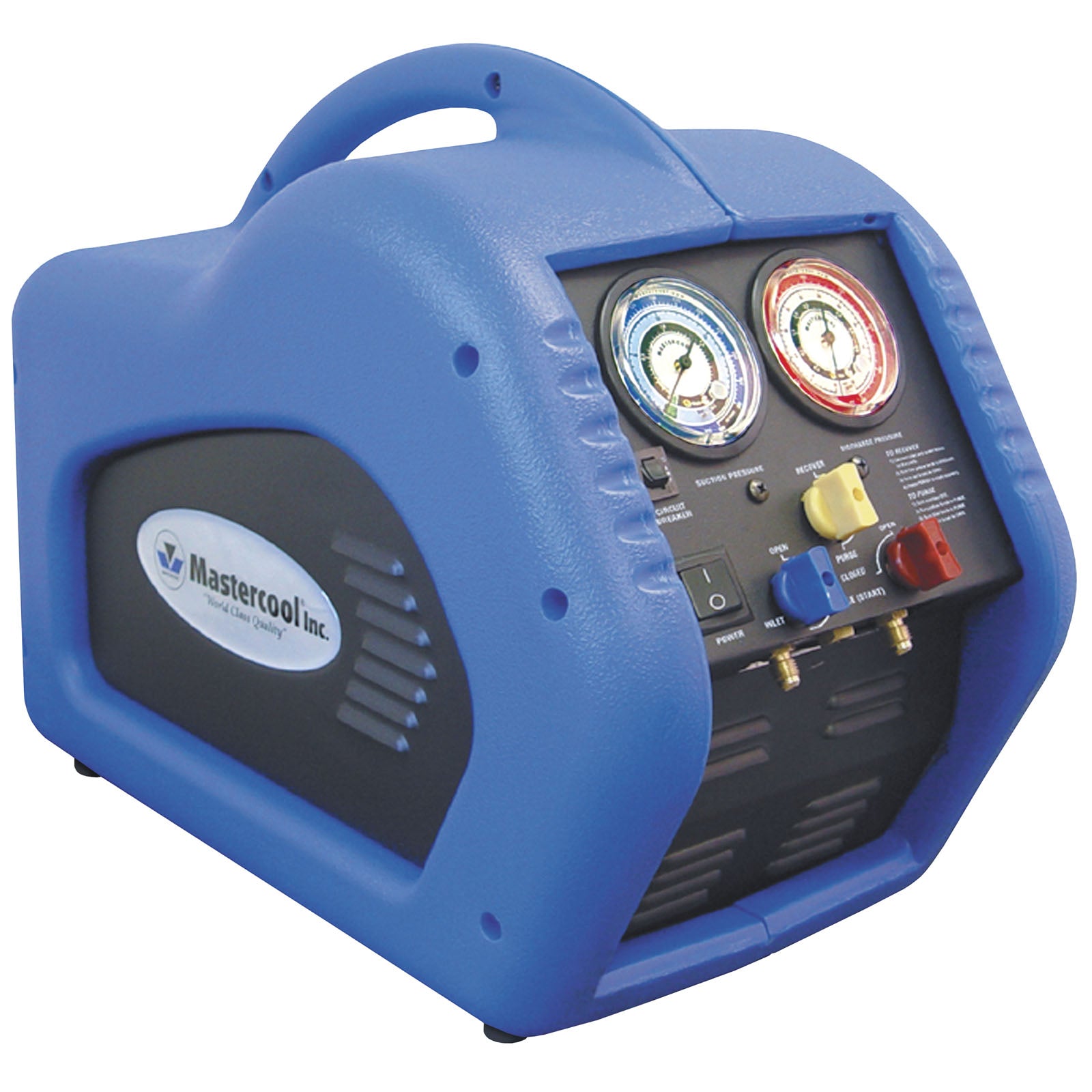

Mastercool 69000-220 Refrigerant Recovery System - 220V/50-60Hz - CE Certified

Efficient, reliable, and powerful refrigerant recovery for every job. Mastercool's 69000-220 Refrigerant Recovery System is compact, lightweight, and built for professionals handling the recovery of refrigerants. This powerful recovery unit works with all major refrigerants, including CFCs, HCFCs, and HFCs, such as R134a and R410A, and offers quick recovery rates suitable for demanding tasks.

Key Features:

• Automatic Low-Pressure Cut-Off Switch – Halts recovery once complete, protecting the compressor from damage and eliminating the need for constant monitoring
• State of the Art ½ HP Oil-Less Compressor – Delivers high recovery rates and oil-free operation
• High Volume Cooling Fan – Prevents overheating and ensures consistent performance in high-temperature environments
• Works with All Refrigerants – Including CFCs, HCFCs, HFCs (R134a, R22, and R410A) making it ideal for both residential and commercial HVAC systems
• Quick Recovery Rates – Suitable for demanding tasks
• CE Certified – European safety standards compliance

Specifications:

• Model: 69000-220
• Voltage: 220V / 50-60Hz
• Compressor Power: ½ HP oil-less motor
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Material: High-Density Polyethylene (HDPE) hard plastic case
• Refrigerants Supported: CFCs, HCFCs, HFCs (R134a, R410A, and others)
• Recovery Rate - Direct vapour: up to 0.44 lb/min (0.2 kg/min)
• Recovery Rate - Direct liquid: up to 2.62 lb/min (1.19 kg/min)
• Recovery Rate - Push/pull: up to 12 lb/min (5.44 kg/min)
• Certification: CE

How It Works:

The internal components of Mastercool's Refrigerant Recovery System have been carefully arranged and isolated to ensure smooth and quiet performance. The unit is equipped with a ½ HP oil-less compressor and high-volume cooling fan ensuring optimal cooling efficiency, which keeps the compressor working at higher capacities in even the warmest conditions. The compressor is protected by an automatic low-pressure cut-off switch that shuts off the unit once recovery is complete, eliminating the risk of compressor failure and reducing the need to monitor the entire recovery process. The stainless-steel ball valve manifold provides smooth and quick refrigerant flow control with pressure readings in PSI, BAR, and MPA.

Applications:

• Residential HVAC service
• Commercial refrigeration
• Automotive A/C service
• Heat pump maintenance
• System decommissioning

Benefits:

Protected by a reinforced hard plastic case, Mastercool's refrigerant recovery system is designed for efficiency and ease of use, making it an ideal solution for fast, reliable refrigerant recovery. The compact and lightweight design makes it perfect for mobile service work whilst the oil-less compressor eliminates maintenance requirements.

Also Available:

• 69000-220-TUV: Recovery System (220V – 50Hz Certified to TÜV/GS and E35-421)
• 69000-J: Recovery System (100V – 50Hz Japanese Standard)
