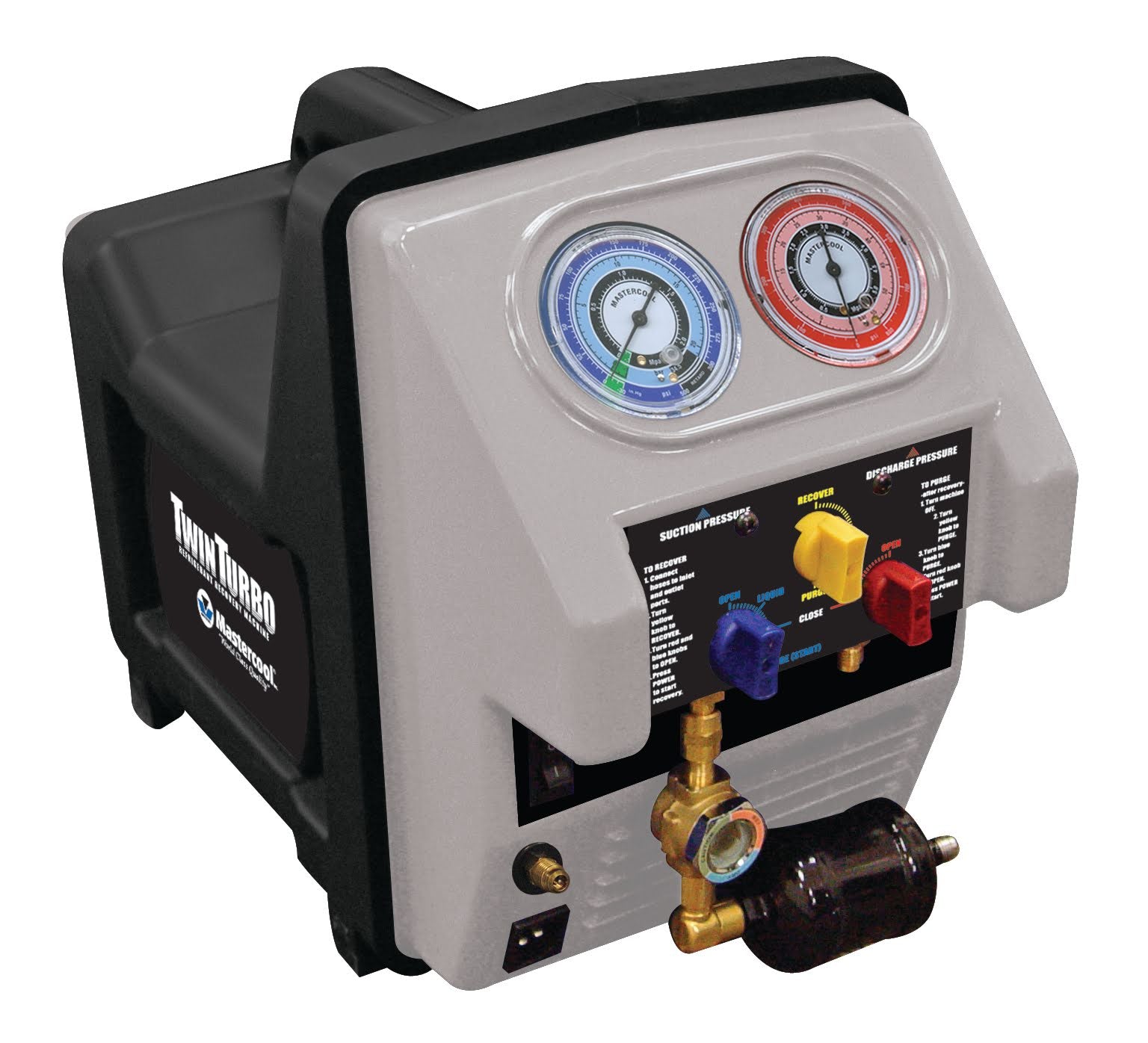

Mastercool 69350-220-EU TWIN TURBO Recovery-Recycling System - NF E35-421

APPROVED FOR ALL AIR CONDITIONING REFRIGERANTS INCLUDING A2L MILDLY FLAMMABLE REFRIGERANTS

This unit offers all the same functions and features as the 69300 TWIN TURBO. In addition, it has an oil separation module, filter dryer, and sight glass for complete recovery and recycling capabilities. This EU version includes a manual restart button per EU standards and is certified to NF E35-421 French refrigerant recovery standards.

Key Features:

• Manual Restart Button – Per EU standards for enhanced safety
• NF E35-421 Certified – French refrigerant recovery standards compliance
• Oil Separation Module – Removes oil from recovered refrigerant
• Filter Dryer – Cleans and purifies recovered refrigerant
• Sight Glass – Visual confirmation of refrigerant flow and quality
• Revolutionary Dual Piston Oil-Less Compressor – Maximum recovery efficiency
• Safety High Pressure Cut-Off Switch – Automatic protection
• Largest Volume Recovery Rate – In the market
• Works with All Refrigerants – Including R410A and A2L refrigerants
• Durable HDPE Case – With front bumper guards

Specifications:

• Model: 69350-220-EU
• Voltage: 220V / 50-60Hz
• Compressor Power: ½ HP oil-less compressor
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Weight: 28.3 lbs (12.8 kg)
• Dimensions: 18" (l) x 10" (w) x 14" (h)
• Case Material: HDPE (High Density Polyethylene)
• Compatible Refrigerants: All CFC, HCFC, and HFC's
• Certifications: NF E35-421

Recovery Rates:

R134a: Direct vapour up to 0.537 lb/min, Direct liquid up to 4.72 lb/min, Push pull up to 11.68 lb/min

R22: Direct vapour up to 0.63 lb/min, Direct liquid up to 7.56 lb/min, Push pull up to 18.3 lb/min

R410A: Direct vapour up to 0.70 lb/min, Direct liquid up to 7.7 lb/min, Push pull up to 20.2 lb/min

Replacement Parts:

• 69500-DR: Replacement Filter Dryer
