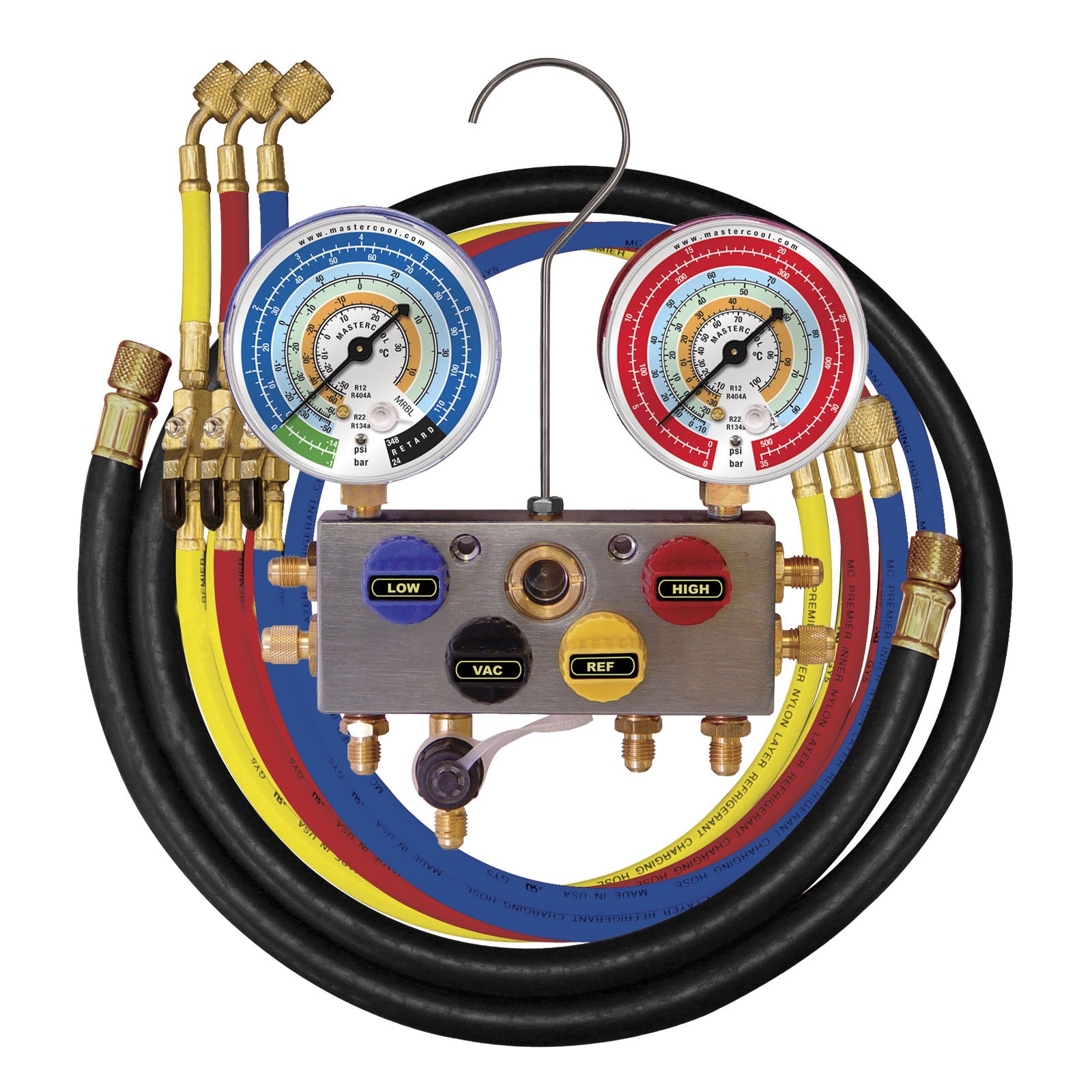

Mastercool 96261-MRB1-E - 4-Way Class 1.0 Ball Valve Manifold Gauge Set for R22, R404A, R407F, R134a with 150cm Hoses

Please note: Image may not reflect the actual item. Product specifications are as described below.

Mastercool is the leading manufacturer of professional-quality A/C manifold gauge sets. Our manifold gauge sets are constructed of the finest materials and machined with precision to the highest quality standards. At Mastercool, every manifold we build is built to last. All Mastercool gauges are colour coordinated for easy refrigerant recognition. Complete kit includes manifold with 80mm Class 1.0 gauges for R22, R404A, R407F, and R134a, 4 x 150cm hoses, packaged in a custom moulded carrying case.

Key Features:

• Full 3/8" bore through the block increases flow considerably
• Faster charging and recovery
• Ball valve rotates 90° between two Teflon washers
• Opens and closes quickly with only a quarter turn
• Knob position shows valve status (Vertical = Open, Horizontal = Closed)
• 80mm gauges / Class 1.0 for superior accuracy
• Specifically calibrated for R22, R404A, R407F, R134a
• Colour coordinated for easy refrigerant recognition
• All fittings are 1/4" SAE, tee with branch 3/8"
• 4 x 150cm hoses included
• Ball valves at the end of hoses (-E suffix)
• Custom moulded carrying case included
• Professional-grade quality

Specifications:

• Model: 96261-MRB1-E
• Type: 4-way ball valve manifold gauge set
• Refrigerants: R22, R404A, R407F, R134a
• Gauges: 80mm Class 1.0 (superior accuracy)
• Bore: Full 3/8"
• Valve Type: Ball valve (90° rotation)
• Hoses: 4 x 150cm hoses
• Fittings: All 1/4" SAE, tee with branch 3/8"
• Case: Custom moulded carrying case

Applications:

• R22, R404A, R407F, R134a system service
• Refrigerant charging and recovery
• HVAC system diagnostics
• Pressure monitoring
• Professional HVAC/R work

Benefits:

Full 3/8" bore through the block increases flow considerably, enabling faster charging and recovery operations. Ball valve rotates 90° between two Teflon washers requiring little effort to turn, even under pressure. Opens and closes quickly with only a quarter turn for efficient operation. Knob position shows whether valves are open or closed at a glance (Vertical = Open, Horizontal = Closed). 80mm gauges with Class 1.0 accuracy provide superior precision for R22, R404A, R407F, and R134a systems. Colour coordinated gauges ensure easy refrigerant recognition. Ball valves at the end of hoses (-E suffix) provide additional control and prevent refrigerant loss. 4 x 150cm hoses provide complete system connectivity. Custom moulded carrying case keeps equipment organised and protected. Essential tool for professional HVAC/R technicians servicing R22, R404A, R407F, and R134a systems. Built to last with Mastercool's commitment to quality.

Optional Accessories:

• To order manifolds with shock resistant gauge protectors, add "-G" after the part number

Replacement Parts:

95102-R-KIT: O-Ring repair kit for 4-Way Ball Valve Manifold

4-way Class 1.0 ball valve manifold for R22, R404A, R407F, R134a. 80mm gauges. 3/8" bore. 4 x 150cm hoses. Custom case. Professional quality.
