Mastercool 82172 - Black Series Mini-Fold R1234yf Compact 2-Way Digital Manifold with Hoses and Couplers

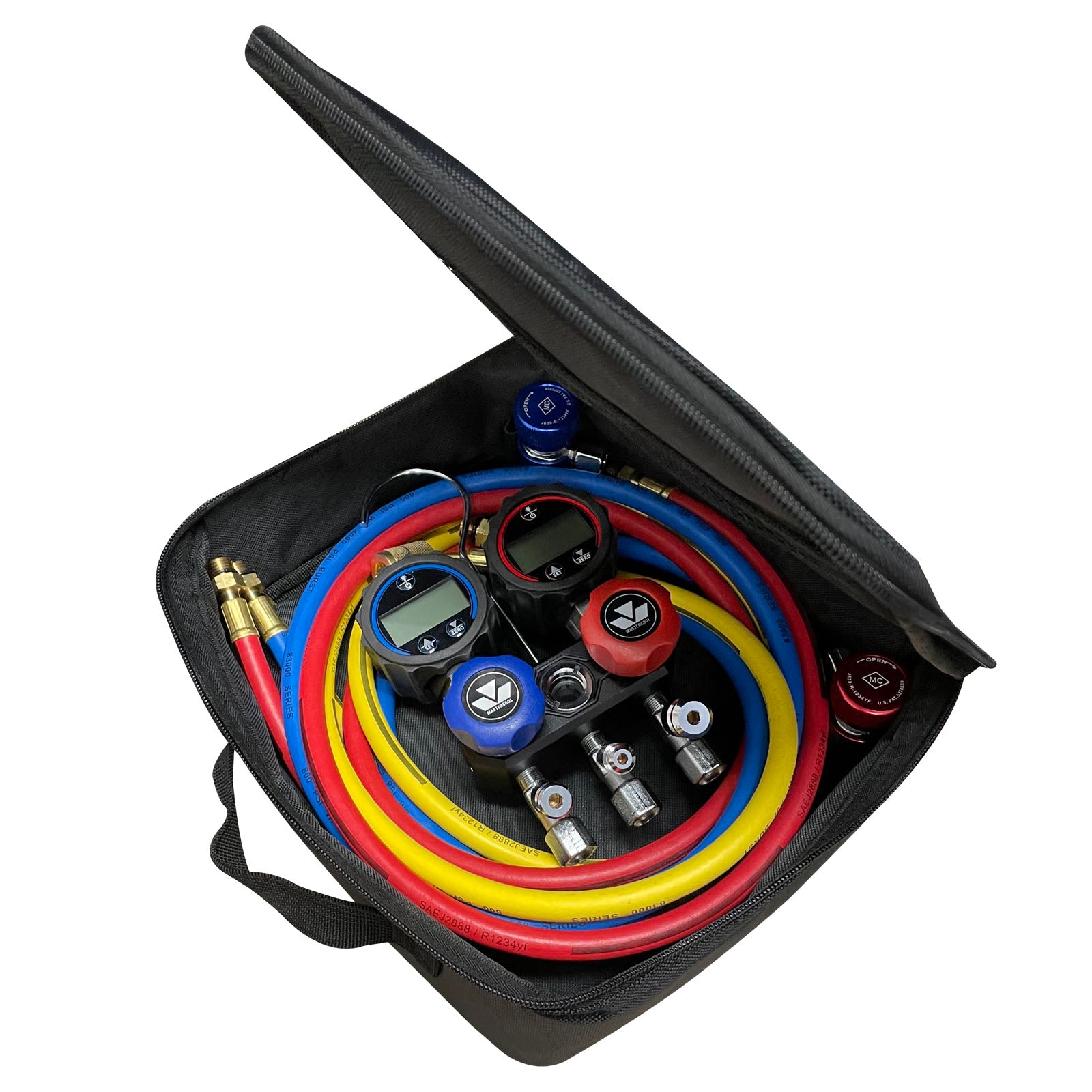

Mastercool's Black Series Compact 2-Way Digital Manifold Gauge Set effortlessly performs pressure and temperature calculations and displays them on a large blue backlit LCD display. Constructed of the finest materials and machined with precision to the highest quality standards, this compact manifold provides automatic shut-off, units conversion, over range alarm, max and min values, and refrigerants selection, providing a powerful tool for the hard-working technician. Complete kit includes manifold with gauges, 3 x 72" (182cm) hoses, and R1234yf manual couplers (83834, 83934), packaged in a zippered carry case.

Key Features:

• Compact black anodised aluminium block with matte chrome fittings
• Front-mounted hose holders for precise calculations in the palm of your hand
• Easily perform pressure/temperature calculations for up to 91 different refrigerants
• Large 4-digit blue backlit LCD display
• Unit conversion between MPa, kPa, bar, psi, kg/cm², inHg
• Displays alarm indication when over range
• Celsius or Fahrenheit designation
• Low battery warning on LCD screen
• Large sight glass for quick visual refrigerant checks
• Easy to grip knobs
• Includes 3 x 72" (182cm) hoses and R1234yf manual couplers
• Zippered carry case included

Included Refrigerants (91):

R12, R1234yf, R1234ze, R124, R125, R134a, R141B, R142B, R413A, R152A, R21, R218, R22, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R408A, R409A, R409B, R410A, R410B, R412A, R413A, R414A, R414B, R415B, R416A, R417A, R419A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R423A, R427A, R437A, R438A, R441A, R442A, R443A, R444A, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R454C, R455A, R470B, R471A, R472A, R50, R500, R502, R503, R504, R507A, R508A, R508B, R509A, R513A, R515B, R600, R600a, R601, R601a, R740, R744

Specifications:

• Model: 82172
• Type: Compact 2-way digital manifold gauge set
• Pressure Range (Low): -14.5 to 500 psi (-0.1 to 3.4 MPa)
• Pressure Range (High): -14.5 to 800 psi (-0.1 to 5.5 MPa)
• Resolution: 0.5 psi
• Accuracy: ±0.5% FS
• Measurement Units: MPa, kPa, bar, psi, kg/cm², inHg
• Temperature Unit: °C/°F
• Over Range Alarm: Display -OL-
• Operating Temperature: -10°C to 60°C
• Battery: CR2450
• Battery Life: Approximately 6 months
• Sampling Rate: 1 second
• Low Battery Indication: Icon on LCD
• Display: 30mm x 17mm LCD
• Blue Backlight: Auto-off after 6 seconds
• Left Fitting: 12mm-F for R1234yf hose with R1234yf low side coupling holder
• Centre Fitting: 1/2" ACME left hand fitting with 1/2" ACME holder
• Right Fitting: 12mm-F for R1234yf hose with R1234yf high side coupling holder
• Hoses: 3 x 72" (182cm)
• Couplers: R1234yf manual couplers (83834, 83934)
• Case: Zippered carry case

Applications:

• R1234yf automotive A/C service
• Multi-refrigerant system diagnostics
• Refrigerant charging and recovery
• Pressure and temperature monitoring
• Professional HVAC/R work

Benefits:

Compact black anodised aluminium block with matte chrome fittings offers an extremely portable solution to fit the needs of every busy technician. Front-mounted hose holders allow for precise calculations in the palm of your hand. Large 4-digit blue backlit LCD display provides vibrant readings in even the darkest of environments. Easily perform pressure/temperature calculations for up to 91 different refrigerants including R134a, R410a, and R22. Unit conversion between MPa, kPa, bar, psi, kg/cm², and inHg ensures compatibility with any measurement system. Displays alarm indication when over range, Celsius or Fahrenheit designation, and low battery warning directly on the LCD screen. Large sight glass allows for quick visual refrigerant checks. Easy to grip knobs ensure comfortable operation. Complete kit includes 3 x 72" (182cm) hoses and R1234yf manual couplers (83834, 83934) for immediate use. Zippered carry case keeps equipment organised and protected. Essential tool for professional automotive and HVAC/R technicians working with R1234yf and other modern refrigerants.

Also Available:

82103: Compact Manifold with gauges only packaged in a cardboard box

Black Series R1234yf compact 2-way digital manifold. 91 refrigerants. Blue backlit LCD. 72" hoses and R1234yf couplers included. Zippered case. Professional quality.
