Mastercool 94661 - Black Series Mini-Fold Compact 2-Way Digital HVAC Manifold with Hoses

Big Digital Power. Palm-Sized Portability.

Ditch the heavy manifold for small jobs. The Mastercool Black Series Mini-Fold is the ultimate "grab-and-go" solution for the modern HVAC engineer. Whether you are working on a domestic fridge (R600a), a heat pump (R290/R32), or a commercial VRF (R410A/R454B), this compact unit puts precise digital calculations in the palm of your hand. Machined from a solid block of black anodised aluminium, it is tough enough for the van but light enough to carry up a ladder without thinking twice. This 94661 kit includes 3 x 60" (150cm) high pressure hoses and zippered carry case.

Why Upgrade to the Mini-Fold?

• A2L & Hydrocarbon Ready: Pre-programmed with 91 refrigerants, including the critical UK gases: R32, R454B, R290 (Propane), and R600a (Isobutane)
• Digital Accuracy: Stop squinting at analogue needles. Get instant, precise pressure and temperature readings with automatic saturation temperature calculations
• Built for Dark Spaces: The vibrant blue backlit LCD ensures you can read your pressures clearly in lofts, cellars, or under counters
• Rugged Construction: Features a matte chrome finish and easy-grip knobs that feel premium and withstand daily abuse

Key Features:

• Compact black anodised aluminium block with matte chrome fittings
• Front-mounted hose holders for precise calculations in the palm of your hand
• Massive refrigerant library: Switch between 91 gases instantly
• Unit conversion: Toggle between bar, psi, MPa, and kPa with a button press
• Large 4-digit blue backlit LCD display
• Visual diagnostics: Includes a large sight glass for quick visual refrigerant checks
• Displays alarm indication when over range
• Celsius or Fahrenheit designation
• Low battery warning on LCD screen
• Easy to grip knobs
• Battery efficient: Runs on a standard CR2450 coin cell (approx. 6 months battery life) with auto-off
• 3 x 60" (150cm) high pressure hoses included

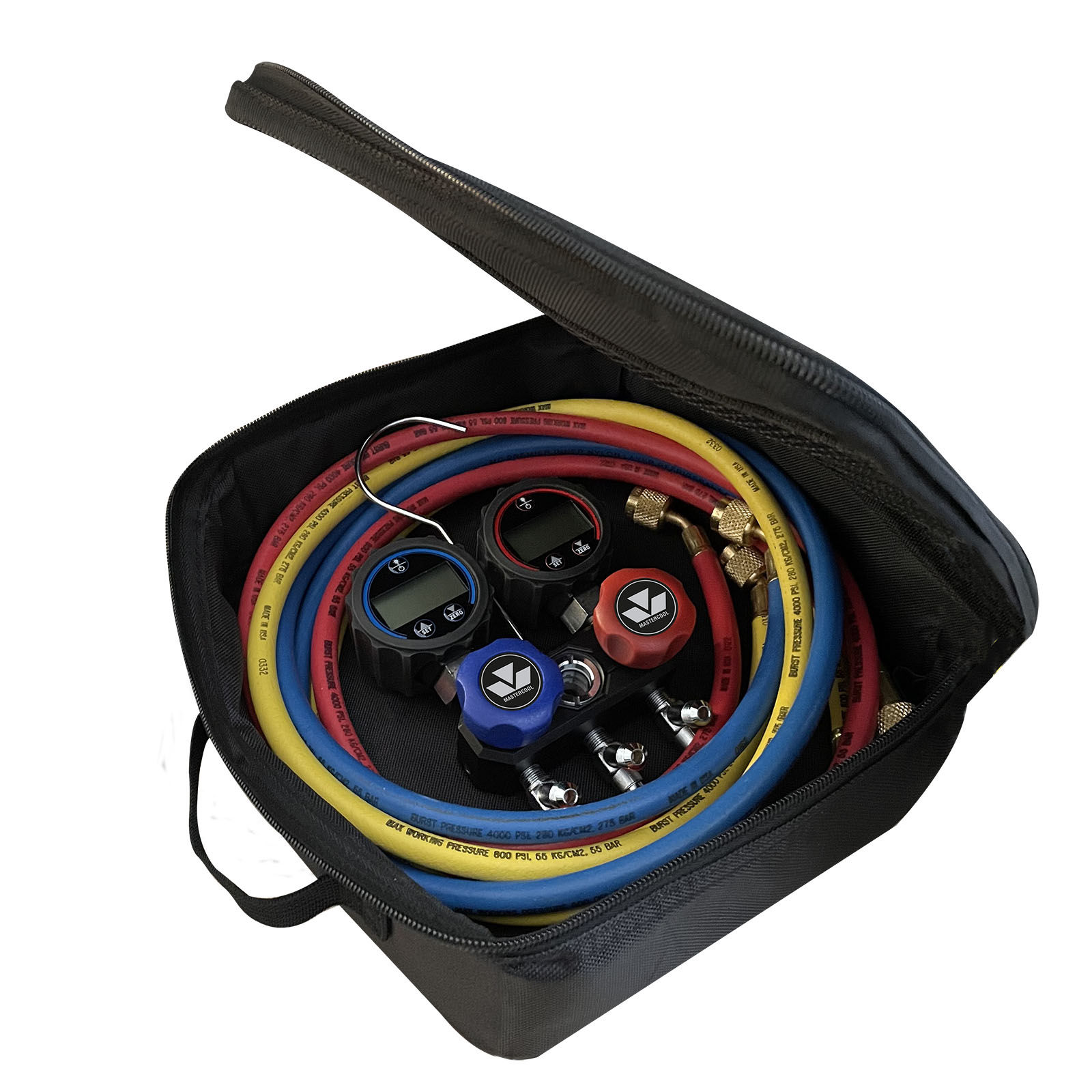

• Zippered carry case included

Included Refrigerants (91):

R12, R1234yf, R1234ze, R124, R125, R134a, R141B, R142B, R413A, R152A, R21, R218, R22, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R408A, R409A, R409B, R410A, R410B, R412A, R413A, R414A, R414B, R415B, R416A, R417A, R419A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R423A, R427A, R437A, R438A, R441A, R442A, R443A, R444A, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R454C, R455A, R470B, R471A, R472A, R50, R500, R502, R503, R504, R507A, R508A, R508B, R509A, R513A, R515B, R600, R600a, R601, R601a, R740, R744

Specifications:

• Model: 94661
• Type: Compact 2-way digital manifold gauge set
• Refrigerants: 91 profiles (includes R32, R1234yf, R290, R454B, R410A, R134a, R600a, and more)
• Fittings: 1/4" SAE Flare (Standard HVAC)
• Pressure Range (Low): -14.5 to 500 psi (-0.1 to 3.4 MPa)
• Pressure Range (High): -14.5 to 800 psi (-0.1 to 5.5 MPa)
• Resolution: 0.5 psi / 0.01 bar
• Accuracy: ±0.5% FS
• Measurement Units: MPa, kPa, bar, psi, kg/cm², inHg
• Temperature Unit: °C/°F
• Over Range Alarm: Display -OL-
• Operating Temperature: -10°C to 60°C
• Battery: CR2450 (included)
• Battery Life: Approximately 6 months
• Sampling Rate: 1 second
• Low Battery Indication: Icon on LCD
• Display: 30mm x 17mm LCD
• Blue Backlight: Auto-off after 6 seconds
• Hoses: 3 x 60" (150cm) high pressure hoses
• Case: Zippered carry case

Applications:

• R32 heat pump service
• R410A air conditioning systems
• R454B low-GWP refrigerant systems
• R290 (Propane) natural refrigerant applications
• R600a domestic refrigeration
• Multi-refrigerant system diagnostics
• Refrigerant charging and recovery
• Professional HVAC/R work

Benefits:

Compact black anodised aluminium block with matte chrome fittings offers an extremely portable solution to fit the needs of every busy technician. Front-mounted hose holders allow for precise calculations in the palm of your hand - perfect for tight workspaces. Large 4-digit blue backlit LCD display provides vibrant readings in even the darkest of environments. Easily perform pressure/temperature calculations for up to 91 different refrigerants including the critical UK gases: R32, R454B, R290 (Propane), and R600a (Isobutane). Unit conversion between MPa, kPa, bar, psi, kg/cm², and inHg ensures compatibility with any measurement system. Displays alarm indication when over range, Celsius or Fahrenheit designation, and low battery warning directly on the LCD screen. Large sight glass allows for quick visual refrigerant checks. Easy to grip knobs ensure comfortable operation. Complete kit includes 3 x 60" (150cm) high pressure hoses for immediate use. Zippered carry case keeps equipment organised and protected. Essential tool for professional HVAC/R technicians working with modern refrigerants.

Also Available:

• 94103: Compact Manifold with gauges only
• 94261: Compact Manifold with 3 x 60" (150cm) high pressure hoses with ball valves
• 94261-JT: Compact Manifold with 3 x 60" (150cm) in-line ball valve hoses (5/16" fittings for R410A/R32)

Black Series compact 2-way digital HVAC manifold. 91 refrigerants including R32, R454B, R290. Blue backlit LCD. 60" high pressure hoses included. Zippered case. Professional quality.
