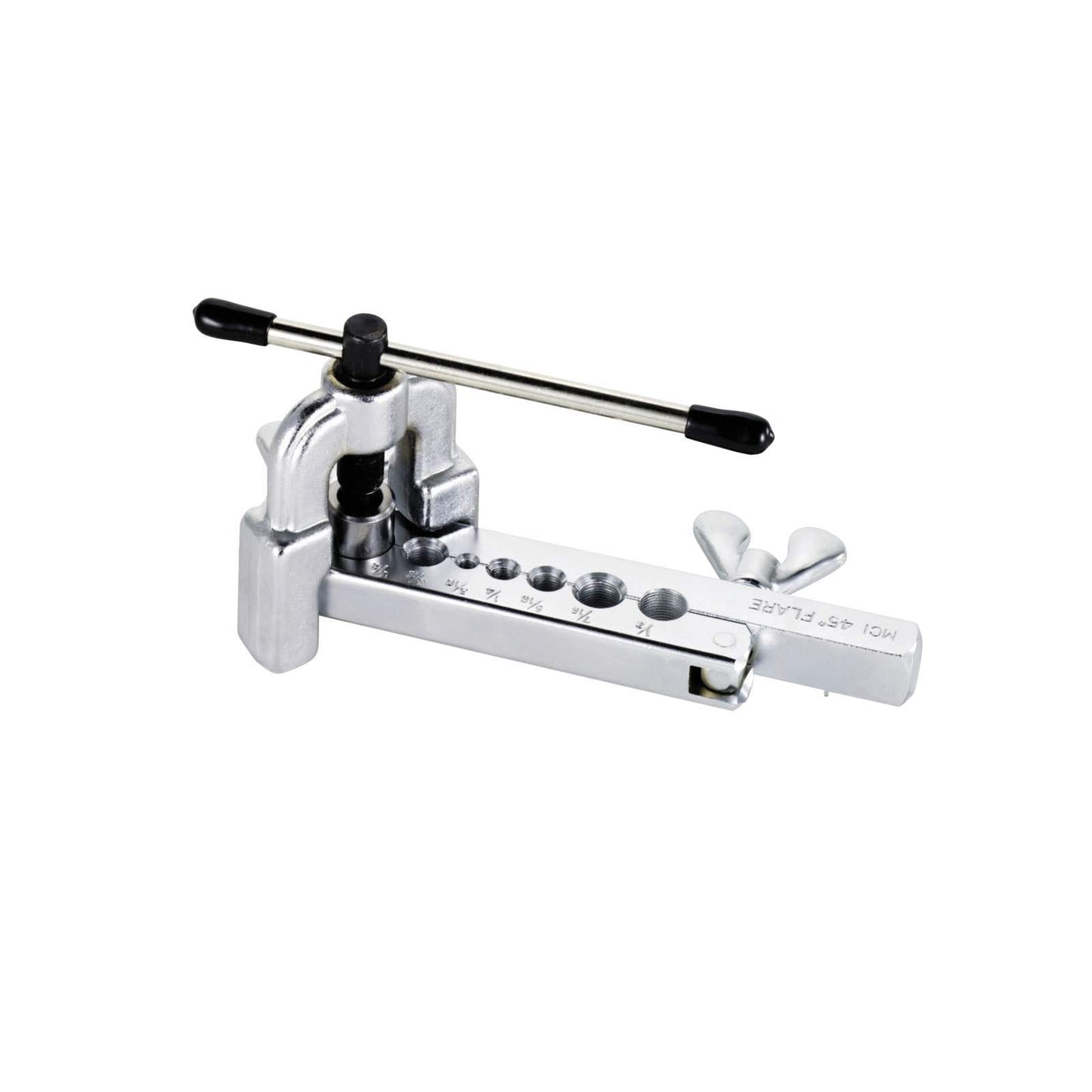

Mastercool 70051 — Standard 45° Flaring Tool for Imperial Tubing

Professional 45° flaring tool for imperial copper tubing (3/16" to 5/8" O.D.). Features forged steel yoke, auto-centering cone, and bearing-driven operation for perfect, leak-free flares every time. Essential tool for refrigeration and air conditioning installations.

Key Features:

• 7 Imperial Sizes – 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8" O.D.
• Forged Steel Yoke – Heavy-duty construction for long service life
• Auto-Centering Cone – Ensures perfect flare alignment
• Bearing-Driven – Smooth operation with minimal effort
• 45° Flare Angle – Industry-standard SAE flare
• Professional Quality – Built to exacting standards
• Compact Design – Easy to transport and store

Specifications:

• Model: 70051
• Flare angle: 45°
• Tube sizes: 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8" O.D.
• Number of sizes: 7
• Yoke material: Forged steel
• Cone type: Auto-centering, bearing-driven
• Weight: 10 kg
• SKU: 70051
• HS Code: 82055900

Metric Version Available:

• 70051-M — Metric 45° Flaring Tool (7 metric sizes)

Eccentric Flaring Tools:

For double-flaring and ISO flares, consider eccentric flaring tools:

• 70057-A — Eccentric Flaring Tool (6 imperial sizes)
• 70057-AM — Eccentric Flaring Tool Metric (7 sizes)
• 70057-M — Eccentric Flaring Tool Metric (7 sizes)

Complete Flaring Tool Kits:

• 70058-A — Eccentric Flaring Tool Kit with Tube Cutter & Reamer
• 70058-M — Eccentric Flaring Tool Kit Metric Complete
• 70058-AM — Eccentric Flaring Tool Kit Metric
• 70091 — 45° Flaring & Cutting Tool Set (Complete Kit)
• 70092-M — Metric Flaring, Double Flaring & Cutting Tool Set

Applications:

• Air conditioning refrigerant line connections
• Refrigeration copper pipe flaring
• Heat pump installations
• Brake line flaring (automotive)
• Hydraulic line connections
• Gas line installations
• HVAC service and repair

What is a 45° Flare?

A 45° flare (also called SAE flare) is the industry-standard connection method for refrigeration and air conditioning systems. The flared end of the tube creates a metal-to-metal seal when compressed by a flare nut, providing a leak-free connection that can withstand high pressures and temperature extremes.

How to Use:

1. Cut tube to length and deburr inside and outside edges
2. Slide flare nut onto tube (before flaring!)
3. Insert tube into appropriate size hole in yoke
4. Adjust tube height so it's flush with top of yoke
5. Position auto-centering cone over tube
6. Turn handle clockwise to create flare
7. Continue until flare reaches edge of yoke
8. Remove cone and check flare quality

Perfect Flares Every Time:

• Auto-Centering – Cone automatically centres on tube
• Bearing-Driven – Smooth, consistent pressure
• Forged Steel – Won't flex or distort under pressure
• Precise Sizing – Each hole machined to exact specifications

Maintenance:

• Keep yoke and cone clean and free from debris
• Lubricate cone threads occasionally with light oil
• Store in dry location to prevent rust
• Inspect cone for wear or damage regularly
• Replace if cone becomes worn or damaged

Professional Quality: Mastercool flaring tools are manufactured to professional standards for perfect, leak-free flares in demanding HVAC/R installation and service environments.
